ID: 230
Open
Description
PARTE # 2AM-410 - TROMPO/PULIDOR CON ALIMENTADOR INTEGRADO PARA MOLDURAS RECTAS Y CURVAS
Shaper Motor: 7.5 HP Belt Driven
Shaper Spindle Speed: 4000-7000 rpm
Shaper Spindle: 1-¼" Dia.
Sander Motors: 1.5 HP Direct Drive
Sander Spindle Speed: 400-1800 rpm
Sander Spindles: 1" Dia. by 4" Tall
Voltage: 208-240V 3ph, 30A
208-240V 1ph, 40A
440V 3ph, 15A
Conveyor: 6" Wide, 4 rows of tires
Vertical Adjustment: Yes, with digital counters
Horizontal Adjustment: Yes, with digital counters
Sanding Wheel Tilt: 60º Forward; 40º Back
Fence: 5 adjustable stops
Table Height: 36 inches
Size: 75" x 36" x 54"
Weight: 1325 lbs
Plantilla Centradora para curvas - opcional

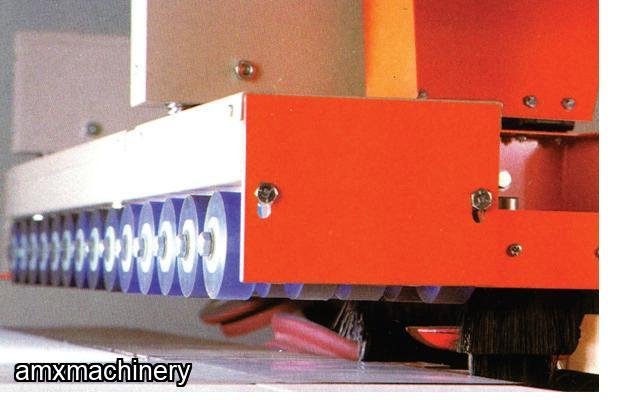

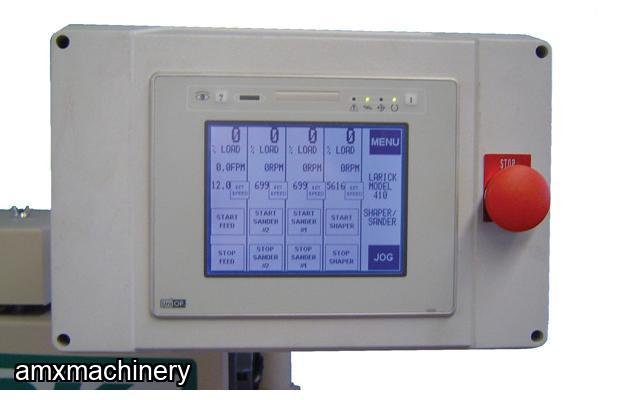

Designed and manufactured to give years of dependable service, the Larick 410 will shape and sand a wide variety of workpieces. Features include a 6" wide feed chain with four staggered rows of hold down tires; front adjusting handwheels with digital readouts for horizontal and vertical shaper and sander positions; AC inverter controlled variable speed for shaper, sanders, and feed featuring digital readouts for speed and load; floating heads are optional which allow shaping and sanding of arched panels. The user friendly design makes setup and profile changeovers quick and easy.
