Identificador: 1284
Abierta
Descripción

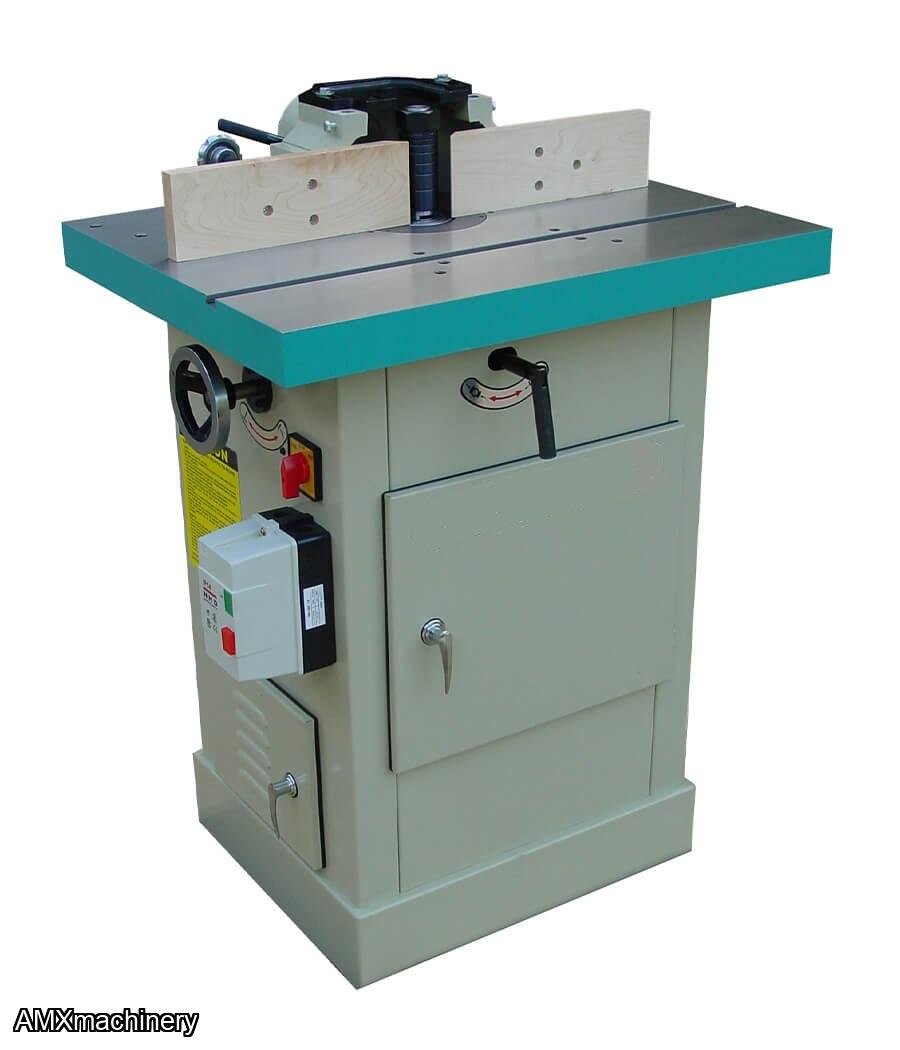

PARTE: 2EX-ET-100 – TROMPO – MOTOR 5 HP – FLECHAS ¾ Y 1-1/4”
Nuevo con garantia
The ET-100 is a powerful and fully customizable machine at a reasonable price. With the optional sliding fence and interchangeable spindles, this machine is a real asset to any shop.
2 spindle speeds: 7,500 and 10,00 RPM
Interchangeable spindles
Reversable
Magnetic starter
micro adjustable fence
Table inserts for multiple cutter diameter
Front and side access panels
Spindle lock
Replaceable hardwood infeed and outfeed fence assembly
Optional sliding table attachment
STD. NEMA size electrical controls
Horsepower: 5HP
Voltage: 230V or 460V
Phase(s): 1PH or 3PH
Main Motor: 5 HP
Spindle RPMs: 7.5 / 10K
CFM Requirements: 480
Table Size: 29" x 23"
Max Diameter: 6"
Spindle Travel: 2-9/16"
Included Spindles: 3/4, 1-1/4"
3/4" Spindle: 2-15/16"
1-1/4" Spindle: 4"
Included Collet Adapters: 1/2"
Interchangeable Spindles: Yes
Sliding Table Travel: 20"
Amps: 15
Weight: 400 lbs
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
LIJADORA DE BANDA HORIZONTAL
PARTE # 1N-LIJ-020 - LIJADORA DE BANDA CON MESA MOVIBLE – MOTOR 5 HP, 220V, 3 FASES, MESA 31”X 102”INDUSTRIAL PARA USO RUDOLIJADORA DE BANDA CON MESA MOVIBLEDIMENSIONES MESA: 31" X 102-3/8"CURSO HORIZONTAL DE LA MESA: 31-1/2"DIAMETRO DE LAS POLEAS: 12"ANCHO DE LAS POLEAS: 6-1/2"LOGITUD DE LA LIJA: 7.20 MTSVELOCIDAD DE LA LIJA: 1100 MTS/MINDISTANCIA ENTRE CENTROS POLEAS: 3,100MMROTACION POLEAS: 1150 RPMMOTOR: 5 HP, 220V, 3 FASESMOTORES OPCIONALES 110/220V, 1 FASEMEDIDAS MAQUINA: 300 CM LA...
AMXmachinery
PARTE: 2TA-PT-2024HF – PRENSA DE TABLEROS - ALTA FRECUENCIA 20” X 24”
PARTE: 2TA-PT-2024HF – PRENSA DE TABLEROS - ALTA FRECUENCIA 20” X 24”New with warrantyFor mass productions, 2 to 3 minute per cycle for drying or bending the wood projectVarieties of wood bending shapes are able to produce.Press one large part, slicing into many small pieces for high productivity.Meet all kinds of furniture fabrications.One high frequency generator could output two wood-bending presses, or one output four wood-bending presses to achieve continuous mass production.Using woo...
AMXmachinery
LINEA DE CARDADO OPEN END
PARTE:
12133 – LINEA DE CARDADO OPEN END
ACONDICIONAMIENTO, PREPARACIÓN, CARDA Y CONTINUACONTACTENOS PARA MAS INFORMACION Y FOTOS
AMXmachinery
BATIDORA - 240 KG CAPACIDAD
PARTE: 11757 - BATIDORA - 240 KG CAPACIDAD
6 - BATIDORA. BATIDORA MARCA IND. G.H. ACCIONADA POR
UN MOTOR DE 3 HP Y MOTORREDUCTOR DE 15 HP CON CAPACIDAD DE BATIDO DE 240 KG POR
PREPARACION.
