Identificador: 975
Abierta
Descripción

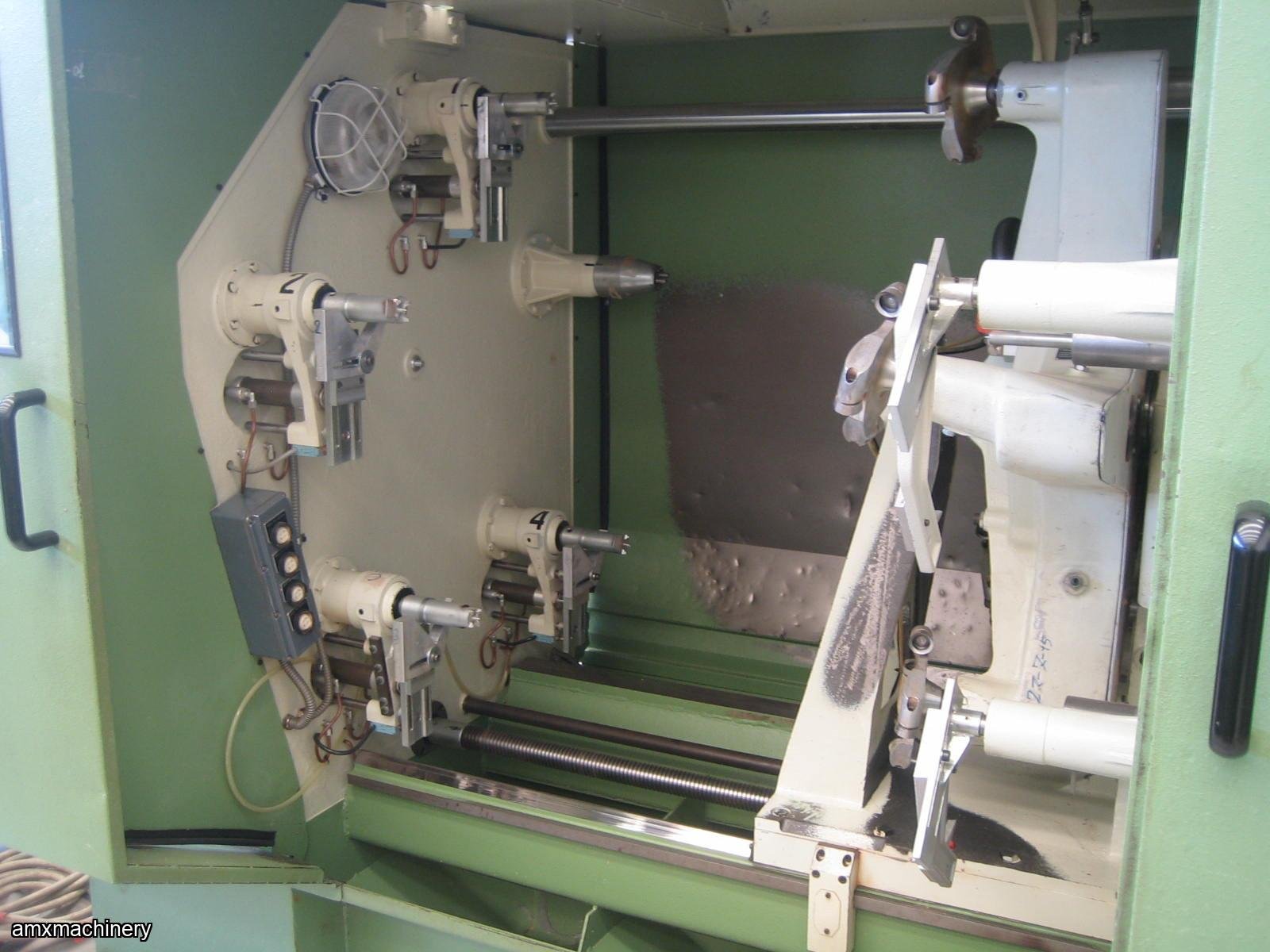

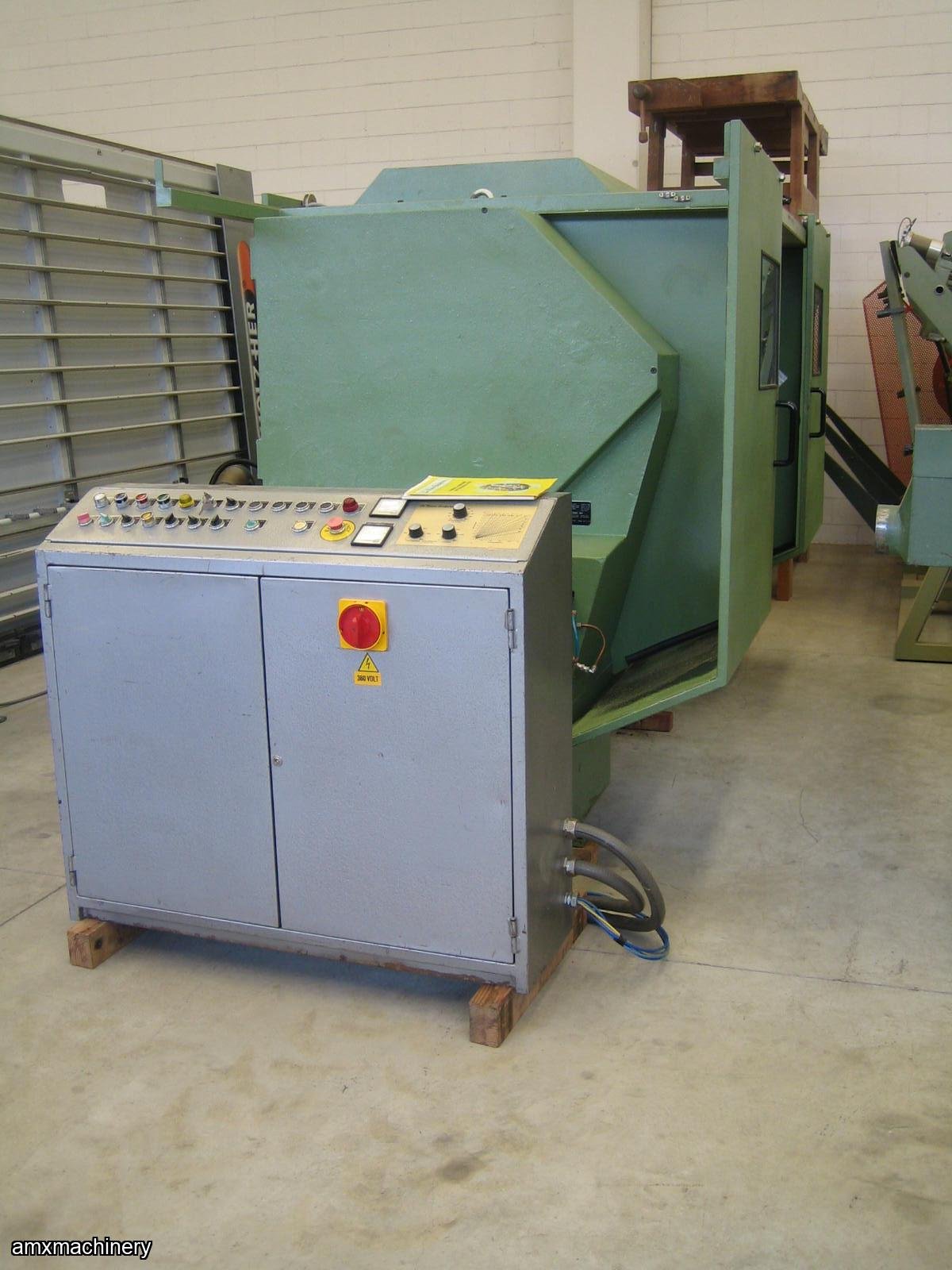

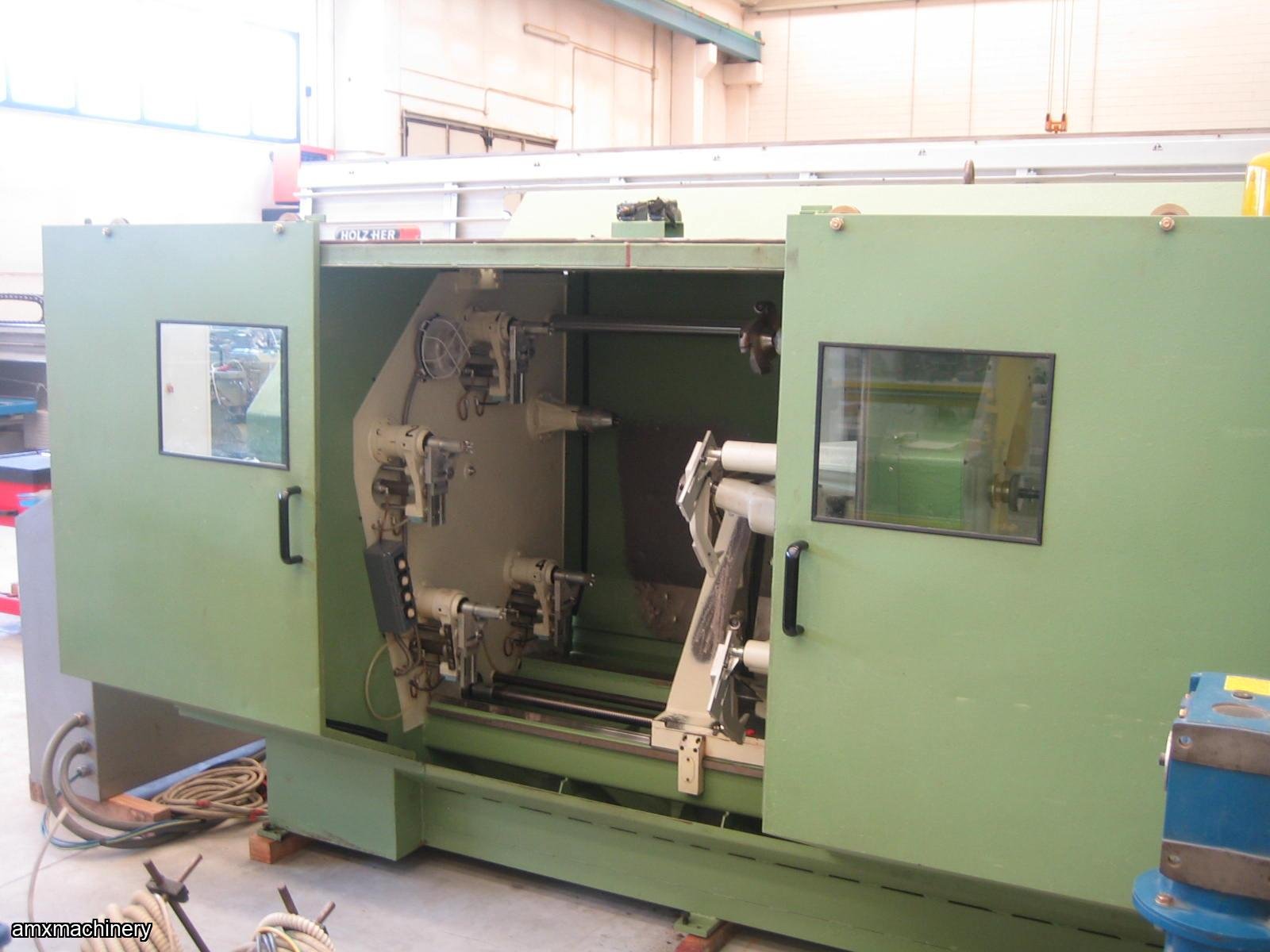

PARTE: 12138 – TORNO PARTES IRREGULARES AUTOMATICO
USADO – BUENAS CONDICIONES

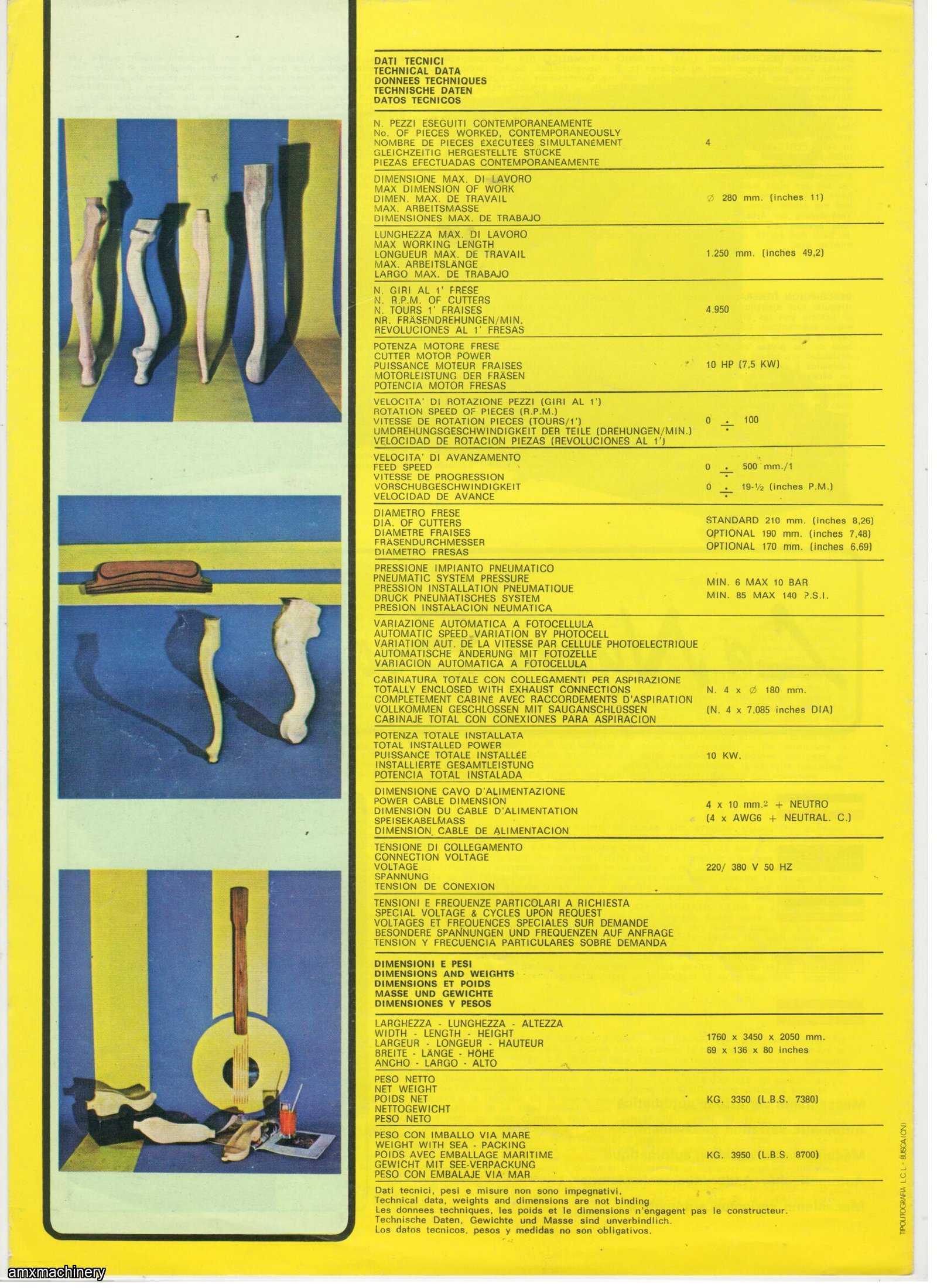

4 pieces worked contemporaneously
max. diam. of work mm. 280
max. working length mm. 1250
cutters rpm 4.950
cutter motor power Hp 10 ( 7,5 Kw )
rotation speed of pieces rpm ( min.0 / max.100 )
feed speed mm./1 ( min.0 / max. 500 )
diam. of cutters mm. 210
pneumatic system pressure 6/10 bar
totally enclosed
total installed power Kw 10
connection voltage Volt. 380 / Hz 50
net weight kgs. 3350
overall dimension mm. 3450 x 1760 H=mm.2050
