Descripción

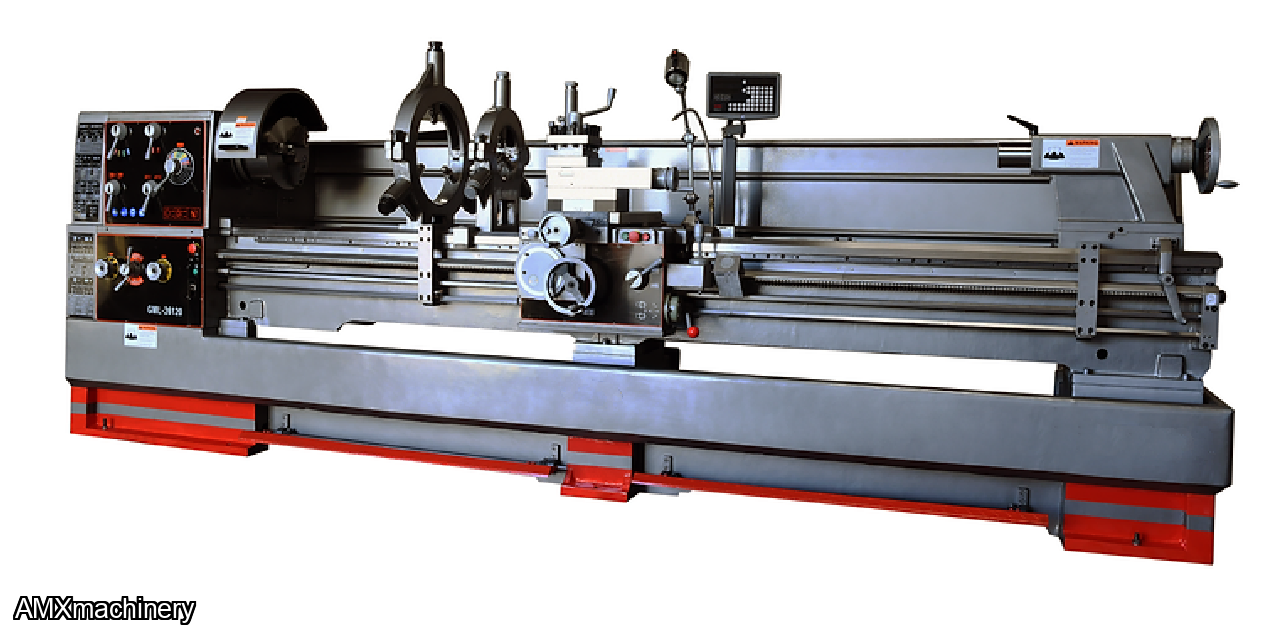

TORNO 32'' X 160'' 15 HP PARTE: 2GM-GML-32160
Heavy Duty Precision Gap Bed Lathe 32” x 160” 4-1/8” bore, 15HP Motor.
- ISO 9001 certified
- Large spindle bore 4-1/8”
- 4-way rapid traverse on Longitudinal and cross ways
- All dual inch/metric dials.
- Solid cast iron machine base
- Heavy Duty main motor 15 HP
- 12 spindle speeds from 25-1,600 rpm
- 54 kinds of inch threads and metric threads
- Threading and feeding rate change by levers
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Tools box with leveling pads
Max. swing over bed | 32” |
Max. length of workpiece | 160” |
Max. swing over cross slide | 26-7/16” |
Max. Swing in gap | 46-1/2” |
Width of Bed | 16” |
Effective length in gap to spindle | 10” |
Effective length in gap to chuck jaws | 7” |
Spindle bore | 4-1/8” , D1-8 |
Taper of spindle center | MT#5 with1:20 reducing sleeve |
Spindle speeds | 25-1,600 rpm / 12 steps |
Longitudinal feeds | 0.0016-0.055 IPR, 60 kinds |
Cross feeds | 0.0008-0.027 IPR, 60 kinds |
Inch threads | 80-7/16”TPI, 54kinds |
Metric threads | 0.45-120 mm , 54 kinds |
