Descripción

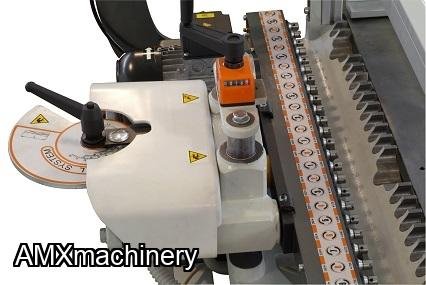

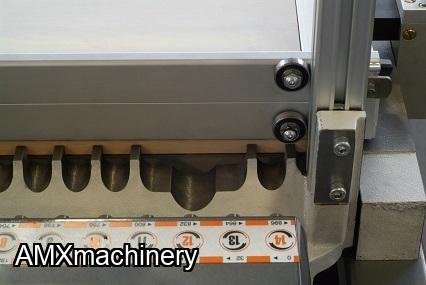

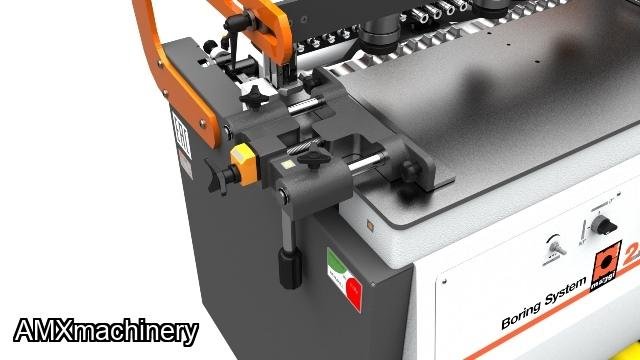

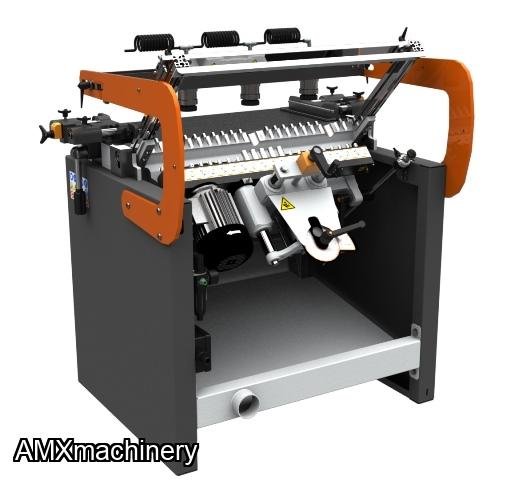

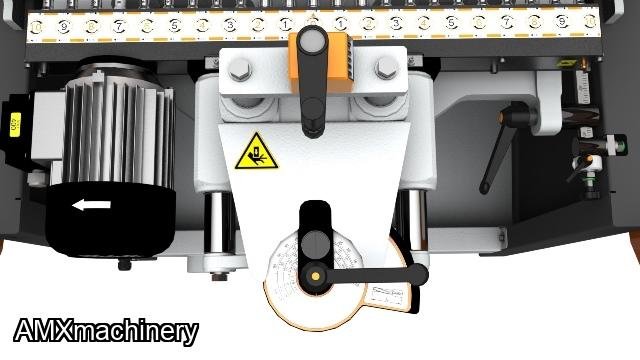

PARTE: 2JG-MAG-SYSTEM29 - TALADRO MULTIPLE - SISTEMA 29
Provides a 29 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.
- Accurate positioning of the boring unit to the table with digital readout.
- 0 to 2.5" adjustable drilling depth with patented spiral setting device.
- (3) patented quick release material clamps with auto-setting to firmly hold material to table.
- Powerful 2 HP motor.
- 47" x 13" cast iron table.
- Side fences with mechanical digital readout for quick and accurate setting.
- 120" line boring fence with (4) stops.
- Foot actuated pneumatic clamps and drill cycle.
- Includes: Magnetic Starter with overload protection and (29) quick change chucks.
- Dust Outlet: 3"
- Voltage: 230V 3-Phase
- Net weight: 705 lbs.
- Dimensions: 59.3" x 37.8" x 50" Tall.
- Crated Dimensions: 59.8" x 37.4" x 40.5" Tall.
- Crated Weight: 815 lbs.
- Call for LTL Freight pricing outside the Continental United States at 919-776-8341.
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
SIERRA MULTIPLE DE VAIVEN
PARTE: 2TA-TRS-150F - SIERRA MULTIPLE DE VAIVENFEATURESMinimum kerf multi blade frame saw designed to maximize production and minimize material loss.Thin frame saw design accepts different saw frames & blade combinations.Unique design allows multiple saw fence configurations to produce single, double or multiple cuts in a single pass.Machine supplied with PLC controller to allow operator to maximize saw production & minimize down time.Production times are reduced because of the machine's du...
AMXmachinery1

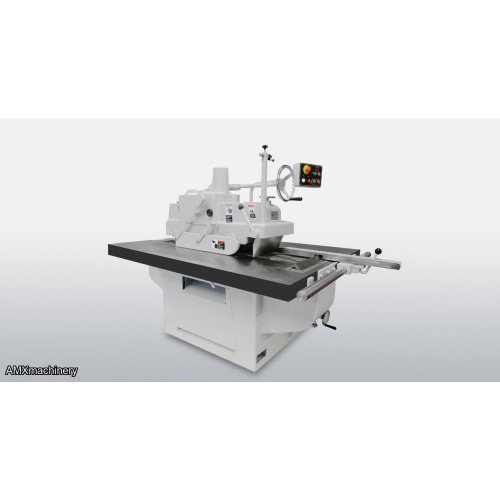

SIERRA MULTIPLE - 1 SIERRA
PARTE: 2CK-303SIs a straight line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material. Automatically feeds the material for consistent rip results. The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting. A powerful 10 HP motor with maximum 12” blade provides a cutting depth up to 3.35”. A micro adjustable infeed fence allows for quick setups to ensur...
AMXmachinery1
MAQUINA DE PASADORES
MAQUINA DE PASADORESHigh quality drilling and dowel insertion• Drilling from 4 sides : top, right, left, back• 2 step machine – drilling and doweling• Doweling from 2 sides (left and right)• Capacity of up to 18 pcs/min• Vertical magazine• One-man operatedExtra:• Side movement• Single drop magazine• Possibility to revers items out of the machine• Can be integrated in a line of machines• Waste ConveyerLength:160 – 1500 mm160 – 2200 mmHeight:10 – 40 mmWidth:25 – 250...
AMXmachinery1

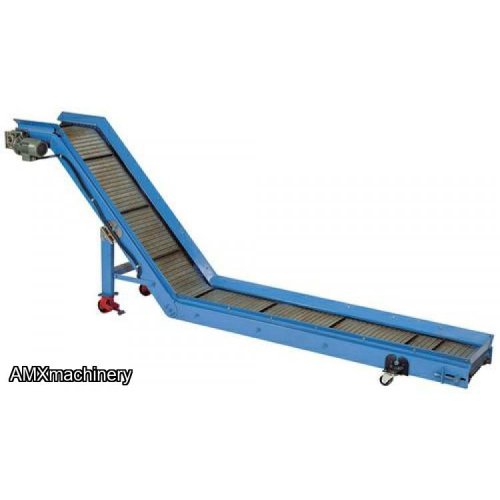

TRANSPORTADOR DE MATERIAL - MOTORIZADO AW
