Identificador: 1665
Abierta
Descripción
PARTE: 2JG-MAG-SYSTEM46 - TALADRO MULTIPLE - 46 DOBLE FILA
Provides (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32" (704 mm).
- Front end adjustment for quick and easy set-up.
- (2) 1.5 HP 2,800 RPM motors; max.
- Boring depth is 2-1/16" (55 mm).
- Side depth counter system; extractable 400 mm support rollers for long panels.
- Maximum distance between heads is 25-19/32" (650 mm) and minimum width is 5-1/8" (130 mm).
- Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps
- This machine can be used for single or double row line drilling.
- Uses 24 LH (red) and 22 RH (black) boring bits.
- Working air pressure 94 psi.
- Voltage: 230V 3-Phase
- Net weight: 820 lbs.; Crated weight: 940 lbs.
- Call for LTL Freight pricing outside the Continental United States at 919-776-8341.
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
-500x500.png)
AMXmachinery1
COLECTOR DE POLVOS - 5HP
COLECTOR DE POLVOS - 5HP - 2CK-UFO103BIs ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters so it can be taken to where it is needed in the shop. HP generating 2863 CFMBase is mounted on casters s...
-500x500.png)
AMXmachinery1
CORTADORA DE METAL HIDRAULICA 4' x 10 Ga
CORTADORA DE METAL HIDRAULICA 4' x 10 Ga PARTE: 2GM-HS-0410MDTaiwan machinesISO 9001 certifiedHD all steel construction for maximum rigidityGerman logic quiet Rexroth hydraulic systemAdjustable stroke from 16-20 strokes per minute60” long squaring arm with inch / mm scaleSpring hold-downs High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom bladeFull length with full view finger ...
AMXmachinery1
SIERRA ESCUADRADORA - 5 PIES
PARTE: 2CK-P30Is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The machine has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displa...
-500x500.png)
AMXmachinery1

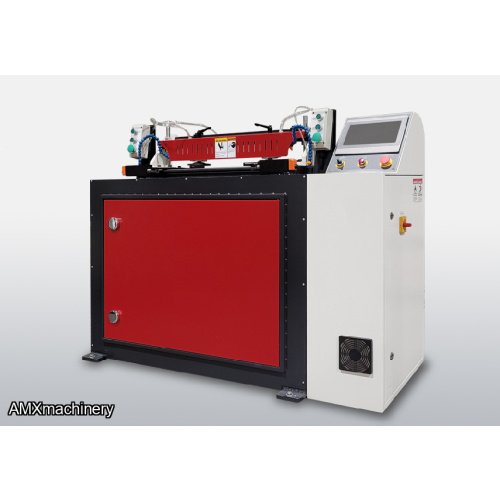

ENLAZADORA CNC
