SOLDADORA DE MADERA - ALTA FRECUENCIA

Weight

150 lbs

Dimensions

66 × 43 × 44 cm

Supply

240 volt / 50hz (standard 13-amp 3-pin plug)

Generator frequency

Nominal 27.2 Mhz

Curing speed

3 – 10 seconds per weld

Penetration

50mm effective

Output

0.5 – 0.6 amps at 2400 volts (internal HT) on load

Finish

Hardwearing powder coated finish

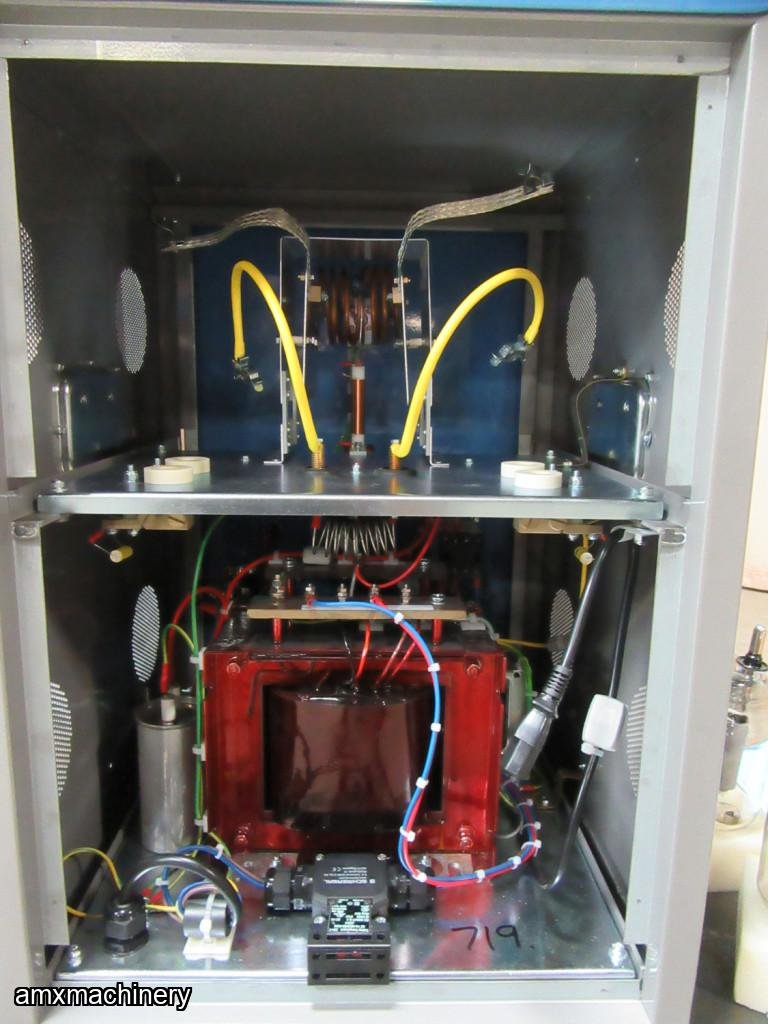

Electrical Safety

Cabinet and fittings are fully earthed. Cutout switch isolates main power if rear access panel is removed. 10 amp panel-mounted fuse for protection.

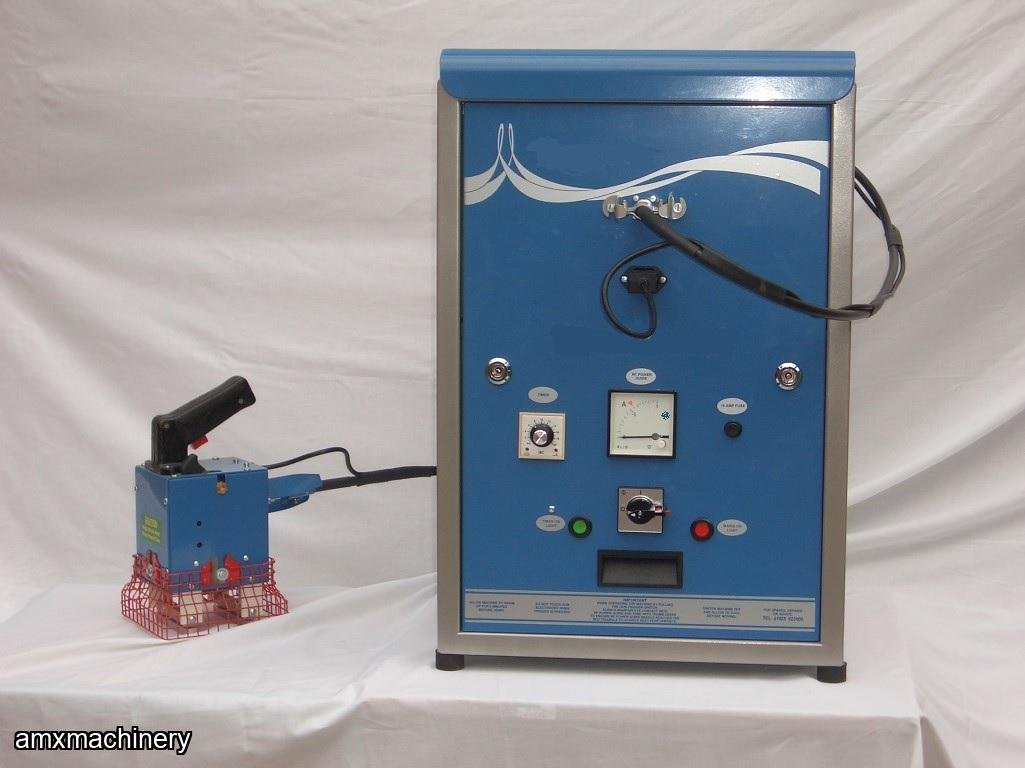

Hand gun specification

Lightweight, easy to use hand gun. Incorporates on/off trigger, thumb-operated fine tuning control and R.F. power indicator meter. Supplied with 2 sets of electrodes.

Servicing and maintainance

A comprehensive range of spares are available and can usually be delivered next day. Repairs can be carried out within 1 – 2 days.

Warranty

All new machines are covered by a standard 12-month warranty from the date of purchase.
