Descripción
PARTE: 2CK-PCS36
- Large cutting capacity from 2”x33” up to 12”x 12”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
KEY ADVANTAGES
- Available in Right-Hand & Left-Hand configuration
- Cut off capacity (thickness x width): 2″x33″, 4″x31″, 6″x29″, 8”x25”, 10”x20”, 12”x12”
- Powerful 20HP saw motor (25HP optional)

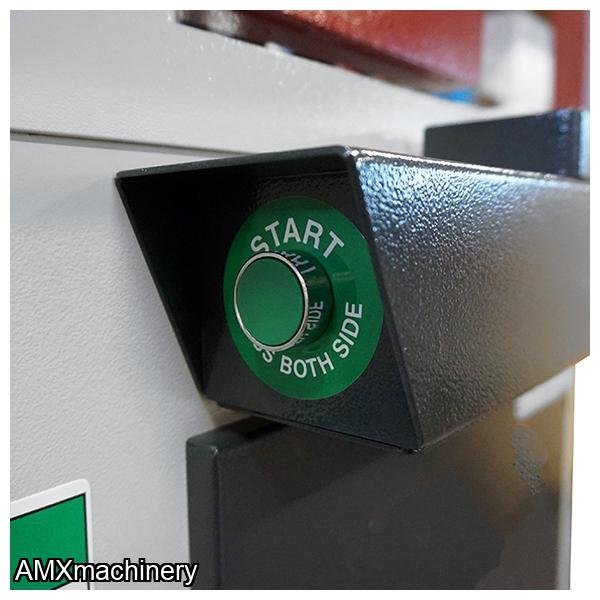

- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
- Adjustable cutting cycle from 10~15 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
|
Cutting capacity (thickness x width) |
2″x33″, 4″x31″, 6″x29″, 8”x25”, 10”x20”, 12”x12” |
|
Cycle speed |
10~15 strokes/min |
|
Cycle operation |
Pneumatic |
|
Saw blade size |
36” |
|
Saw arbor diameter |
2″ |
|
Saw blade speed |
1600 RPM |
|
Dust exhaust diameter |
Ø5″ x 2 |
|
Motor |
20 HP (25HP optional) |
|
Table size |
57.7″ x 34.6″ |
|
Net weight |
2464 lbs |
|
Gross weight |
2860 lbs |
