Descripción

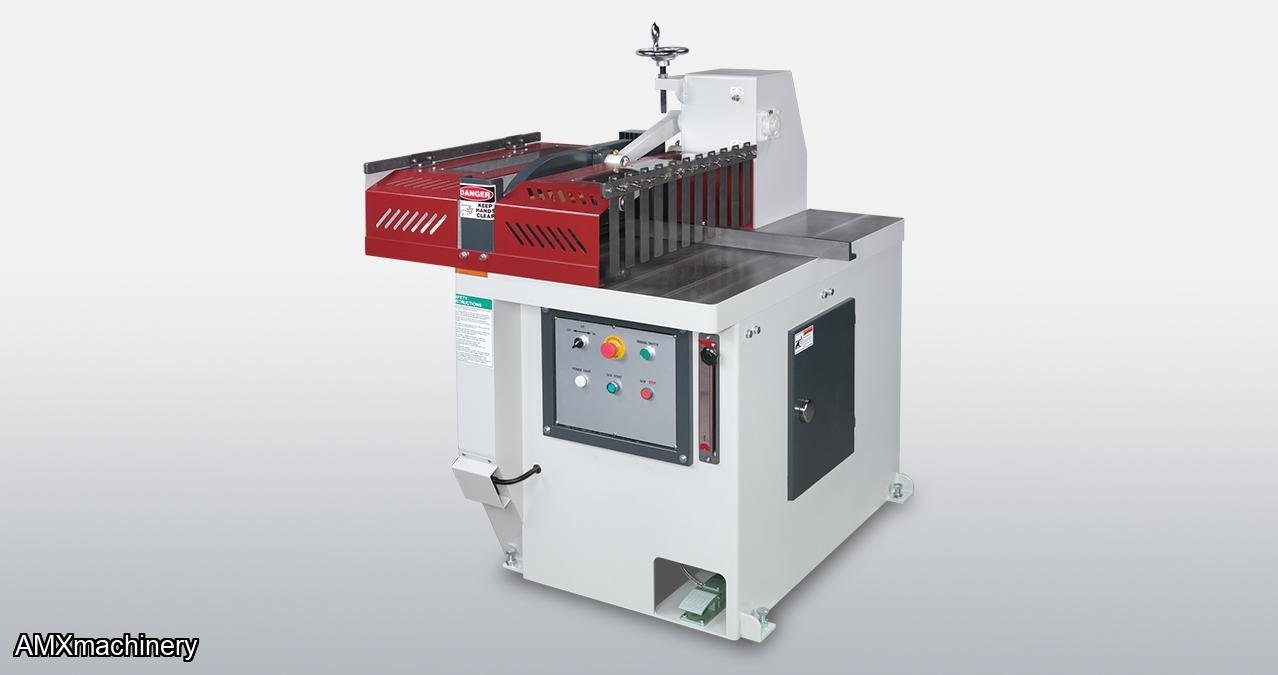

PARTE: 2CK-PCS30

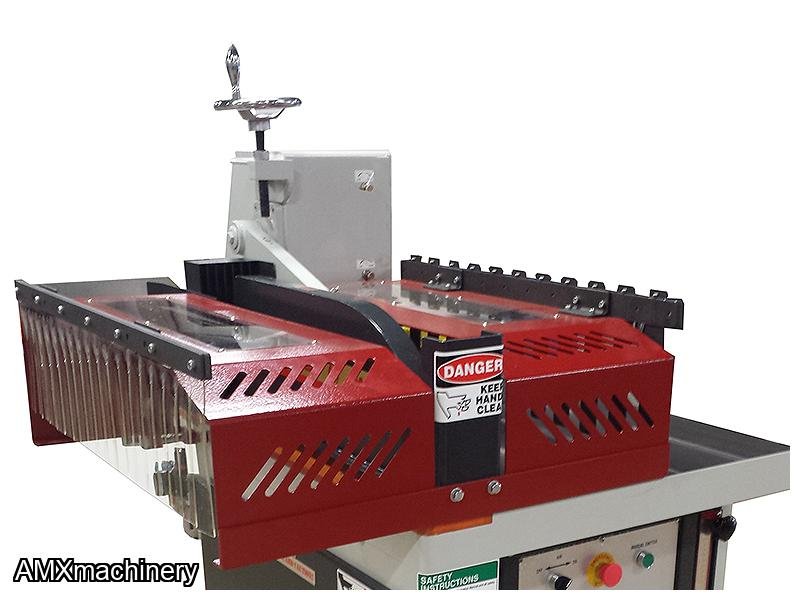

Is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful motor and adjustable cutting stroke ensure it can effortlessly cut through a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.
- Large cutting capacity from 2”x27” up to 10”x10”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
KEY ADVANTAGES
- Available in Right-Hand & Left-Hand configuration
- Cut off capacity (thickness x width): 2″x27″, 4″x24″, 6″x21″, 8”x16”, 10”x10”
- Powerful 15HP main motor (20HP optional)

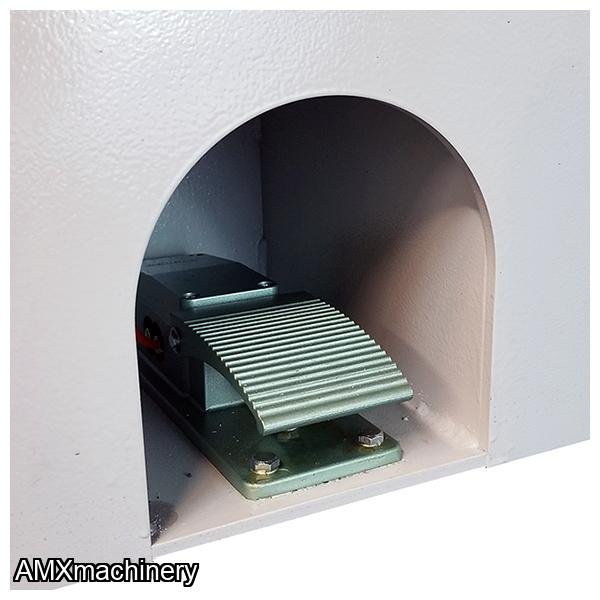

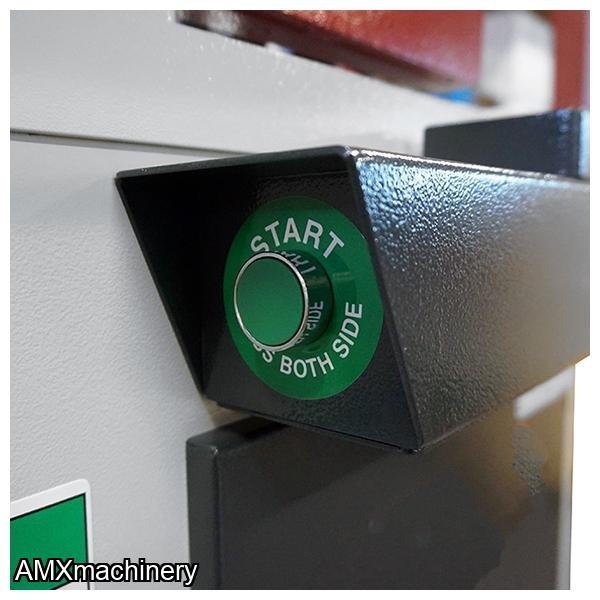

- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
- Adjustable cutting cycle from 10~ 15 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
|
Cutting capacity (thickness x width) |
2″x27″, 4″x24″, 6″x21″, 8″x16″, 10”x10” |
|
Cycle speed |
10~15 strokes/min |
|
Cycle operation |
Pneumatic |
|
Saw blade size |
30” |
|
Saw arbor diameter |
2″ |
|
Saw blade speed |
1600 RPM |
|
Dust exhaust diameter |
Ø5″ x 3 |
|
Motor |
15 HP (20HP optional) |
|
Table size |
50.2″ x 31.9″ |
|
Net weight |
1430 lbs |
|
Gross weight |
1694 lbs |
