Identificador: 357
Abierta
Descripción

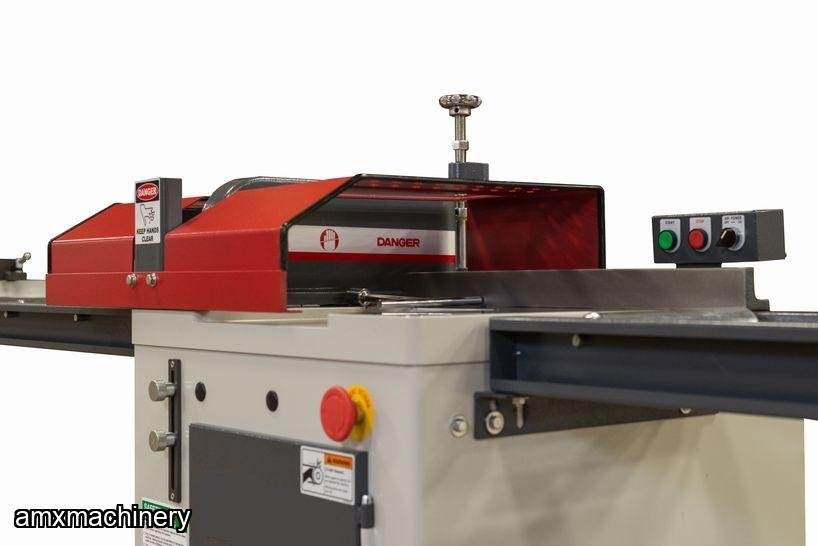

PARTE # 2NT-NTCS18L – SIERRA TRONZADORA – DISCO 18” – MOTOR 10 HP – IZQUIERDA – LEFT
PARTE # 2NT-NTCS18R – SIERRA TRONZADORA – DISCO 18” – MOTOR 10 HP – DERECHA – RIGHT - OPCIONAL
Nueva con garantia
FEATURES
Max cutting capacity: 2" x 12", 3" x 11", 4" x 10"
10HP motor, 3PH 230V with 24V magnetic controls
18” 120T Carbide tipped blade with included
1” Saw arbor diameter
Cycle operation: Pneumatic
Table size: 26” x 27.5”
Quick access on front of the machine to adjust blade stroke.
Dust requirements: (1) 4" dust port requiring 450 CFM at point of extraction
Net weight: 772 lbs.
Gross weight: 850 lbs.
Packing dimensions: (L) 41" x (W) 48" x (H) 56"
(1) Tool box and manual
Warranty is one year parts
All machines are tested stateside prior to shipment providing trouble free start up.
OPTIONS
8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
Custom infeed/outfeed rollers up to 60’
18" x 80T carbide tipped blade
18” x 100T carbide tipped blade
18” x 120T carbide tipped blade
(1) Gravity flip stop
Rigid stop
Double palm button actuation in place of foot pedal
Safety interlock for blade access
460V 3Ø electrics
