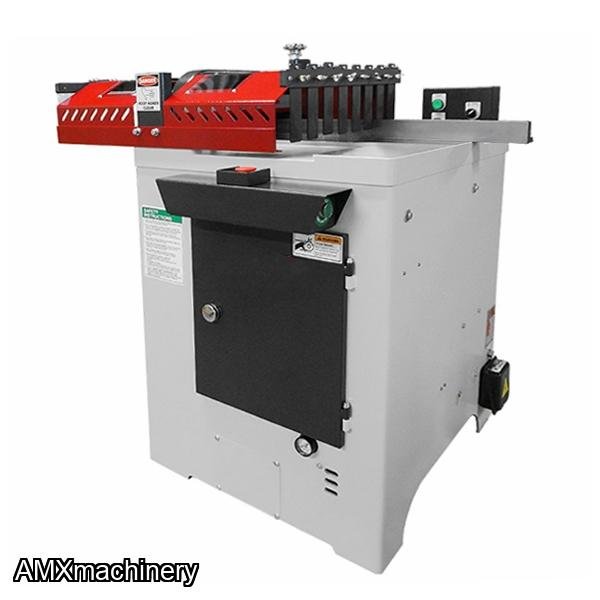

PARTE: 2CK-PCS18 – SIERRA TRONZADORA – 10 HP - DISCO 18” – IZQUIERDA
PARTE: 2CK-PCS18R – SIERRA TRONZADORA – 10 HP - DISCO 18” – DERECHA
- Large cutting capacity of 2”x12” up to 4”x10”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
- Available in Right Hand & Left Hand configuration

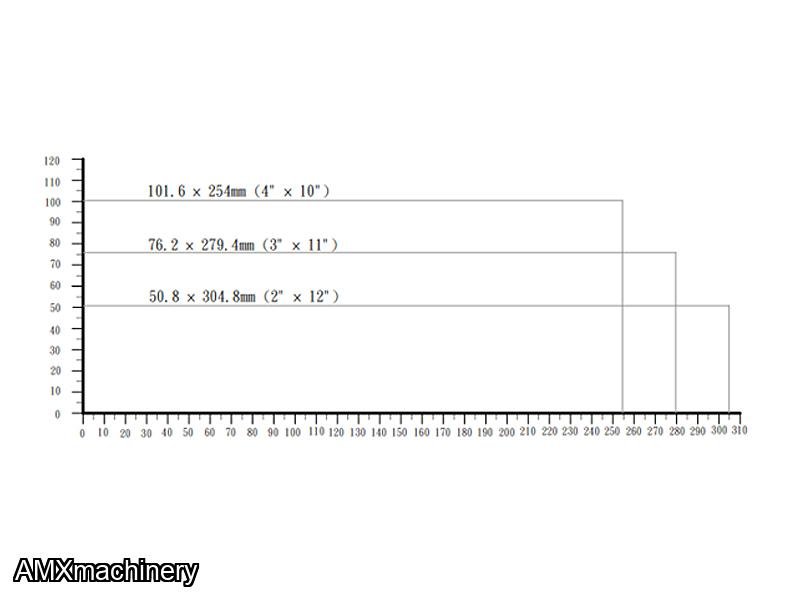

- Cut off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
- Powerful 10HP main motor
- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
- Fast cutting cycle with up to 45 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.

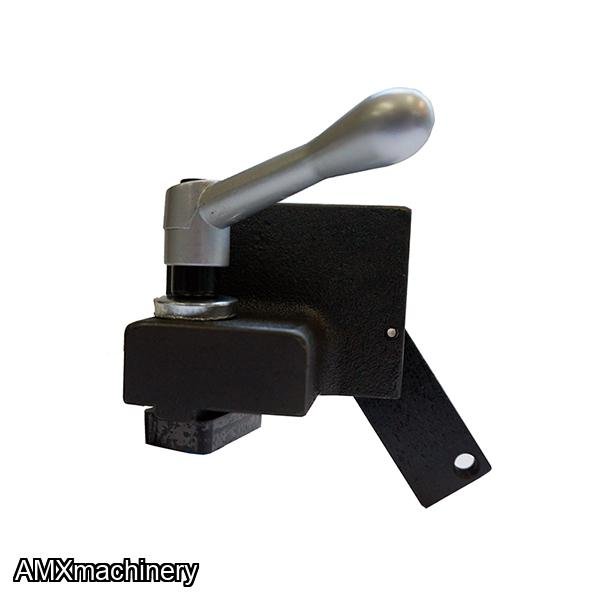

- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
Cutting capacity (thickness x width) | 2″ x 12″, 3″ x 11″, 4″ x 10″ |
Cycle speed | 45 strokes/min |
Cycle operation | Air |

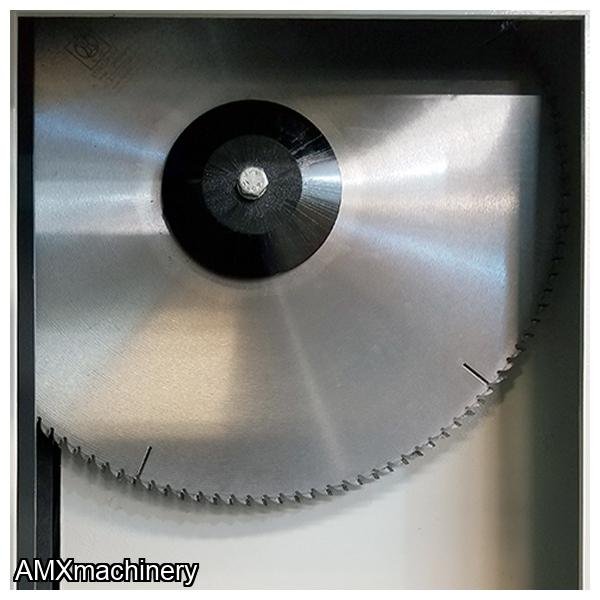

Saw blade size (optional) | 18″ |
Saw arbor diameter | 1″ |
Saw blade speed | 3600 RPM |

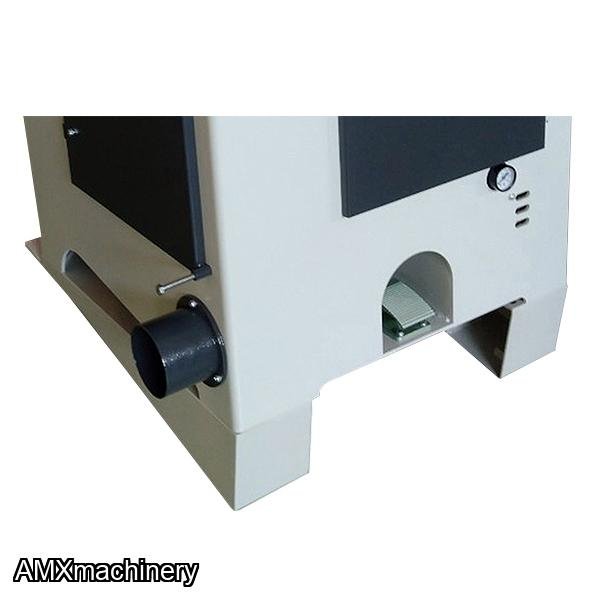

Dust exhaust diameter | Ø4″ |
Air | 9.8 CFM / 70-85 PSI |
Motor | 10 HP |
Table size | 26” x 27 ½” |
Net weight | 770 lbs. |
Gross weight | 902 lbs. |
Machine dimensions (LxWxH) | 42” x 27” x 48” |
Packing dimensions (L x W x H) | 37” x 33 ½” x 53.2” |

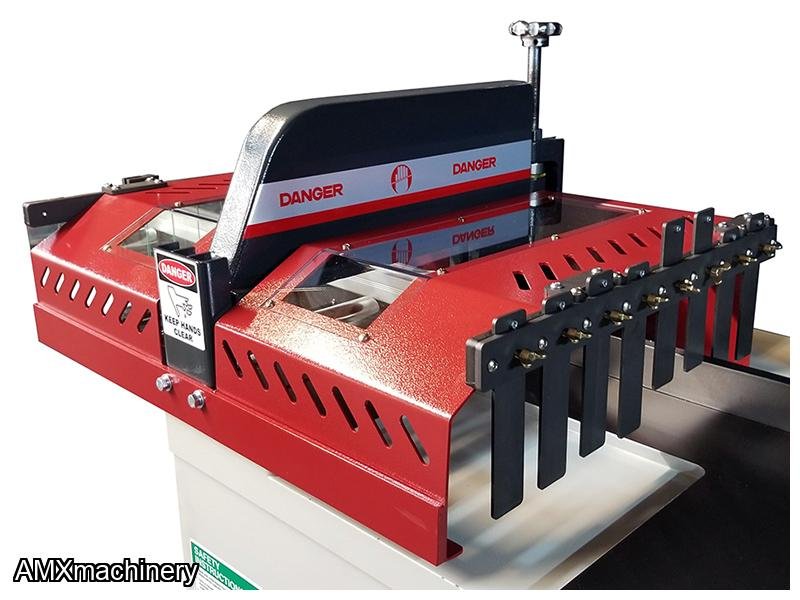

- Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
- Infeed guard has adjustable fingers to minimize opening
- Door safety limit switches with extended security bolt

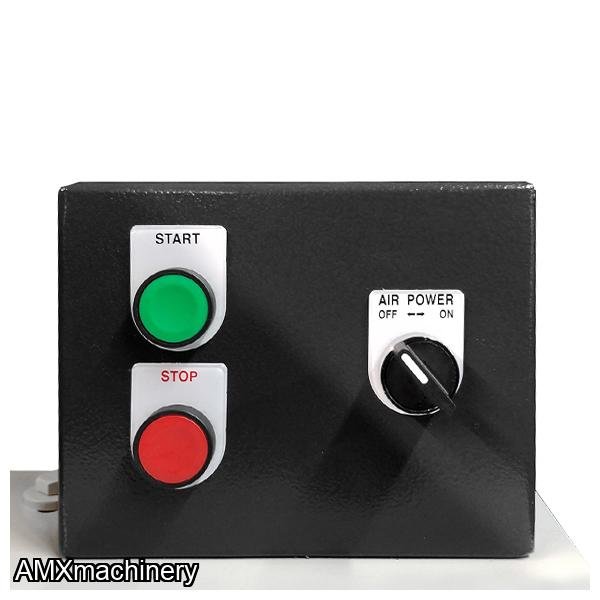

- Emergency stop button
- Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
