Descripción

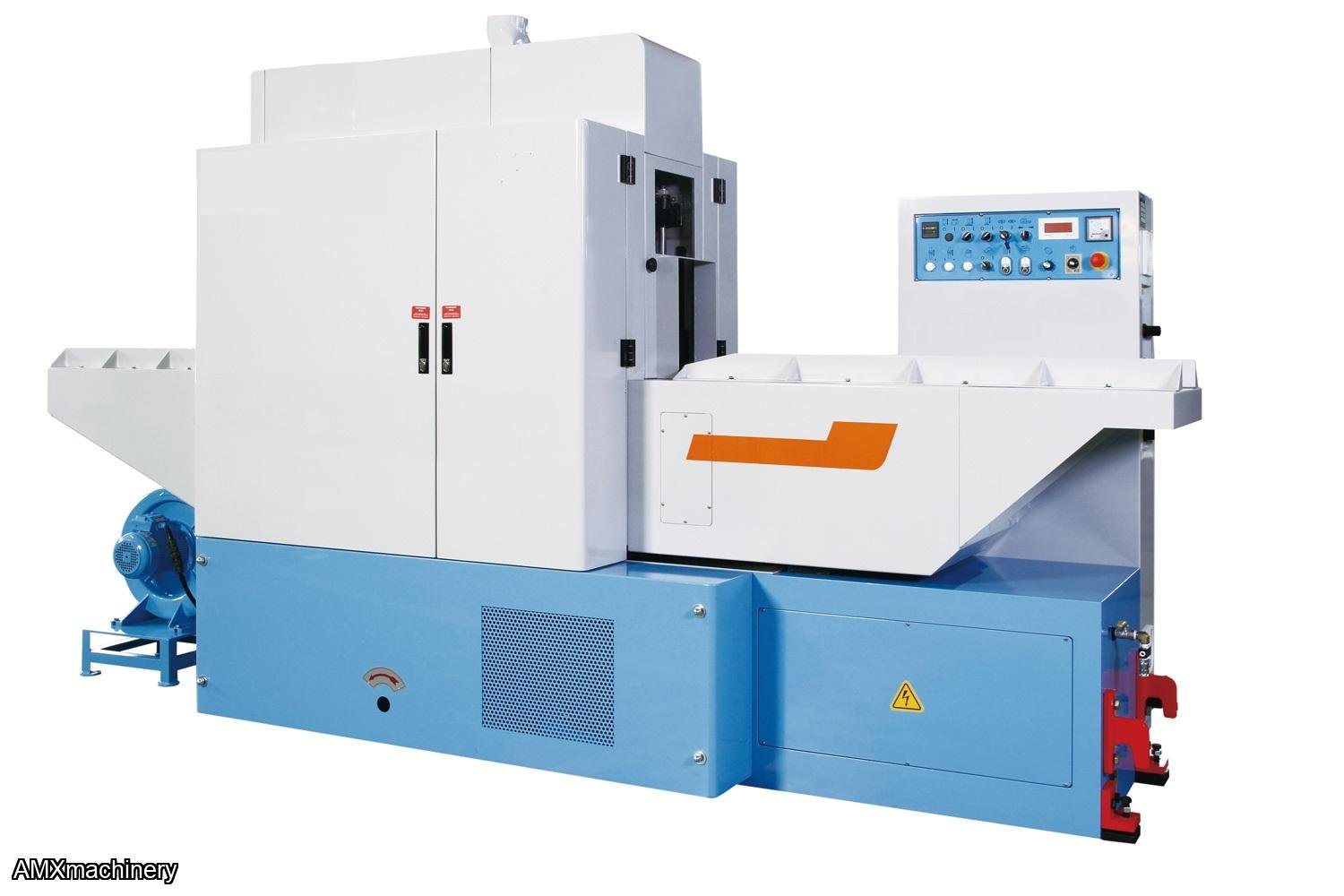

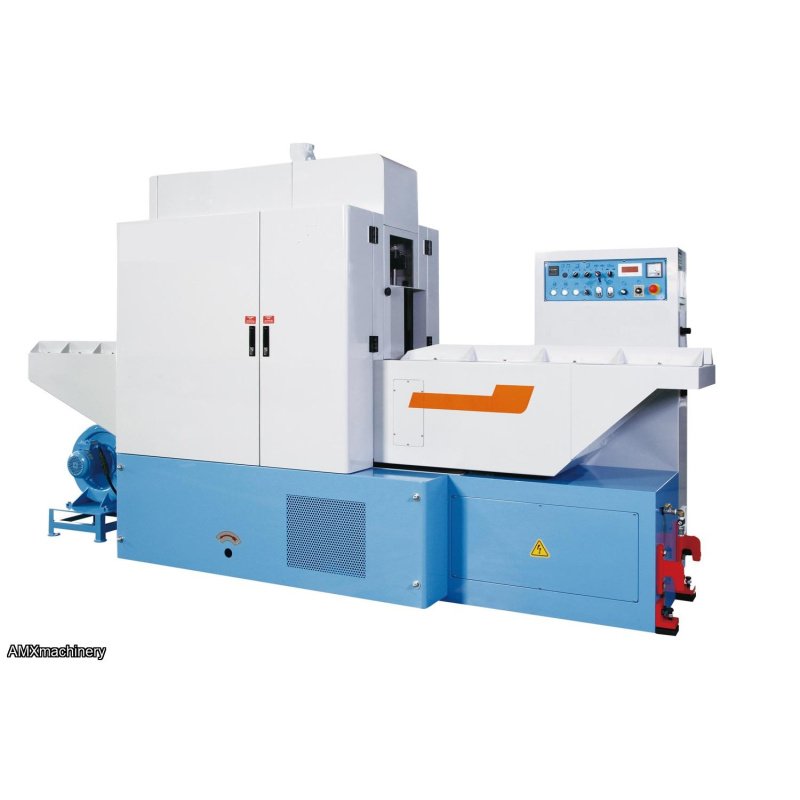

PARTE: 2CK-FR-300 - SIERRA SE VAIVEN
FEED ROLLS & PRESSURE ROLLS
- Bottom Rolls – 7 pieces in Front Section & 5 pieces in Rear Section
- Top Front section is equipped with 7 pressure rollers & 3 air cylinders controlled by sensor
- Top Rear section is equipped with 5 pressure rollers & 1 air cylinder controlled by sensor
|
Motor
|
20 HP +1/2 HP + 5kW(Servo) + 2HP Blower |
|
Max. Working Thickness
|
310 mm |
|
Min. Working Thickness
|
80 mm |
|
Max. Working Length
|
200 mm |
|
Min. Working Length
|
400 mm |
|
Feed Speed
|
0.1-2.0 m/min |
|
Main Shaft Speed
|
450 RPM, stroke distance 260 mm |
|
Saw blade Size
|
655 x 45 x 0.8 mm, Kerf: 1.2 mm, Pitch: 15 or 17, Stellite or TCT |
|
Max Saw Blades
|
30 pieces |
|
Finished Tolerance Value
|
±0.15 mm |
|
Min Precision Thickness
|
3 mm |
|
Dust Pipe
|
5“ x 4 pieces |
|
Machine Dimensions
|
L3200 x W1050 x H2050 mm |
