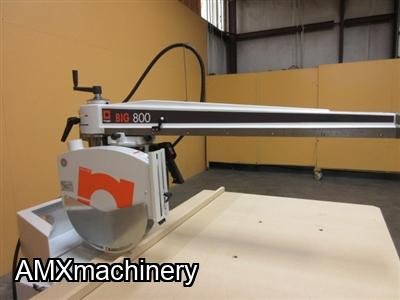

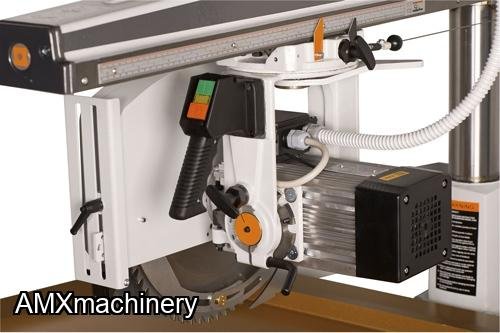

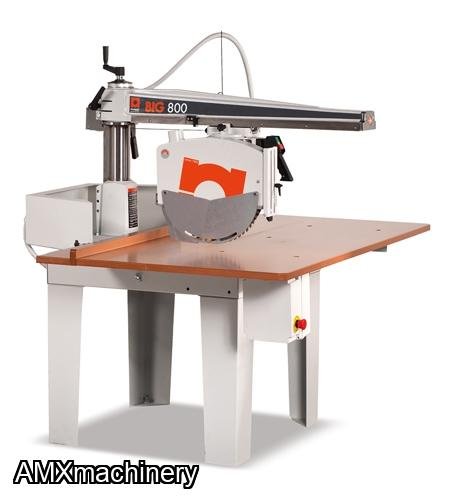

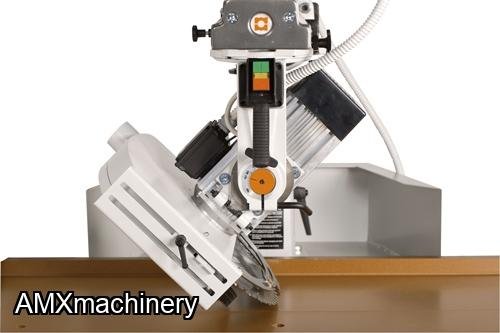

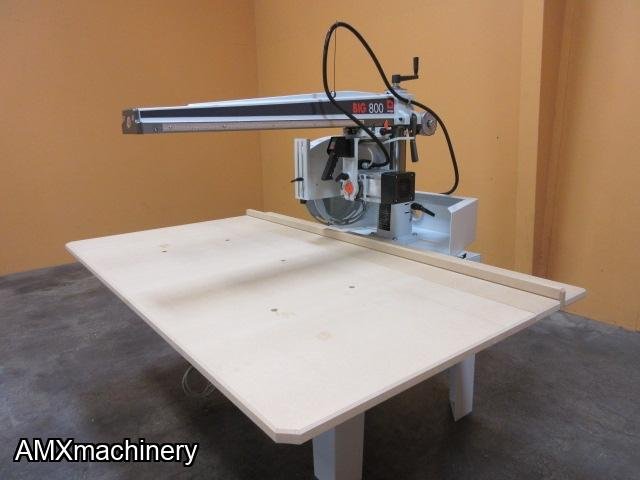

SIERRA RADIAL - DISCO 15.75” - 4 HP - LARGO 27.75”

PARTE: 2MA-800CE - SIERRA RADIAL - DISCO 15.75” - 4 HP - LARGO 27.75”

NUEVA CON GARANTIA

Heavy castings and the eight bearing saw carriage makes this machine very accurate and rigid.

European quality made to last!

4 HP, 2800 RPM motor

400 mm (15.75") Blade diameter capacity (Not included)

30 mm Arbor diameter

73.23" x 45.08" Table size

27.75" Max crosscut length on 3/4" thick material (90 deg)

0 to 40.5" Rip capacity

4.9" Max depth of cut

19.68" Max cut length at 45 deg on right side

12.20" Max cut length at 45 deg on left side

Dust chute on blade guard as well as rear of table

Machine weight: 495 Lbs.

Machine dimensions: 73" x 62" x 61" T

Voltage: 230V 3-Phase
