PARTE: 2CK-NT-MRS14N

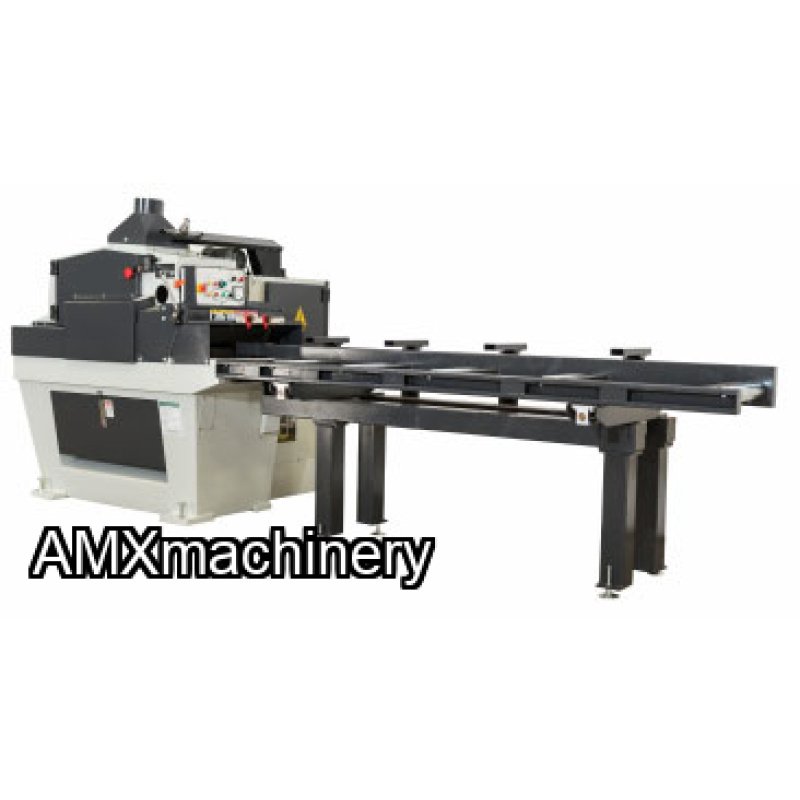

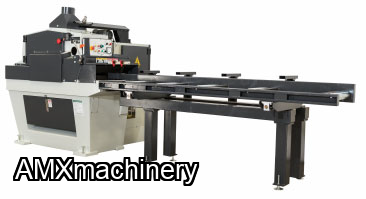

Features a cast iron frame that houses a variable speed dip chain for premium rip capability. Often referred to as gang rip saws, this machine is fitted with 14″ diameter rip saw blades and can be equipped with power raise and lower, invertor speed control and non marking urethane feed chain for customer specific applications. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber.
MAIN MOTOR HP: 50 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 35/70 Amp
FEED HP: 2 Speed 1.5 / 3 HP
FEED SYSTEM: Feed Chain
FEED SPEED RANGE: 25-120 FPM
VARIABLE FEED SPEED: Manual Wheel Adjustment
ELEVATION HP: 1/4 HP
ELEVATION STYLE: Jack Screw / Linear Guides
TOTAL MACHINE HP: 53.25 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta
