PARTE: 2CK-MRS175
FEATURES
- Specially designed auxillary powered outfeed roller assures maximum smoothness of workpiece outfeed especially when working on extra thick, heavy and moist wood
- Massive cast iron base provides incredible absorption characteristics for high quality deep cutting operations
- Precision chain and rails (dip chain) system facilitates straight line cutting
- Equipped with a blade mist cooling device providing cooling and cleaning for sawblades during cutting increasing blade life and improved cut quality
- Powerful blade drive motor for heavy duty cutting operations
- Motorized saw arbor and thickness adjustment for operator convenience
- A digitally controlled lubrication unit to provide consistent oil protection to the feed chain and guide rails. If the oil level drops below a safe level a warning lamp will light up and the feed chain will stop automatically
- Equipped with an electronic amperage display which is tied in to an overload protection where if the saw motor exceeds a rated amperage the feed chain slows down automatically
- Variable feed speed adjustment by frequency inverter from the front of the machine
|
Max. cutting thickness |
6.9″ (175mm) |
|
Max.
cutting width |
13.78″ (350mm) |
|
Distance of fixed inside blade to column |
14.9″ (380mm) |
|
Min. working length |
27.5″ (700mm) |
|
Max. sawblade diameter |
18″ (450mm) |
|
Min. sawblade diameter |
14″ (355mm) |
|
Sawblade bore |
70mm or 90mm dble. keyed |
|
Saw arbor diameter |
70mm
(w/o sleeve) |
|
Saw arbor motor |
125 HP (150HP optional) |
|
Saw arbor elevation motor |
1/2 HP |
|
Feed motor |
3 HP (5HP optional) |
|
Variable feed speed |
8-80
FPM(2.5-24m/min) |
|
Powered raise and lower of roller group |
1/2 HP |
|
Dust hood diameter |
8″ (200mm) |
|
Table height (pass line) |
29.3″ (745mm) |
|
Electrics – to UL/CSA standards |
230/460 or 575/3/60 |
|
Table area (L x W) |
72.4″ x 31.1″ |
|
Overall
dimensions |
95.5″ x 90.5″ x 63″ |
|
Net weight |
6600 lbs (3000 kgs) |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
-500x500.jpg)
AMXmachinery1
PARTE: 2CK-HR12E - REASERRADORA HORIZONTAL - 1 BANDA - 20 HP – 11.8” ANCHO X 4.92” ESPESOR
PARTE:
2CK-HR12E - REASERRADORA HORIZONTAL - 1 BANDA - 20 HP – 11.8” ANCHO X 4.92”
ESPESORNUEVA CON GARANTIA
2 OPCIONES: 230/1/60 - 460/3/60Can produce a cut up to 11.8” wide and 4.92” thick. Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material. The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. The user-friendly controls and operation make will all...
-500x500.jpg)
AMXmachinery1

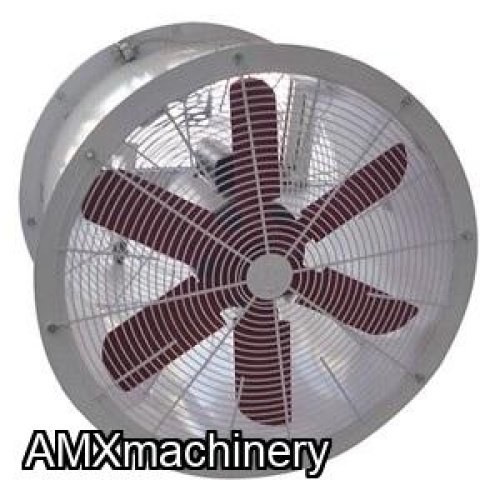

EXTRACTOR TUBOAXIAL DIRECTO
PARTE: 1AM - EXTRACTOR TUBOAXIAL DIRECTOPara uso de procesos comerciales e industriales, torres de enfriamiento, extracción de humo, gases en estacionamientos, viveros, etc.Carcaza de acero al carbón, pintada con pintura electrostática y horneada. Aspa de aluminio anti-chispa. Accionado por acoplamiento directo a un motor eléctrico.Características:– Diámetro de aspa desde 16″ hasta 26″.– Motores en voltaje 127/220V. y 220/440V.– Volúmenes de aire: 4,200 hasta 18,725 PCM. Presi...
AMXmachinery1

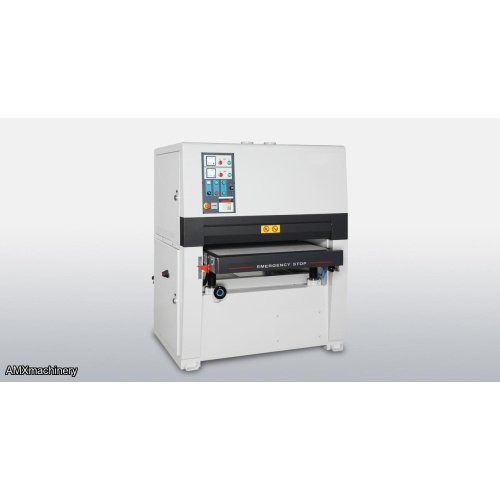

LIJADORA DE BANDA ANCHA - 2 BANDAS
