PARTE: 2CK-C14RS

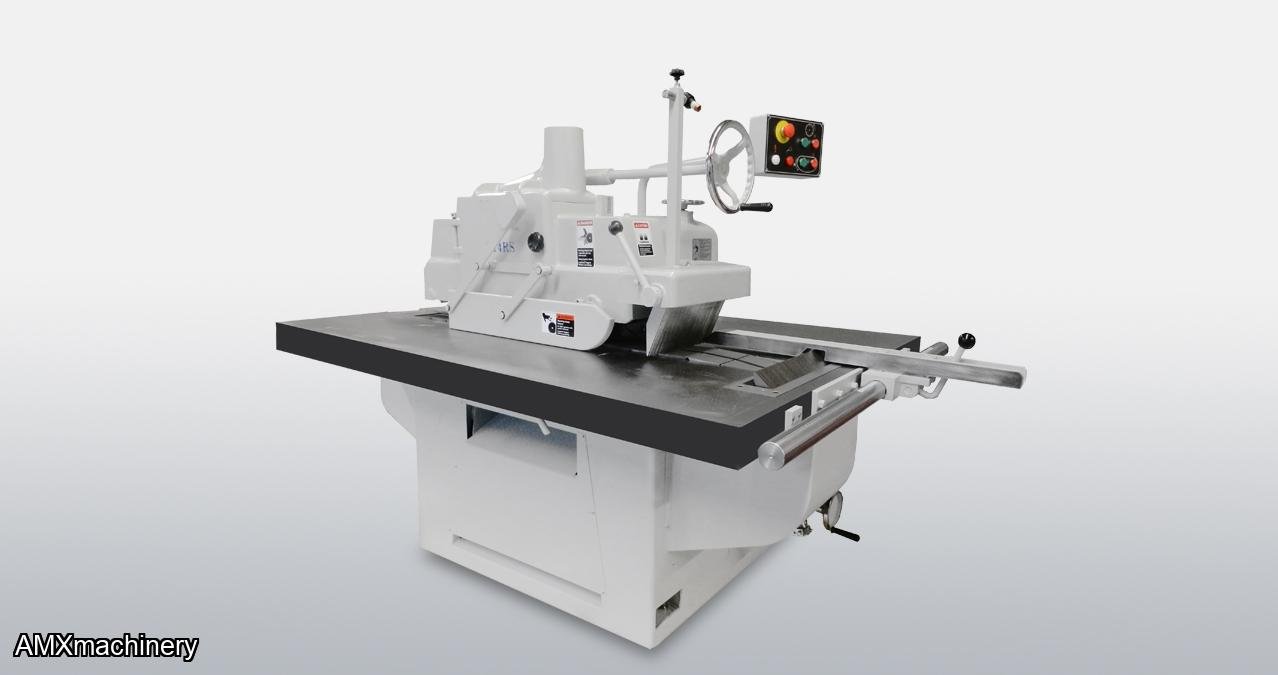

Is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C14RS can produce a glue joint finish ready for panel glue-up right out of the saw.
- Produces a guaranteed glue joint finish to 15′, which eliminates the need to joint the material after ripping
- Precision straight line feeding for parallel and accurate rip cuts

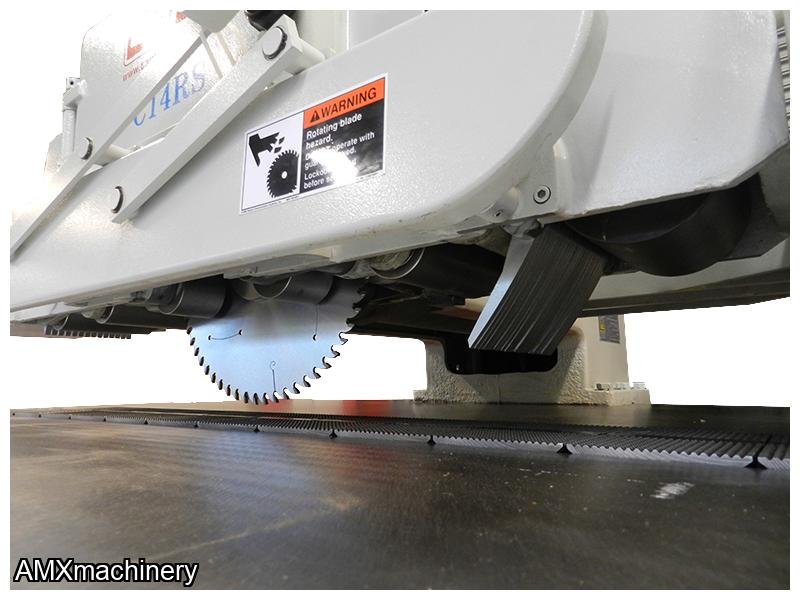

- Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut
- Powerful 20HP saw motor for even the most demanding rip applications
- Maintenance-free chain track with the use of a reliable mechanical lubrication system
- Variable feed speed by frequency inverter for optimum cutting results
KEY ADVANTAGES
- Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
- Very rigid machine body with a welded steel frame
- Absolute straight line feeding with glue joint to 15 ft.

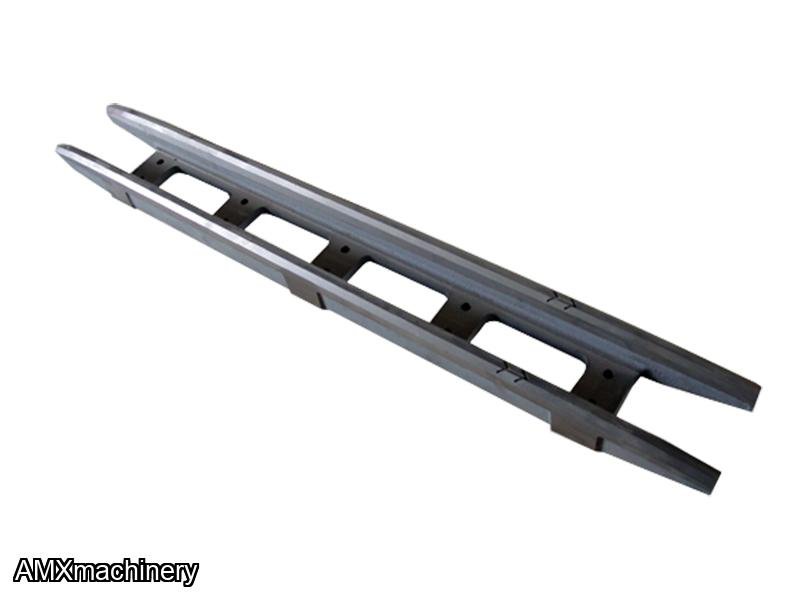

- FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life

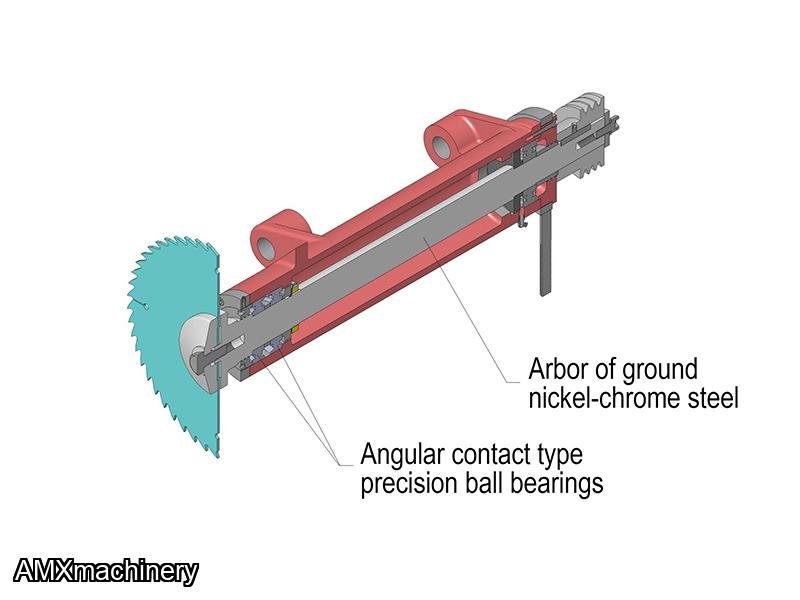

- Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
- Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.

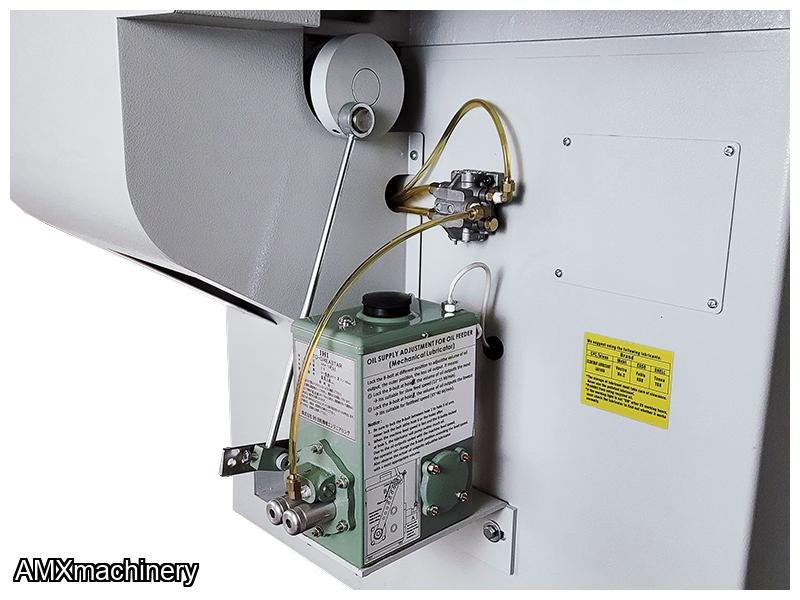

- Mechanical operation chain oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.
- When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.

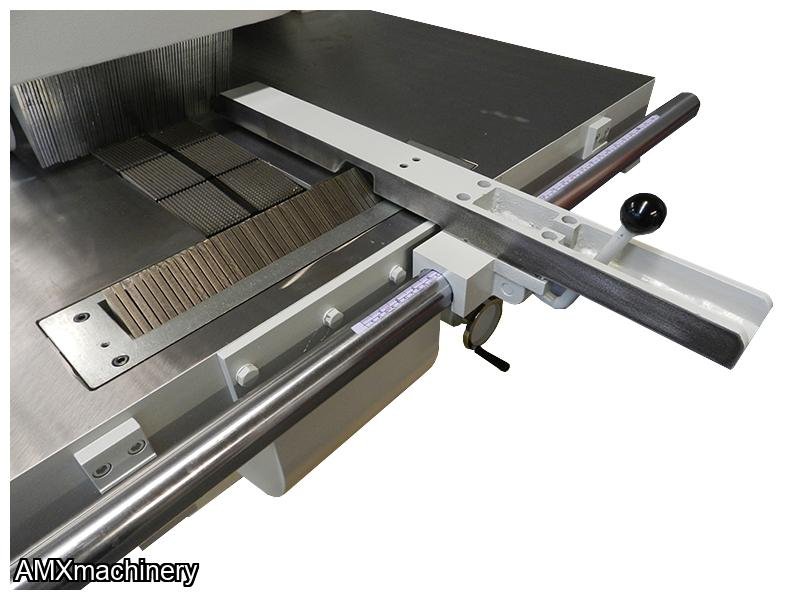

- Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.

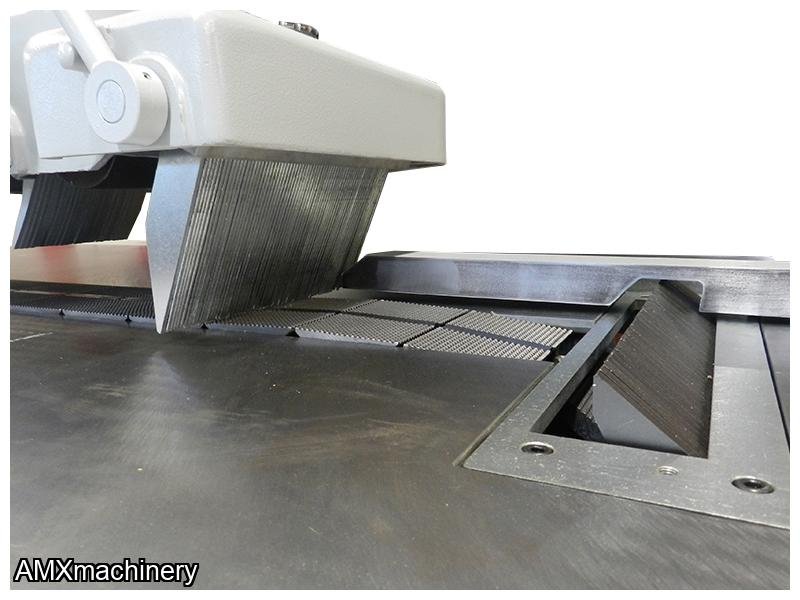

- 3 sets of anti-kickback fingers: 2 top and 1 set in the table for added operator safety.
- Soft start – Star Delta starter reduces the amp draw on startup.

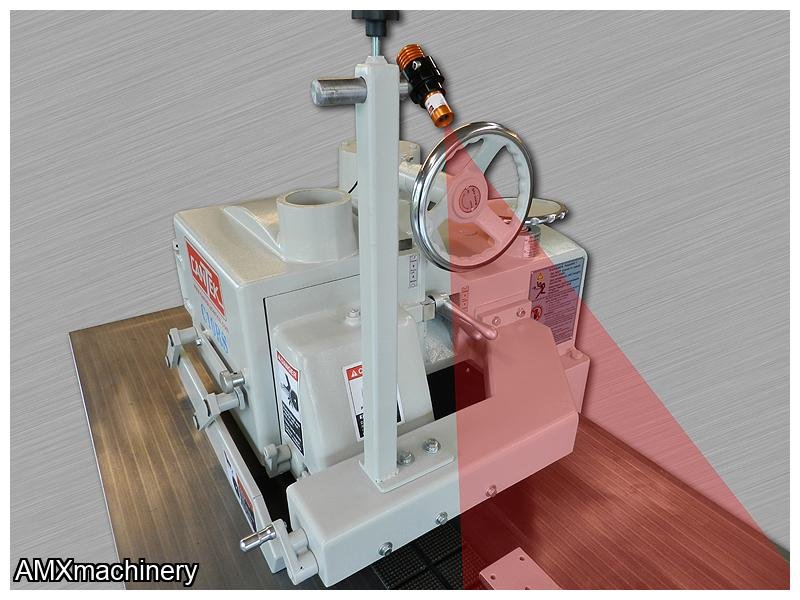

- Optional laser light to project the cutting line to achieve maximum material yield.
|
|
INCH |
METRIC |
|
Saw blade diameter |
12″ ~ 15″ |
300 ~ 380mm |
|
Saw arbor diameter |
1.5″ |
|
|
Saw arbor speed |
3500 RPM |
|
|
Feed speeds variable |
33 ~ 98 FPM |
10 ~ 30 m/min |
|
Max. cutting thickness: 12″ blade |
3.35″ |
85mm |
|
Max. cutting thickness: 13″ blade |
3.94″ |
100mm |
|
Max. cutting thickness: 14″ blade |
4.33″ |
110mm |
|
Max. cutting thickness: 15″ blade |
4.92″ |
125mm |
|
Minimum work piece length |
8″ |
200mm |
|
Distance between saw and column |
24″ |
609mm |
|
Arbor motor |
20 HP |
|
|
Feed motor |
2 HP |
|
|
Table size |
50″ x 75″ |
1270 x 1905mm |
|
Table height |
31.5″ |
800mm |
|
Dust port size |
5″ |
125mm |
|
Net weight |
3410 lbs |
1550 kgs |
|
Machine dimensions |
89″ x 57″ x 57″ |
2269 x 1448x 1449mm |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
CEPILLO 2 CARAS EJE CARDAN 32"
CEPILLO 2 CARAS EJE CARDAN 32" 2CK-GT820HDSuitable for the most demanding planing applications. The HD series are capable of high feed speeds with maximum stock removal capabilities. They feature a robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The material is passed over the bot...
AMXmachinery1
LIJADORA DE BANDA VERTICAL HEAVY DUTY - 10 HP
PARTE: 2CK-OES512DIs the ideal edge sander for demanding applications for production use. Equipped with a 12” high oscillating sanding belt, it is ideal for sanding drawer boxes, doors, furniture components and more. The OES512D is also equipped with dual front and rear tables which are adjustable up & down and can be tilted to 45 degrees, allowing for a wide range of applications and full utilization of the sanding belt. The dual tables also allow for two operators to be working on the mach...
-500x500.jpg)
AMXmachinery1

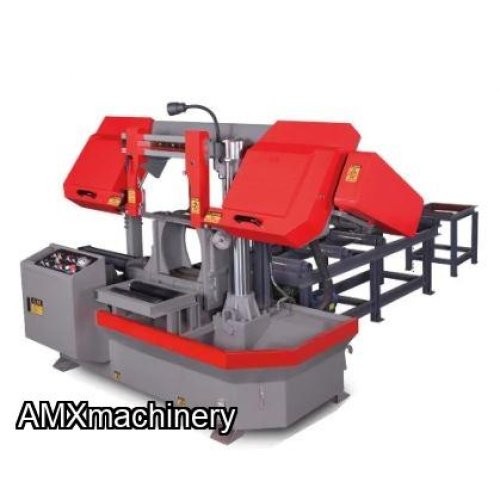

PARTE: 3AM-G-35/42S - SIERRA CINTA PARA METAL SEMI AUTOMATICA
