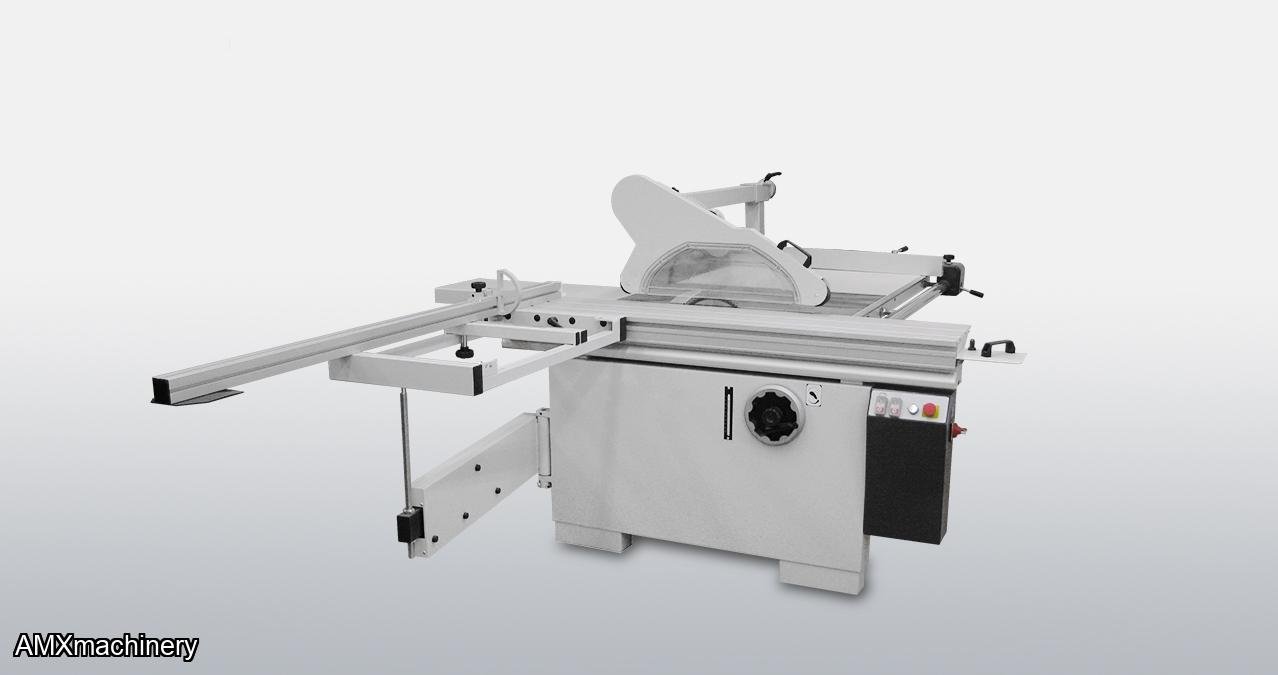

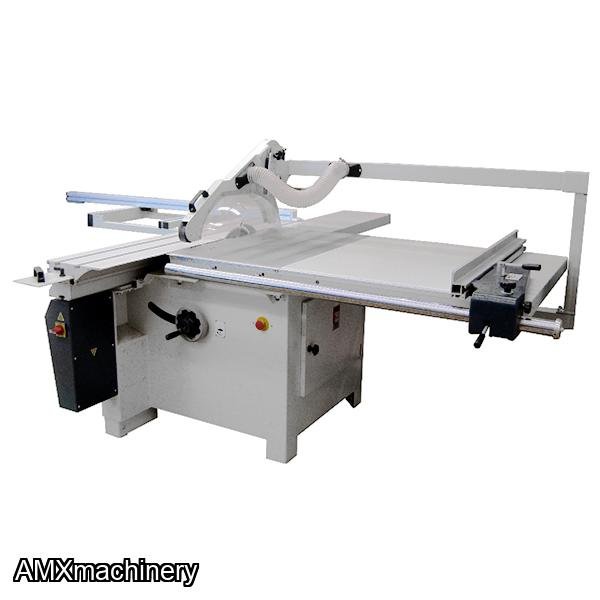

SIERRA ESCUADRADORA - 5 PIES

Is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements.  The machine has a precision sliding table which runs on ball bearings and hardened steel guide strips.  It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP).   The blade height and tilt is manually adjusted by means of individual handwheels.  The angle of the blade is displayed by a linear scale for added operator convenience.   The rip fence runs on a round hardened rail and is manually adjusted up to 51”.  Equipped with a crosscut miter fence and (2) flip stops.

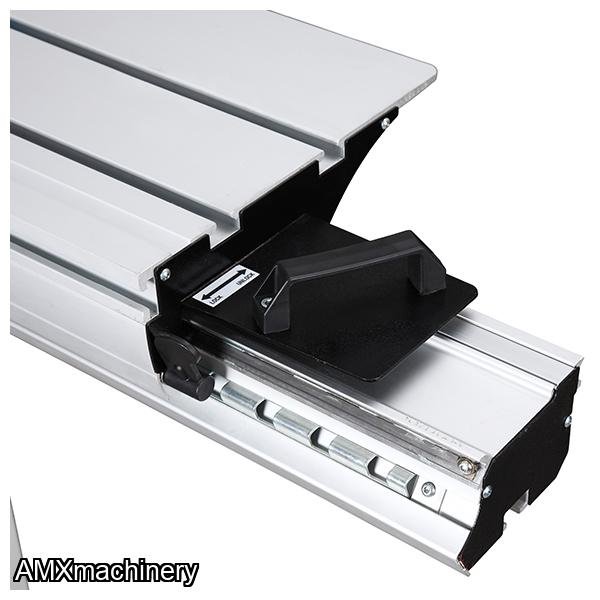

• Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
• Powerful 5 HP main motor with ¾ HP scoring motor

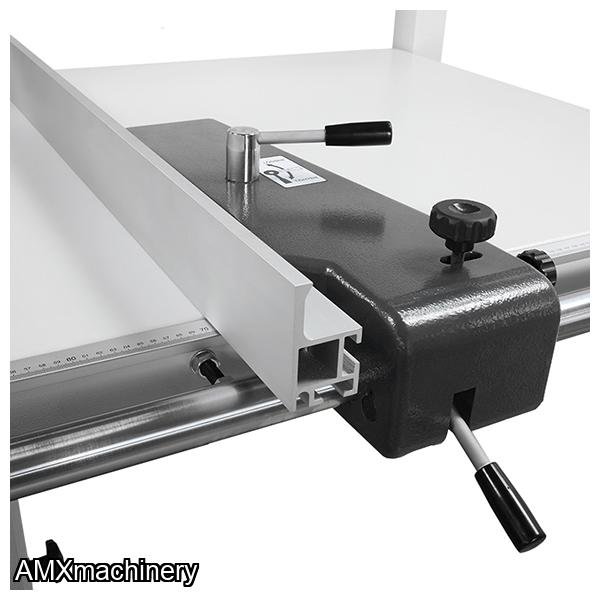

• Heavy duty cast-iron rip fence with 51” cutting capacity

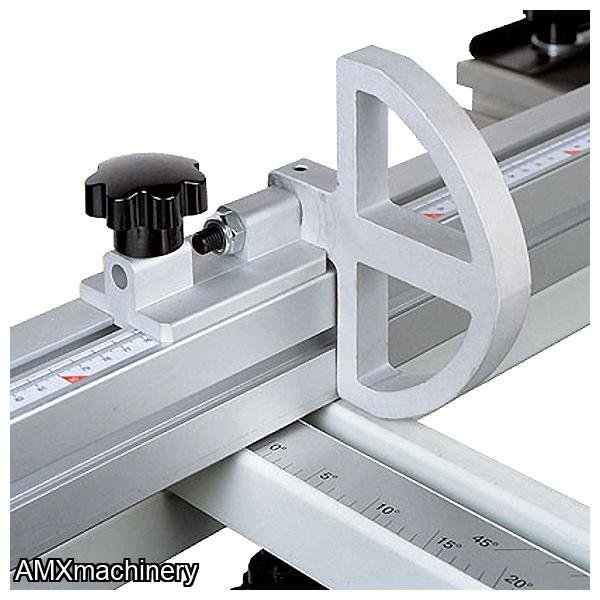

• Aluminum crosscut miter fence with (2) flip stops
• Manual rise/fall the main saw blade

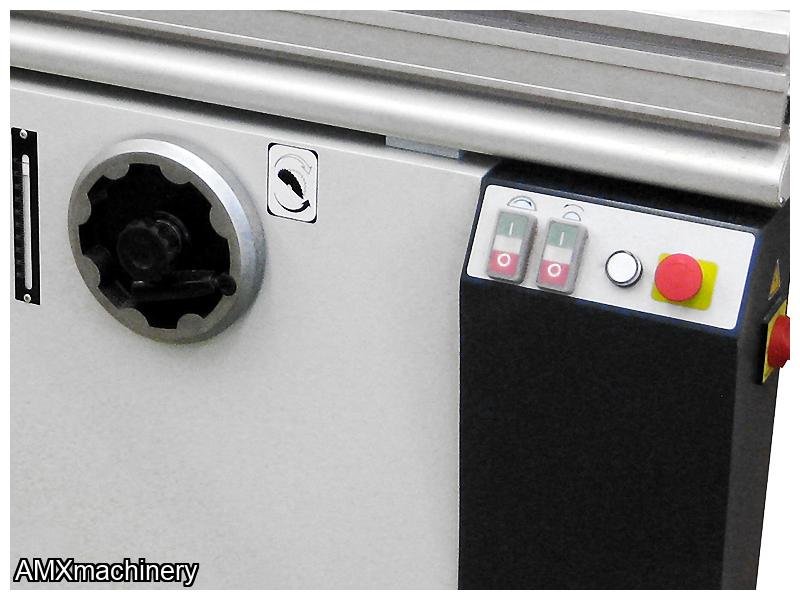

• Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel

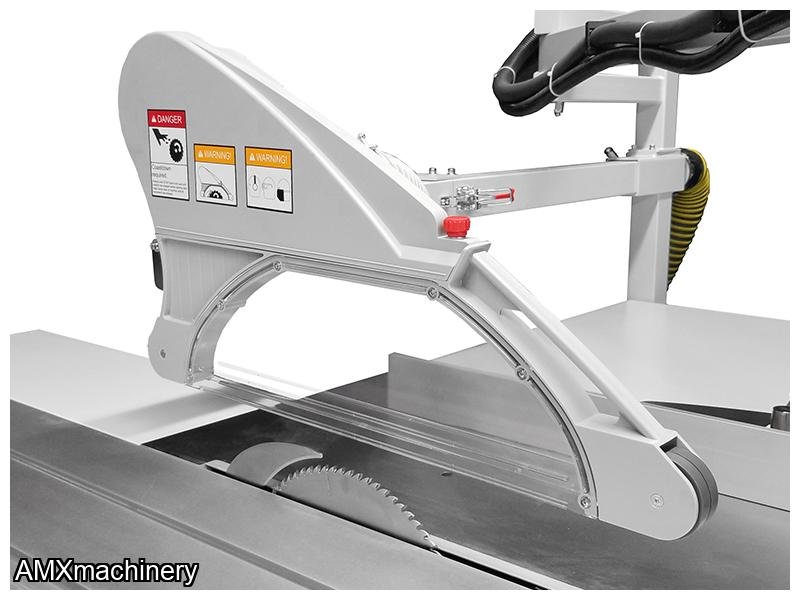

• Overarm blade guard with build in dust port
• Solid cast iron main table which is ground and polished
• Heavy-duty outrigger for strong support of workpiece during cutting operations

KEY ADVANTAGES

• Solid rip fence with manual fine adjustment and locking lever
• Easy to access external scoring adjustment
• Extension table at side and back of main table
• Optional Equipment Included:
• Eccentric hold down clamp
• CE Overarm Guard with Dust Port
• Wedge for Solid Wood Ripping
