Identificador: 327
Abierta
Descripción

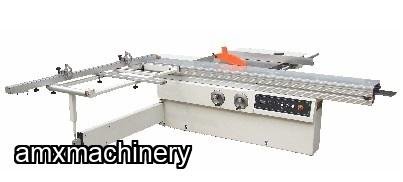

PARTE # 2TA-TS-P3200MA - SIERRA ESCUADRADORA - 3200 MM
NUEVA CON GARANTIA
Heavy duty construction provides vibration free operation. Easy to set up and adjust.
Manual raise, lower and tilt of main blade and scoring saw.
Scoring unit provides clean, accurate, chip free cutting, ready for edge banding.
Sealed main shaft bearings (lubricated for life) with vibration dampening system.
Highly accurate, freely moving sliding table with wear resistant guide rails and rollers.
Specially designed roller carriage, utilizing aluminum pro files for lighter weight.
Stable, torsion free cross slides with low resistance swinging support arm.
Extra attention paid to the sliding table mechanism, ensuring absolute rigidity of the entire sliding assembly.
Base welded from cold, rolled heavy gauge steel plate, providing a rugged assembly and long term accuracy of the entire machine.
Industrial grade, high power rated motor for long life and heavy duty performance.
Telescoping cross cut fence, extendable to the full 63” stroke of the sliding table. Fence can be utilized for up to 45 degree miter cutting.
All painted surfaces with special heavy grade priming and finish for long term protection.
All none painted aluminum surfaces, anodized
SPECIFICATIONS | LB-TS-P1600MA | LB-TS-P2500MA | LB-TS-P3200MA |
Sliding Carriage Dimensions | 63" x 14" | 98" x 13" | 126" x 13" |
Max. Cutting Length | 63" | 98" | 122" |
Ripping Capacity | 49" | 49" | 49" |
Saw Blade Inclination | 90° ~ 45° | 90° ~ 45° | 90° ~ 45° |
Maximum Depth of Cut at 90° | 3.3" | 3.3" | 3.3" |
Maximum Depth of Cut at 45° | 2.6" | 2.6" | 2.6" |
Main Saw Maximum Blade Dia. | 14" | 14" | 14" |
Saw Blade Shaft Dia. | 30 MM | 31 MM | 32 MM |
Blade Rotation Speed (RPM) | 2800/4000/5600 | 2800/4000/5600 | 2800/4000/5600 |
Saw Blade Motor Power | 5 HP | 5 HP | 7.5 HP |
Scoring Saw Blade Dia. | 125 MM | 125 MM | 125 MM |
Saw Blade Shaft Dia. | 20 MM | 20 MM | 20 MM |
Blade Rotation Speed (RPM) | 8000 | 8000 | 8000 |
Scoring Motor Power | 1 HP | 1 HP | 1 HP |
Saw Up & Down, Tilting Motor | MANUAL | MANUAL | MANUAL |
Power | 220V 3PH | 220V 3PH | 220V 3PH |
N.W. | 960 LBS | 1650 LBS | 1800 LBS |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
CORTADORA PAPEL 17"
PARTE: 22EB-PC-020 - CORTADORA DE PAPEL - 17" ANCHO – 400 HOJASNueva con garantiaCaracteristicasCortadora de la mas alta calidadNavaja de 17”Capacidad 400 hojasPuede ser usada para arriba del escritorio o con base opcionalEs ideal para usarse en negocios, centros de copiado y escuelasLista para usarseCorta 400 hojas o aproximadamente 1.5” y 17” de anchoCompletamente ensambladaIncluye manual de usuarioIncluye escudo protectorConstruida en acero de uso rudoPeso aproximado 60 librasGuarda d...
AMXmachinery
PRENSA CALIENTE – 3 SECCIONES – 200 TON
PARTE: 3UD-HP48X200T-3 – PRENSA
CALIENTE – 3 SECCIONES – 200 TON – AMX MACHINERY
Nueva con garantía
Maximum
pressure 200T
Number
of working layers 3
Number
and specifications of plates 6-42 x 2500 x 1300mm
Spacing
of hot press plate 100mm
Oil
cylinder ɸ100 x 10pcs
Hydraulic
motor power 5.5kw
Heat
pump power 2.2kw
Heating
pipe power 60kw
Dimensions
3500 x 1700 x 2650mm
Net
weight 8200kg
AMXmachinery
PARTE: 12634 - ESPIGADORA – MESA DOBLE – BALESTRINI PICO
PARTE: 12634 - ESPIGADORA
– MESA DOBLE – BALESTRINI PICO
USADA – MUY
BUENAS CONDICIONES
Hourly
Production: 600/700 Tenons
Tenon Width: Max. 100 mm + Thickness
Tenon Thickness: Max. 30 mm
Tenon Depth: Max. 50 mm
Table Tilt: Max. 20 Degrees
Workpiece Fence Swiveling 45 Degrees
Cutter Rotation 9000 RPM
Cutter Motor 4 HP
Cycle Motor 1 HP220V, 3 fases, 60 hz
