Identificador: 331
Abierta
Descripción

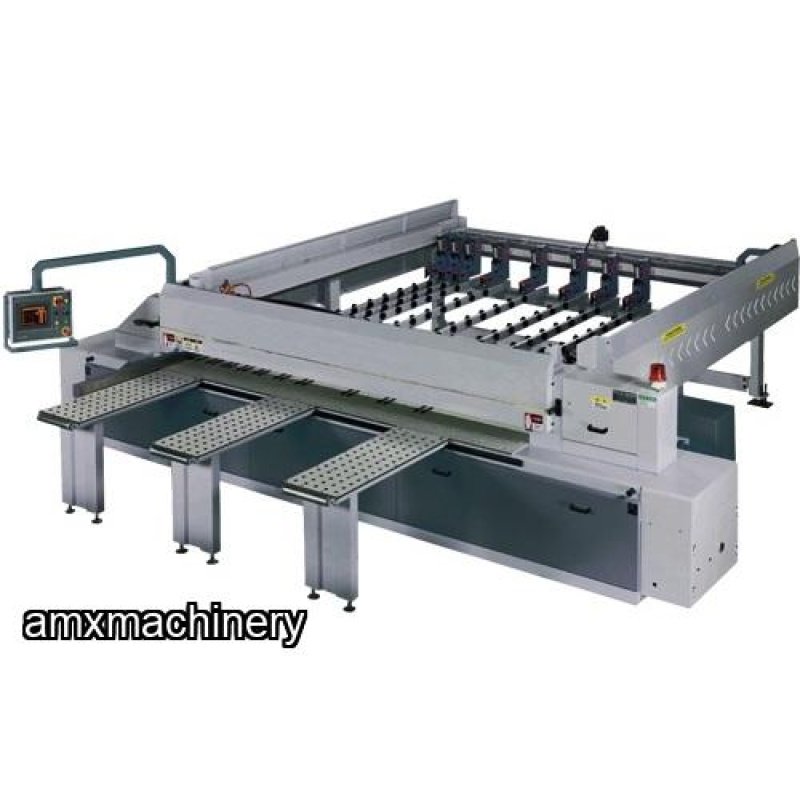

PARTE # 2TA-TS-P330 - SIERRA DE PANELES AUTOMATICA
| Specifications | 2TA-TS-P330 | |
|---|---|---|
| Capacity | Max. Cutting Length | 126" (3200 mm) |
| Max. Cutting Depth | 3" (80 mm) | |
| Max. Cutting Height | 126" (3200 mm) | |
| Main Sawblade | Diameter | Ø14" (Ø355 mm) |
| Arbor Diameter | Ø1" (Optional: 1" (30 mm)) | |
| Speed | 4800 RPM | |
| Scoring Sawblade | Diameter | Ø7" (Ø180 mm) |
| Arbor Diameter | Ø1" (Optional: 1" (30 mm)) | |
| Speed | 6500 RPM | |
| Saw Carriage | Feeding Forward Speed | 5 ~ 37 M/ min |
| Return Speed | 67 M/ min | |
| Motor | Main Sawblade Motor | 13 HP (Optional:15 HP) |
| Saw Carriage Drive Motor | 2 HP | |
| High Pressure Blower Motor | 3 HP | |
| Other | Automatic Panel Feed Speed | 30 M/ min |
| Working Air Pressure | 5 ~ 6 kg/ cm² | |
| Table Height from Floor | 32" (820 mm) | |
| N. W. | 9923 LBS (4500 kg) | |
| Machine Dimensions (mm) | 232" x 244" x 60"(5893 x 6198 x 1524 mm) | |
- Features:
- Cutting large panels quickly and efficiently is a necessity in today’s competitive markets.
- The computer panel saw with gripper will bring you the capacity to cut panels quickly, easily and accurately.
- The computer panel saw promises dramatic productivity gains with this features: advanced computer control, high efficiency automatic gripper feed system, reduced cycle time, and prefect square cutting accuracy, all at an economical price.
- Great select memory capacity permitting for single or multiple sizes at groups of quantity cutting.
- Employed with touch control screen for convenient operations, eliminating the problem of dust contamination.
- Featuring a self diagnostic function, provide with comprehensive probable cause of trouble and detailed trouble shooting guide, allowing the operator to correct problems easily.
- Superior software system is designed for human and machine interface.
- The base is welded from cold rolling steel plate, offers rugged construction.
- Automatic saw stroke enable to only cutting the panel actuary length and return right away, this reduce considerable cycle time.
- The saw carriage runs with bronze wheel, which is CNC lathe precision machined or accurate concentricity producing fine smooth surface cut.
- The guide rods, hard chrome plated, provide rigid support for saw carriage. The ripping accuracy is guaranteed.
- The machine employs an advanced, high performance limit switch, its highly sensitive performance ensures extremely accurate saw stroke control.
- The saw carriage feed is driven by rugged wire.
- The scoring blade may be laterally adjusted for a burr free cut or vertically adjusted for proper depth of cut and to compensate for blade wear.
- The Table surfaces are covered with bakelite to prevent scratching of the panel during feeding.
- Panels feed through the linear motion guide for greater accuracy and less effort.
