Descripción
PARTE: 2CK-TA12

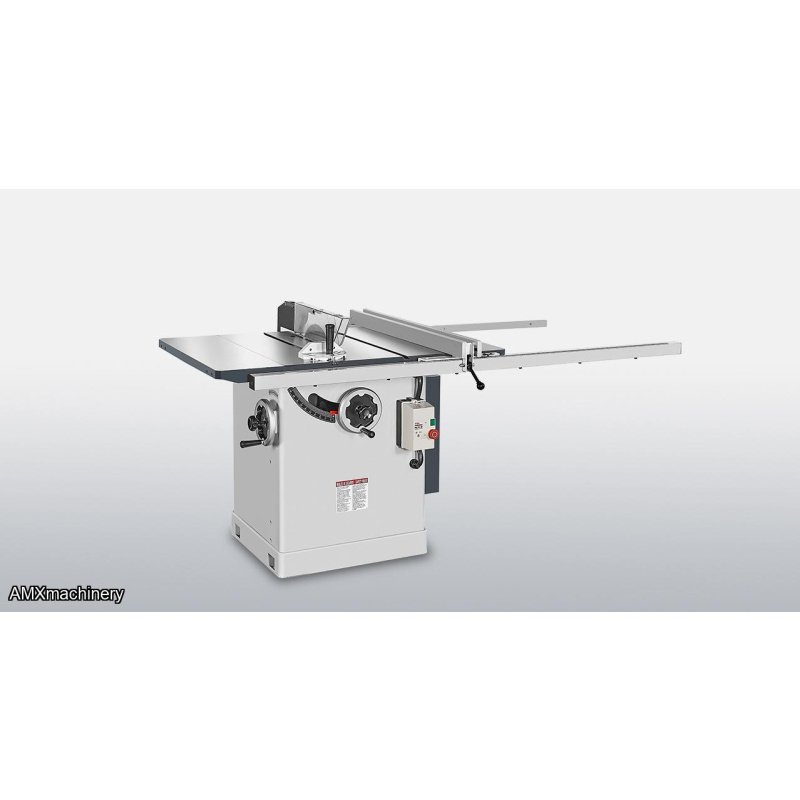

Is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 5HP motor it can make the cuts you need effortlessly.
- Heavy-duty cast iron table is precision ground for accuracy & precision
- Industrial strength cast iron saw carriage and trunnion for vibration free cutting
- 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade
- Right tilt blade to 45o
- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility
- Miter gauge with two miter slots in the table

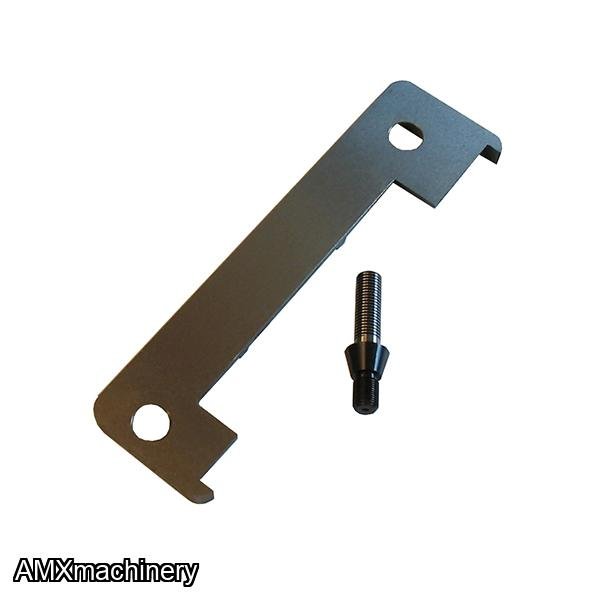

- Comes with dado arbor & dado table insert
KEY ADVANTAGES
- Rugged machine frame construction provides maximum stability and reduced vibration
- Saw guard with built in splitter and safety anti-kickback unit
- 1” standard and 5/8” dado arbor included along with appropriate cast iron table inserts
- Handwheel adjustment for blade height and tilting adjustments which can be locked in place

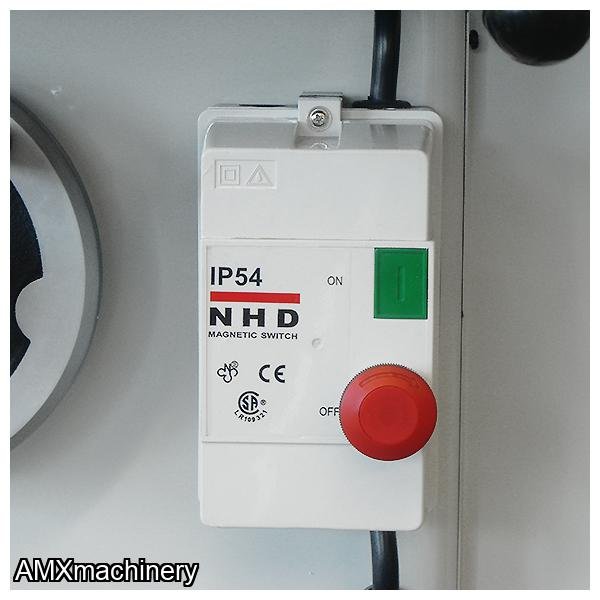

- CSA / UL approved magnetic switch
|
Saw Blade Diameter |
12″ |
|
Max. depth of cut at 90° |
4″ |
|
Max. depth of cut at 45° |
2 ¾” |
|
Arbor diameter |
1″ |
|
Dado arbor diameter |
5/8” |
|
Arbor speed |
4000 RPM |
|
Table size |
48″x30″ |
|
Table height |
34 ¼” |
|
Max. rip to right of blade |
50″ |
|
Motor |
5HP |
|
Electrical |
230/3/60 = 15.2 Full Load Amps |
|
230/1/60 = 28 Full Load Amps |
|
|
Net weight |
572 lbs |
|
Gross weight |
704 lbs |
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
-500x500.jpg)
AMXmachinery1
TALADRO MULTIPLE - SISTEMA 23
PARTE: EJG-MAG-SYSTEM23 - TALADRO MULTIPLE - SISTEMA 23Provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.Accurate positioning of the boring unit to the table with digital readout.0 to 2.5" adjustable drilling depth with patented spiral setting device.(2) patented quick release material clamps with auto-setting to firmly hold m...
AMXmachinery1
CEPILLO 2 CARAS - CON TRANSMISION
PARTE: 2CK-GT610HIIs capable of speeds up to 98 feet per minute and its robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The spring loaded feed system passes the material over the bottom head allowing it to act like a jointer to flatten the board prior and then a sectional infeed roller fe...
-500x500.png)
AMXmachinery1
ENDMATCHER MACHINE
ENDMATCHER MACHINE PARTE: 2CK-EM12Is specially designed for machining tongue and groove (with or without bevels) on hardwood flooring and wall/ceiling paneling up to 12” wide. Its compact design with continuous through feed system allows for maximum output in a small space. Equipped with a user-friendly touch screen interface allow for simple operation with excellent performance and error diagnostics. The dual counter-rotating cutterheads produce bot...
AMXmachinery1

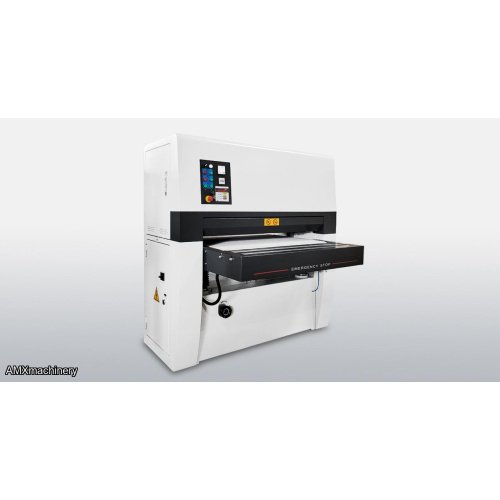

LIJADORA DE BANDA ANCHA - 43 PULGADAS
