Description
PARTE: 2CK-TA14
Is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 7.5 HP motor it can make the cuts you need effortlessly.
- Heavy-duty cast iron table is precision ground for accuracy & precision
- Industrial strength cast iron saw carriage and trunnion for vibration free cutting
- 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade
- Right tilt blade to 45o
- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility
- Miter gauge with two miter slots in the table
- Comes with dado arbor & dado table insert
KEY ADVANTAGES
- Rugged machine frame construction provides maximum stability and reduced vibration
- Saw guard with built in splitter and safety anti-kickback unit
- 1” standard and 1” dado arbor included along with appropriate cast iron table inserts
- Handwheel adjustment for blade height and tilting adjustments which can be locked in place
- CSA / UL approved magnetic switch
|
Saw Blade Diameter |
14″ |
|
Max. depth of cut at 90° |
5″ |
|
Max. depth of cut at 45° |
3 ½” |
|
Arbor diameter |
1″ |
|
Dado arbor diameter |
1” |
|
Arbor speed |
3750 RPM |
|
Table size |
48″x38″ |
|
Table height |
34 ¼” |
|
Max. rip to right of blade |
50″ |
|
Motor |
7.5 HP |
|
Electrical |
230/3/60 = 22 Full Load Amps |
|
Net weight |
847 lbs |
|
Gross weight |
1012 lbs |
Payments & Returns
- Payment Methods
- N/A
Post Message
Sign in to ask the seller a question.
-500x500.jpg)
AMXmachinery1
ASTILLADORA - HORIZONTAL - 24 X 4 PULGADAS - CON BANDA TRANSPORTADORA
PARTE: 2TA-WG-2404HC - ASTILLADORA - HORIZONTAL - 24 X 4 PULGADAS - CON BANDA TRANSPORTADORAFeatures:A specially designed, powerful crusher for different materials such as wood, MDF, particle board,plastic, rubber, corn cob, etc.Excellent wearing ability and impact-resistant for time & labor saving.Large busting capacity and easy feeding system.The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usageCutter head angle cutting ...
-500x500.png)
AMXmachinery1
TORNO 16'' X 60''
TORNO 16'' X 60'' PARTE: 2GM-GML-1660HD16” x 60”, 2-1/16” bore, 6 HPISO 9001 certifiedLarge spindle bore 2-1/16”Heavy Duty spindle D1-6One-piece solid cast iron machine baseHeavy Duty guideway width 10-1/4”Heavy Duty main motor 6 HP16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm45 kinds of inch threads, and 39 kinds of metric threadsThreading and feeding rate change without ch...
AMXmachinery1

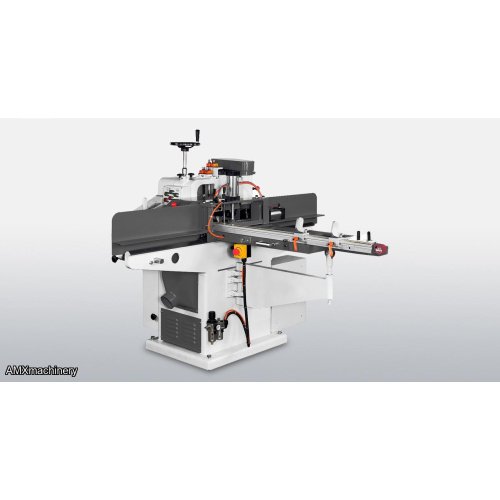

PARTE: 2CK-ST152C - ESPIGADORA SENCILLA - 1 LADO
