SIERRA CINTA – AUTOMATICA – CAPACIDAD 16.5”

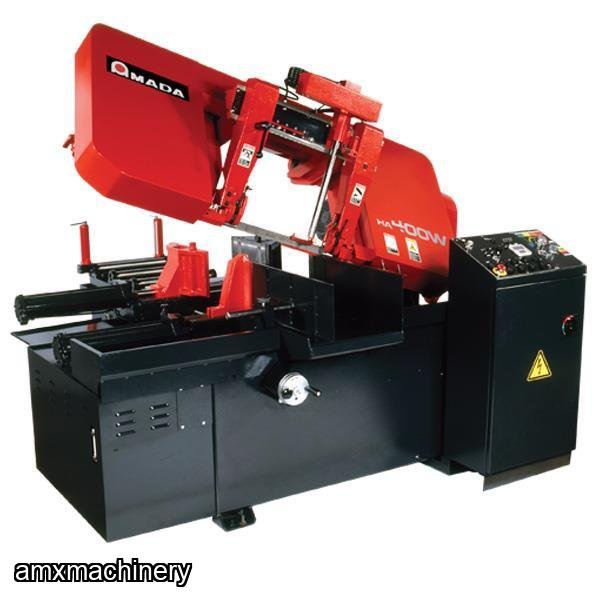

PARTE: 2AA-HA400W – SIERRA CINTA – AUTOMATICA – CAPACIDAD 16.5” - AMADA

NUEVA CON GARANTIA

Machine Specifications

Cutting Capacity Round (Diameter) 1.18"-16.54"

Rectangle (W x H) 16.3" x 16.3"

Work Load Capacity 5,511 lbs.

Material Index Stroke 19.6" (Maximum 9 times index)

Index Length 0.394" - 177"

Saw Blade Dimensions (L x T x W) 15' x 0.050" x 1-1/2"

Blade Speed 56-295 ft./min, 60 Hz, Step less

Saw Blade Motor 7.5 HP

Hydraulic Pump Motor 2 HP

Cutting Fluid Pump Motor 0.25 HP

Voltage Required AC220V±10%, 3 PH, 60 Hz

Or AC440V, 3 PH, 60 Hz

Machine Dimensions

Head Up Position 89.5" x 106.2" x 95.5" (W x L x H)

Head Down Position 89.5" x 106.2" x 62.0" (W x L x H)

Table Height 31.5"

Machine Weight 4,851 lbs.

Machine Standard Features

Variable Blade Speed Chip Conveyor

Pressure Flow Valve Motion Detector

Blade Break Limit Switch Piece Counter

9 Times Multi Index 2 way-Opening Vise

Out of Material Switch Operator's Console

HA400W           Model - HA400W with Machine Standard Features

Blade                SVGLB 1.5" x 0.050" x 3/4 TPI x 15´ (start-up blade)

OPTIONAL ITEMS

6' Dead Roller Table Free Standing

10´ Dead Roller Table free standing

Vertical clamps

Vise Pressure Control

Extended warranty - additonal year in parts
