Identificador: 1175
Abierta
Descripción

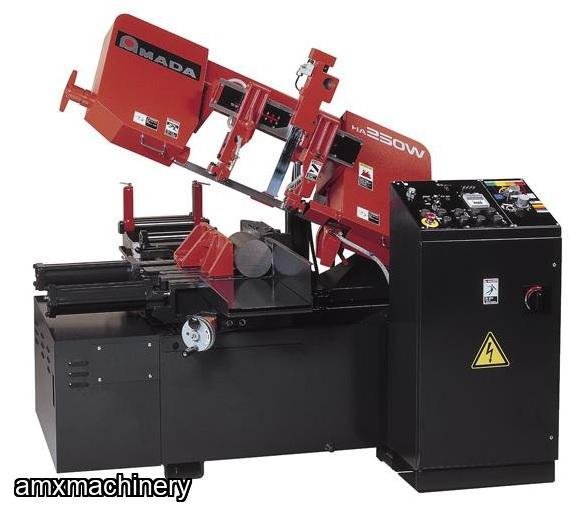

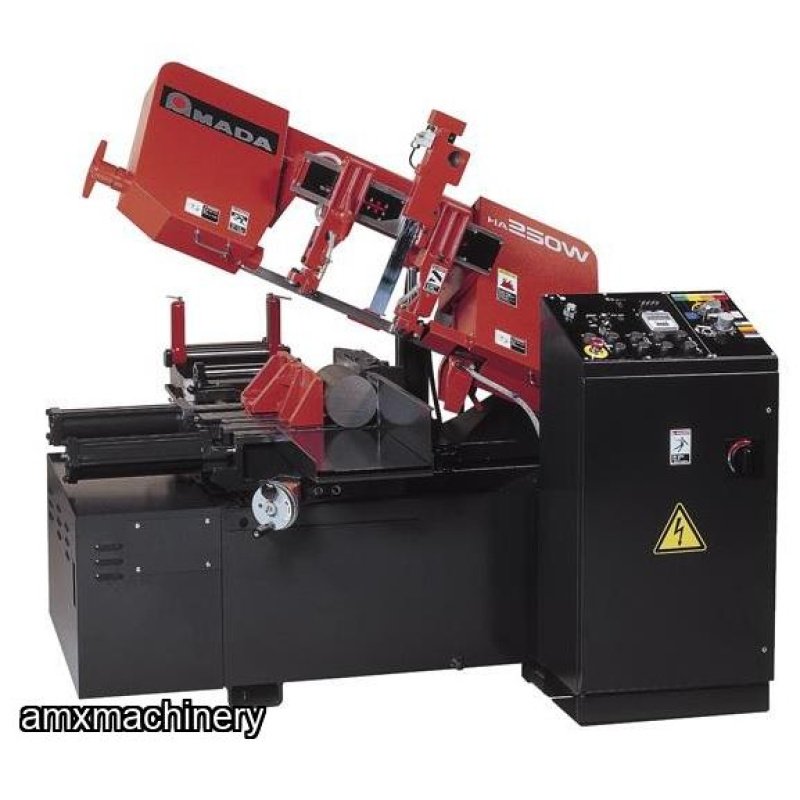

PARTE: HA250W – SIERRA CINTA – AUTOMATICA – CAPACIDAD 10” - AMADA
NUEVA CON GARANTIA
Machine Specifications
Cutting Capacity
Round (Diameter) 1.18"-10"
Rectangle (W x H) 11.8" x 10"
Work Load Capacity 3,307 lbs.
Material Index Stroke 15.75" (Maximum 9 Times Index)
Index Length 0.394" x 141.7"
Saw Blade Dimensions (L x T x W) 11'6" x 0.042" x 1-1/4"
Blade Speed 89-295 ft./min, 60 Hz, Stepless
Saw Blade Motor 5 HP
Hydraulic Pump Motor 1 HP
Cutting Fluid Pump Motor 0.25 HP
Voltage Required
AC220V±10%, 3 PH, 60 Hz
Or AC440V, 3PH, 60Hz
Machine Dimensions
Head Up Position 76.5" x 93.1" x 69.8" (W x L x H)
Head Down Position 76.5" x 93.1" x 50.6" (W x L x H)
Table Height 27.6"
Machine Weight 3,307 lbs.
HA250W - Model - HA250W with Machine Standard Features
Blade - SVGLB 1 1/4" x 0.042" x 4/6 TPI x 11´6" (start-up blade)
OPTIONAL ITEMS
6' Dead Roller Table Free Standing
10´ Dead Roller Table free standing
Vertical clamps
Vise Pressure Control
Extended warranty - additional year in parts
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 2TA-PL-18 - CEPILLO 2 CARAS 18", 24" Y 38"
PARTE: 2TA-PL-18 - CEPILLO 2 CARAS - 18" ANCHOPARTE: 2TA-PL-24 - CEPILLO 2 CARAS - 24" ANCHOPARTE: 2TA-PL-38 - CEPILLO 2 CARAS - 38" ANCHOOPCIONES:CABEZAL CON CUCHILLAS EN ESPIRALCT-SCH-14T 14MM x 14MM - NAVAJAS PARA CABEZAL EN ESPIRAL CT-SCH-15T 15MM x 15MM - NAVAJAS PARA CABEZAL EN ESPIRALFEATURES:- Upper & lower Straight Cutterheads for accurate and powerful two sided planning in one pass.- Optional Auto digital thickness control for quickly and accrue set up.- The work table surface was pre...
AMXmachinery
PRENSA CALIENTE – 1 SECCION – 200 TON
PARTE: 3UD-HP48X200T-1 – PRENSA
CALIENTE – 1 SECCION – 200 TON – AMX MACHINERY
Nueva con garantía
Maximum pressure: 200T
Number of working layers: 1
Number and
specifications of plates: 6-42 x 2500 x 1300mm
Spacing of hot press plate: 100mm
Oil cylinder: ɸ100 x 10pcs
Hydraulic motor power: 5.5kw
Heat pump power: 2.2kw
Heating pipe power 60kw
Dimensions: 3500 x 1700 x 2650mm
Net weight: 7000kg
AMXmachinery
CORE BUILDER
PARTE # 2EV-6600 - CORE BUILDER - EVANS 6600Maquina para hacer el centro o la base de las cubiertas de cocinaThe Evans machinery model 6600 core builder produces a quality core every time. Within one pass, this machine bonds the build up to both sides of the panel using hot melt adhesive applies T-Mold for no drip edges and shapes your core to the required profile. The model 6600 Core Builder operates at a feed rate of 20 FPM as it travels on a non-skid straight line feed system. The model 6600 ...
AMXmachinery
ENGOMADORA DE BANCO
PARTE # 2CK-F-TTGA-12 - ENGOMADORA DE BANCO 12" ANCHO- TAMBOR DE 6" DE DIAMETRO, 12" DE ANCHO DE PLASTICO RANURADO- DISENADO PARA USARSE CON PEGAMENTOS BASADOS EN AGUA BLANCO Y AMARILLO- IDEAL PARA USARSE CON LAS PEGADORAS DE 6 SECCIONES- TIENE TIRA DE METAL PARA AJUSTAR LA CANTIDAD DE PEGAMENTO A USARSE- DIMENSIONES: 32" ANCHO X 13" FONDO X 9" ALTO- MOTOR 110V, 1 FASE- DEPOSITO DE PEGAMENTO DESMONTABLE PARA FACIL LIMPIEZAOPCIONALES:OPCION: ANCHO 16" Y 17"
