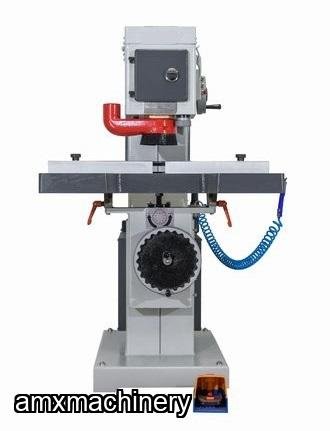

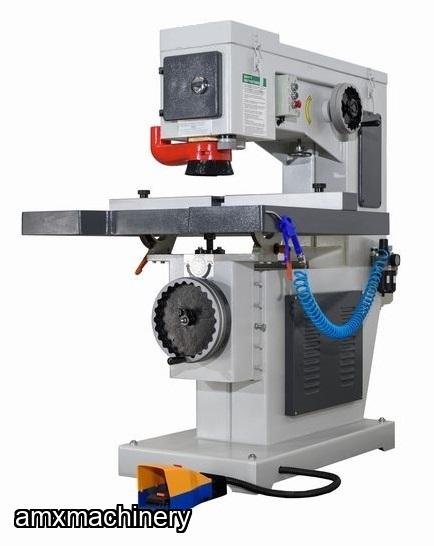

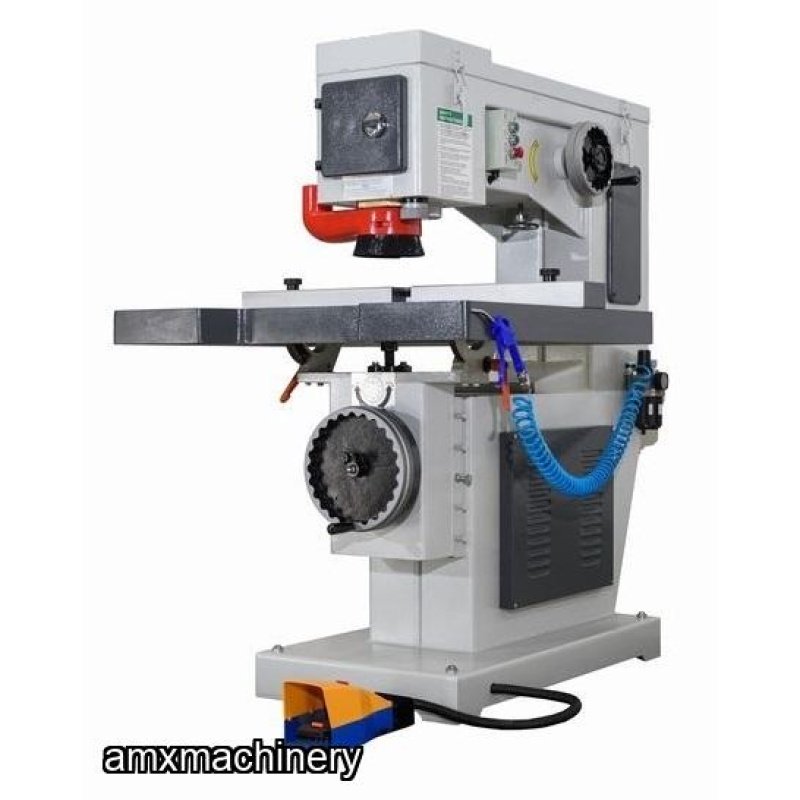

ROUTER DE PEDESTAL – 10 HP – GARGANTA 29-1/2”

PARTE: 2NC-NT750-10 - ROUTER DE PEDESTAL – 10 HP – GARGANTA 29-1/2”

Nuevo con garantía

10 HP spindle drive motor

Chuck to tabletop maximum: 7-1/2"

Throat clearance: 750mm (29-1/2'')

2 Speed Spindle: 8,100 / 16,300 RPM

Spindle travel: 95mm (3-3/4)

Depth stops: 6 position turret stops, adjustable

Table travel: 190mm (7-1/2'')

Table surface area: 915mm x 101mm (36" x 40")

Table tilt: 45 degree front downward tilt

Micrometric table raise: 1/32" (1mm) per full revolution of hand wheel

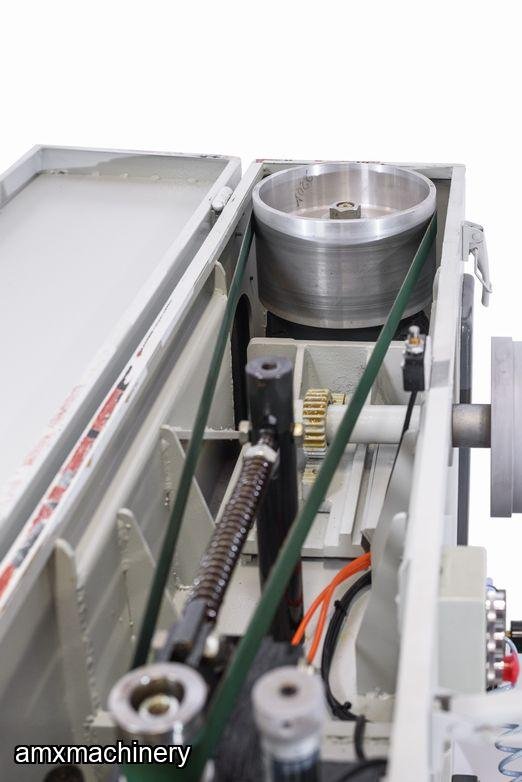

35 x 2330mm (1-3/8" x 92") flat belt

Dust port size: (1) 3" requiring 350 CFM at point of extraction

Net weight / Gross weight: 1465 lbs / 1650 lbs

Packing dimensions: (L) 66" x (W) 44" x (H) 71"

(1) Tool box

Warranty is one year parts

All machines are tested stateside prior to shipment providing trouble free start up.

Machine Hp. = 10 hp.

Voltage/ Freq. = 230 Volt 60Hz

Phase = 3 Phase

Amp Requirement = 26 Amps

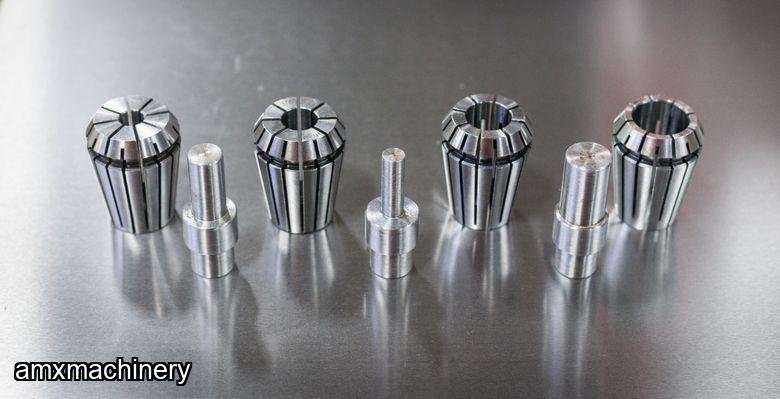

Configuration = 1/4'' 3/8'' 1/2'' Collet

Spindle RPM = 8100 / 16300 RPM

Elevation Style = Manual Wheel Adjustment

Elevation Sys. = Jack Screw / Linear Guides

Total Hp. = 10 Hp.

Electronics = CE Approved Components

Control Voltage = 230 Volt

Throat Capacity = 29-1/2''

Min. Thickness = 1-1/2'' Collet to Table

Max. Thickness = 7-1/2'' Collet to Table

Vertical Travel = 7-1/2''

Dust Collection = (1) 3'' @ 245 CFM

Dust Port Out = 3''

Emergency Stop = Push Button

Guarding = High Visibility Guarding

Operation Style = Pneumatic Foot Pedal

Fence Type = Adjustable Fence

Fence Dims. = 2-1/2'' x 40''

Tiltable = 45 Degrees

Frame Const. = 3/8 Steel Construction

Worktable Dims. = 39-3/4'' x 35-1/2''

Table Const. = Machined Steel

Decible Rating = 73 Db

Net Weight = 1462 Lbs.

Gross Weight = 1647 lbs.

Machine Dims. = 40'' x 62'' x 64''

Packaging Dims = 44'' x 66'' x 71''
