Descripción

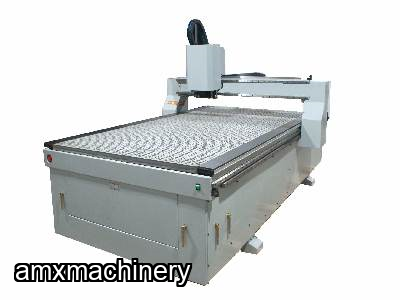

PARTE: 2TA-P-0408 - ROUTER CNC - MESA 4' X 8' - MOTOR 3 HP - CON MESA DE VACIO
All “SERVO MOTOR” driving system
PC base CNC controller is set up to accept standard G code programming formats along with on board conversational applications.
User friendly IC Control System powerful closed positioning loop software with Ethernet interface for data transfer from PC.
All axis are driven by brushless type high torque AC servo motors
Optional CAD/CAM system can create and edit part programs then send to machine for cutting easily. DXF files can be imported, modified and edited from here to create a G code.
DNC is no longer required as the PC directly stores all part programs in a text editable file.
Machine designed ready for 3-D cutting usage and superior performance.
Moving gantry construction for space saving.

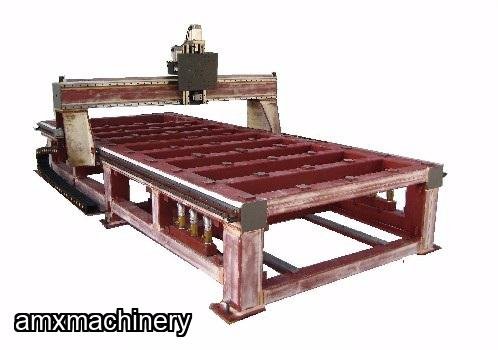

The rigid steel frame construction has been stress relieved prior to finish machining to provide repeatability and accuracy.
The HSD spindle uses CP4 DB bearings with a dust free design. The Heavy-duty fan cooling system forces air through the spindle to assist in trouble free operation.
Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

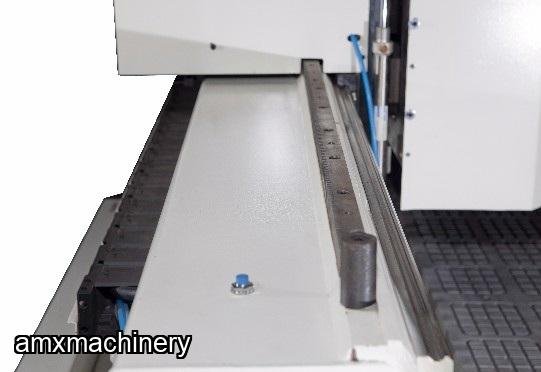

Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.

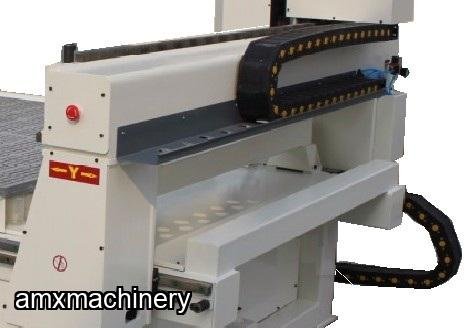

The X & Y axis are equipped with a precision rack & pinion driving system

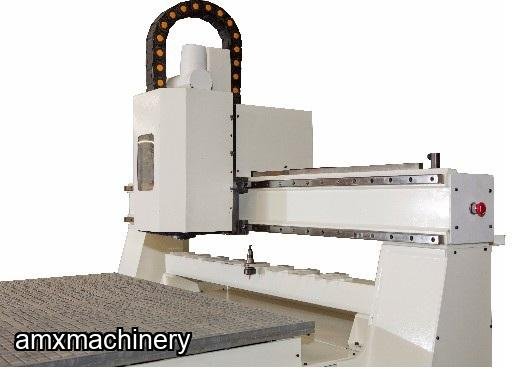

The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.
Special design 6 zone vacuum table surface for powerful hold down
Pneumatic slide dust hood and central lubrication to extend the life of the linear guide ways and highest accuracy.
”I” series machine comes with mobile pendant control panel for operator convenience.
MODEL NO. | P-408 | M-408 | M-510 | I-408 | I-510 |
TABLE SIZE | 49” X 97” | 49” X 98” | 61” X 121” | 49” X 98” | 61” X 122” |
MAX. WORKING SIZE |
|
|
| ||
X AXIS | 48” | 49” | 61” | 50” | 62” |
Y AXIS | 97” | 97” | 121” | 98” | 122” |
Z AXIS | 4” | 6” | 6” | 8-1/2” | 8-1/2” |
RAPID SPEED |
|
|
| ||
X AXIS | 1200 IPM | 1400 IPM | 2000 IPM | ||
Y AXIS | 1200 IPM | 1400 IPM | 2000 IPM | ||
Z AXIS | 800 IPM | 1000 IPM | 1400 IPM | ||
SPINDLE (AIR COOLING) | ER-32 Collet | Quick Release | Quick Release | ||
SPINDLE POWER | 5.5 KW | 8.8 KW | 8.8 KW | ||
SPINDLE (RPM) | MAX 18,000 | MAX 24,000 | MAX 24,000 | ||
TOOL HOLDER | NA | ISO 30 | ISO 30 | ||
TOOL COLLET | ER-32 | ER-32 | ER-32 | ||
TOOL CHANGE (ATC) | NA | 8 Tools Linear | 8 Tools Linear | ||
AXIS DRIVING MOTOR | AC SERVO | AC SERVO | AC SERVO | ||
PC CONTROLLER | IC | IC | IC | ||
VACUUM ZONE | 4 | 4 | 6 | 6 | 6 |

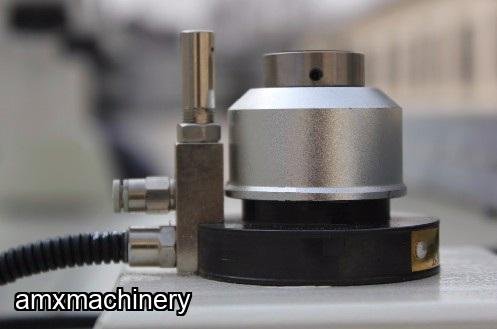

AUTO TOOL LENGTH | NA | OPT | YES | ||
POWER (NO PUMP) 3PH | 220V 30 AMP | 220V 30 AMP | 220V 45 AMP | ||
AIR CONSUMPTION 90PSI | 15 CFM | 15 CFM | 15 CFM | ||
DUST PORT | 5” X 1 | 5” X 1 | 5” X 1 | ||
MPG HAND WHEEL | OPTIONAL | OPTIONAL | OPTIONAL | ||
PNEUMATIC STOP | OPTIONAL | OPTIONAL | OPTIONAL | ||
VACUUM PUMP / BLOWER | OPTIONAL | OPTIONAL | OPTIONAL | ||
NESTING SOFTWARE | YES | YES | YES | ||
CAD/CAM SOFTWARE | OPTIONAL | OPTIONAL | OPTIONAL | ||
