RECIPROCANTE 43"

PARTE # 2TA-TS-HACDE – RECIPROCANTE – 43” ANCHO

Nueva con garantia

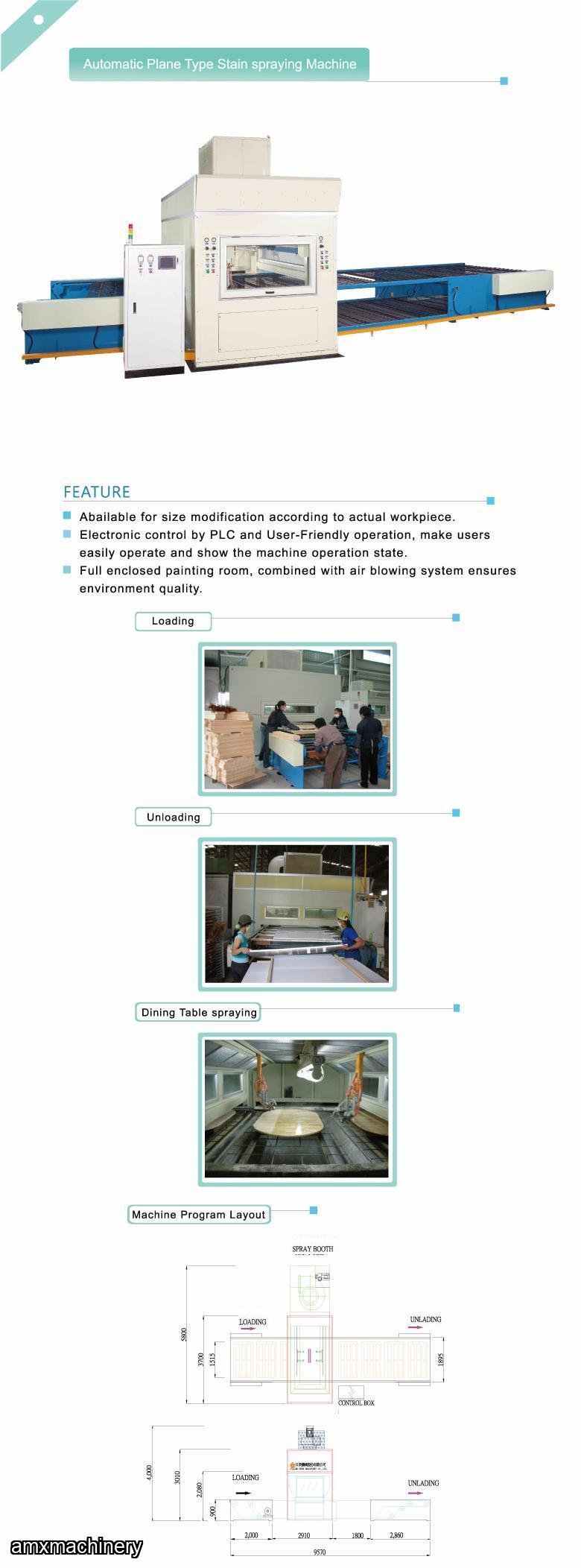

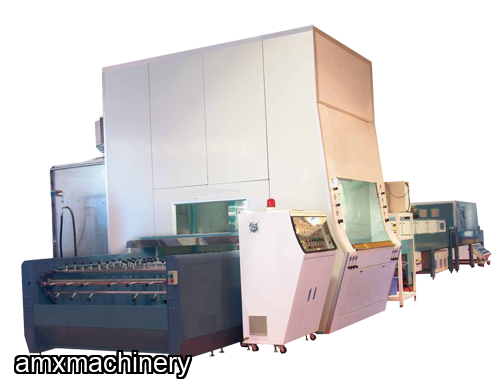

Auto Clean Flat-Line Spray Machine

Technical data: (Each Set)

A. Machine Size L6442 x W3700 x H2700mm

B. Conveyer 1 lot

- Loading Conveyer Belt & roller type

- Spray Conveyer Belt type

- Belt Cleaning Unit (for over spray cleaning)

- Conveyer Speed 1~4M/min

- Speed Control Inverter

C. Reciprocator 1 lot

- Power 2KW

- Speed 1~1.8M/sec.

- Speed Control Servo Motor

- Valuable Stroke 1100mm

D. Spray Booth 1 lot

- Size L2250 x W3700 x H2700mm

- Partition Plank (coating on side of plate, the PU foam inside)

- Lighting 40W x 2 (flame-proof lamp)

- Natural air

E. Drying Booth 1 lot

- Material Galvanized sheet

F. Control System 1 lot

- Control Box

- PLC Control

- Touch screen

Option:

Jet Air Clean Set

Feeding Air for Booth

-blower 1 lot

- extended surface bag filter 1 lot

- W-pre disposable pleated air filter 1 lot

- ceiling filter 1 lot

Scantec

- To figure out the shape of workpieces and deliver the information to the PLC system

for sprays controlling.

Air Spray Gun & Pump

-Air Spray Gun 4pcs (IWATA WA100)

-1:1 Diaphragm Pump 1 set

Air-mix Gun & Pump

-Air-mix Gun 4pcs

-Mid-pressure pump 1 set (WIWA)
