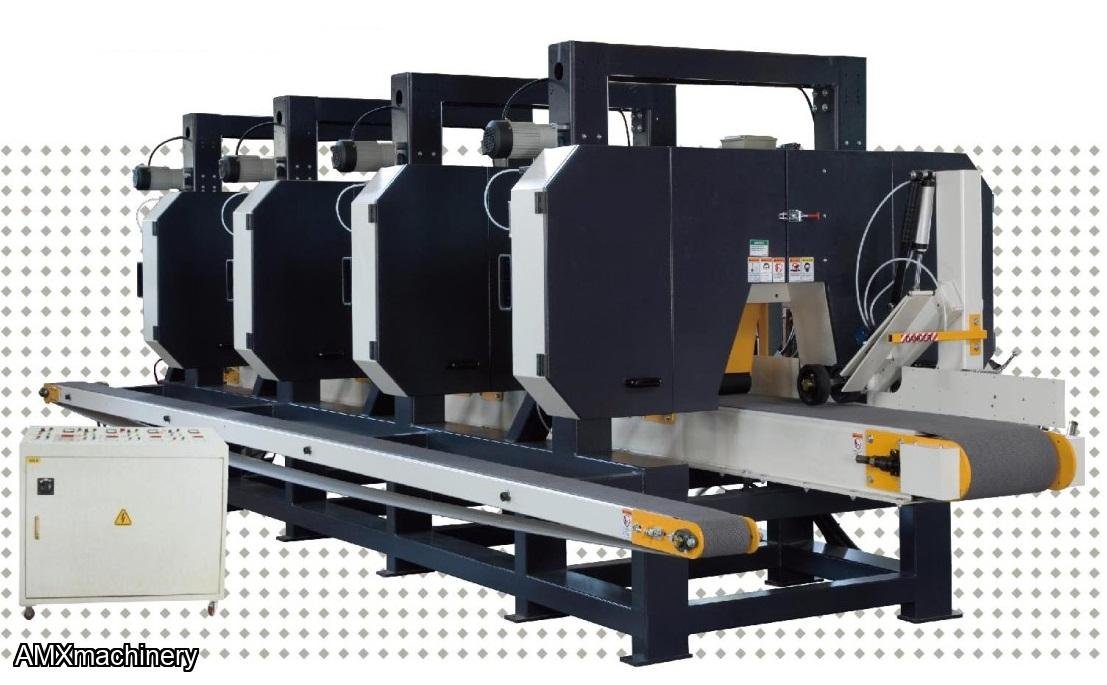

REASERRADORA HORIZONTAL – 4 SIERRA BANDAS – CON REGRESADOR

PARTE: 3HP-HP-400-4 - REASERRADORA HORIZONTAL – 4 SIERRA BANDAS – CON REGRESADOR

Nueva con garantía

Para mas informacion, solicite una cotizacion detallada,

1.With Digital Readout

2.Max. Workpiece Size: 400mm(W) x 250mm(H)

3.Conveyor Belt Size: 385mm(W) x 14840mm(L)

4.Saw Wheel Dimension: Φ28" x 2"(Thickness)

5.Saw Blade Size: 208"(L) x 2"(W)

6.Dust Hood Diameter: 4" x 8

7.In-feed Speed: 4-20M/min

8.Cutting Size: 4-250mm(T)

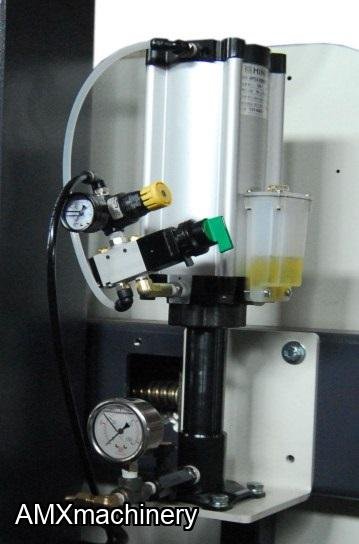

9.Saw Blade Tensioning by Hydraulic Compensation System

10.Main Motor: 30HP x4

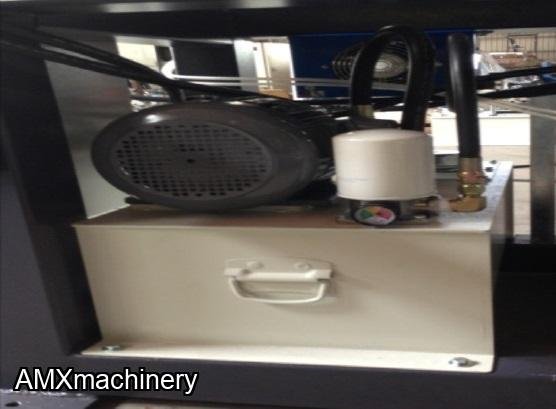

11.Hydraulic Motor: 3HP

12.Elevation Motor: 1/4HP 6P x4

13.Machine Dimensions/Weight: 5700 x 2130 x 2000mm /6800kgs

Packing Dimensions/Weight: 5760 x 2230 x 2160mm /7000kgs

14.Mist Coolant System

15.Air Cylinder Hold Down Pressure Roller

16.Min. Length of Working Piece: 600mm

17.With Inverter Motor: 30HP x4

18.Rubber Pressure Roller

19.With Return Conveyor

20.Saw kerf: 1.35mm

21._______Volt, _______Hertz

Accuracy of cut: - 0.1 mm

Production parameters: continuous production

Oak Laminated board

Humidity 50-80%

Length 400 - 2300

Width 100-300

Thickness up to 4-7mm

In feed speed 7-10 M/min.

8 hrs. / per day

22 days/ per month

Production 225-300 m^3/month
