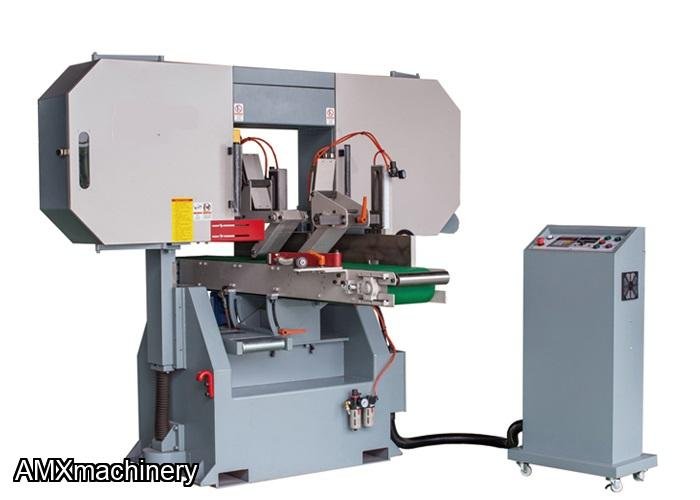

REASERRADORA HORIZONTAL - 30 HP - 10.5” ANCHO

PARTE: 3SW- HBR-300 - REASERRADORA HORIZONTAL - 30 HP - 10.5” ANCHO

NUEVA CON GARANTIA

Specifications

Maximum Material Size (W X H): 12"x 12 "(300x300 mm)

Distance From Blade To Conveyor: 5/64"~10-5/8"(2~270mm)

Minimum Cut Piece: 2mm

Saw Wheel Diameter: 28" x2(700mm x2)

Sawblade Length: 196"(4980~4990mm)

Sawblade Width: 2" OPTION 3"(50mm OPTION 75mm)

Conveyor Belt Sizes(Wxl): 270 x 4200mm

Sawblade Speed: 25.4m/s

Feed Motor: 1HP WITH INVERTER

Feed Conveyor Tilt: 0~30 DEGREE

Feed Speed (Variable): 0~18 m/min

Conveyor Height From Floor: 40"(1016 mm)

Saw Wheel Motor: 20 HP

Blade Lift Motor: 1/2 HP

Dust Hood Outlet Diameter: ø4"x2

Machine Dimensions (L X W X H): 2235 x 2180 x 1880 mm

Packing Dimensions (L X W X H): 2450 x 2250 x 2200 mm

Net Weight: 1355KGS

Gross Weight: 1480KGS

STANDARD EQUIPMENT

1.HYDRAULIC BLADE TENSION SYSTEM

2.BLADE LIFT DIGITAL CONTROL

3.OIL MIST COOLING SYSTEM

4.SAWBLADE x 1 PC

5.TOOL BOX WITH SERVICE TOOLS

OPTION

1.PLC CONTROL WITH TOUCH SCREEN
