ID: 1270
Open
Description
PARTE: 3HP-HP-11P - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM ALTO
Con sistema de control hidráulico
Nueva con garantía
Specifications:
1.With digital readout
2.Max. workpiece size: 300mm(W) x 250mm(H)
3.Distance from blade to conveyor Table: 3-125mm
4.Conveyor belt size: 285mm x 5470mm
5.Saw wheel dimension: Φ28" x 1"(Thickness)
6.Max. infeed speed: 16M/min OPTIONAL: 25M/min.
7.Saw blade size: 168" x 1"
8.Saw wheel motor: 20HP
9.Controlling blade tension: Hydraulic system
10.Hydraulic system: Motor 3HP / Infeed conveyor table by hyd. motor
11.Gear box motor: 1/4HP
12.Dust hood diameter: ψ4" x4
13.Net weight: 1108kgs
14.Packing dimensions with pallet:
- Frame : 2170 x 1100 x 1120mm / 901 KG
- Conveyor: 2870 x 620 x 750mm / 207 KG
15.Min. working length request: 400mm (shorter length upon request)
16.Pneumatic pressure roller system for accurate cutting
17.Front pressure roller with air cylinder and shock absorber
18.Tolorance: ±0.1ｍｍ
19.Mist coolant system & saw dust scraper
20._______Volt, _______Hertz
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express
Post Message
Sign in to ask the seller a question.
AMXmachinery

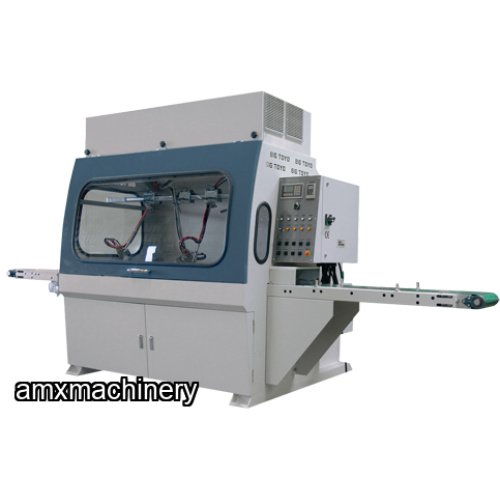

CASETA PINTURA CONTINUA PARA MOLDURAS
PART # 2TA-TS-12ATSP – CASETA DE PINTURA CONTINUA PARA MOLDURASNueva con garantíaFeatures:PLC control for easy operator and variability setup.Fast spraying processing for profiles strips and two edges together or four edges at panels by one pass.The spray guns are controlled by photocell sensor for auto spray time and saving the spray material.Individual painting volume adjustment control for each spray gun.Variable feed speed control for the best finish result.Two trays to collect unused pai...
AMXmachinery
PARTE: 1SL-DC-DC2045 - COLECTOR DE POLVOS 5 HP
PARTE: 1SL-DC-DC2045 - COLECTOR DE POLVOS 5 HPNUEVO CON GARANTIAMOTOR: 5 HP, 220V, 3 FASES, 60 HZCAPACIDAD DE SUCCION: 2,500 CFMNUMERO DE BOLSAS Y FILTROS: 2PESO: 80 KGSTIPO DE EMPAQUE: 1 CAJA
AMXmachinery

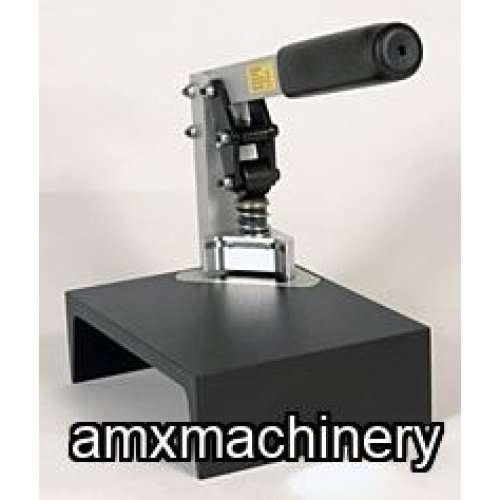

CORTADORA ESQUINAS
