ID: 1267
Open
Description

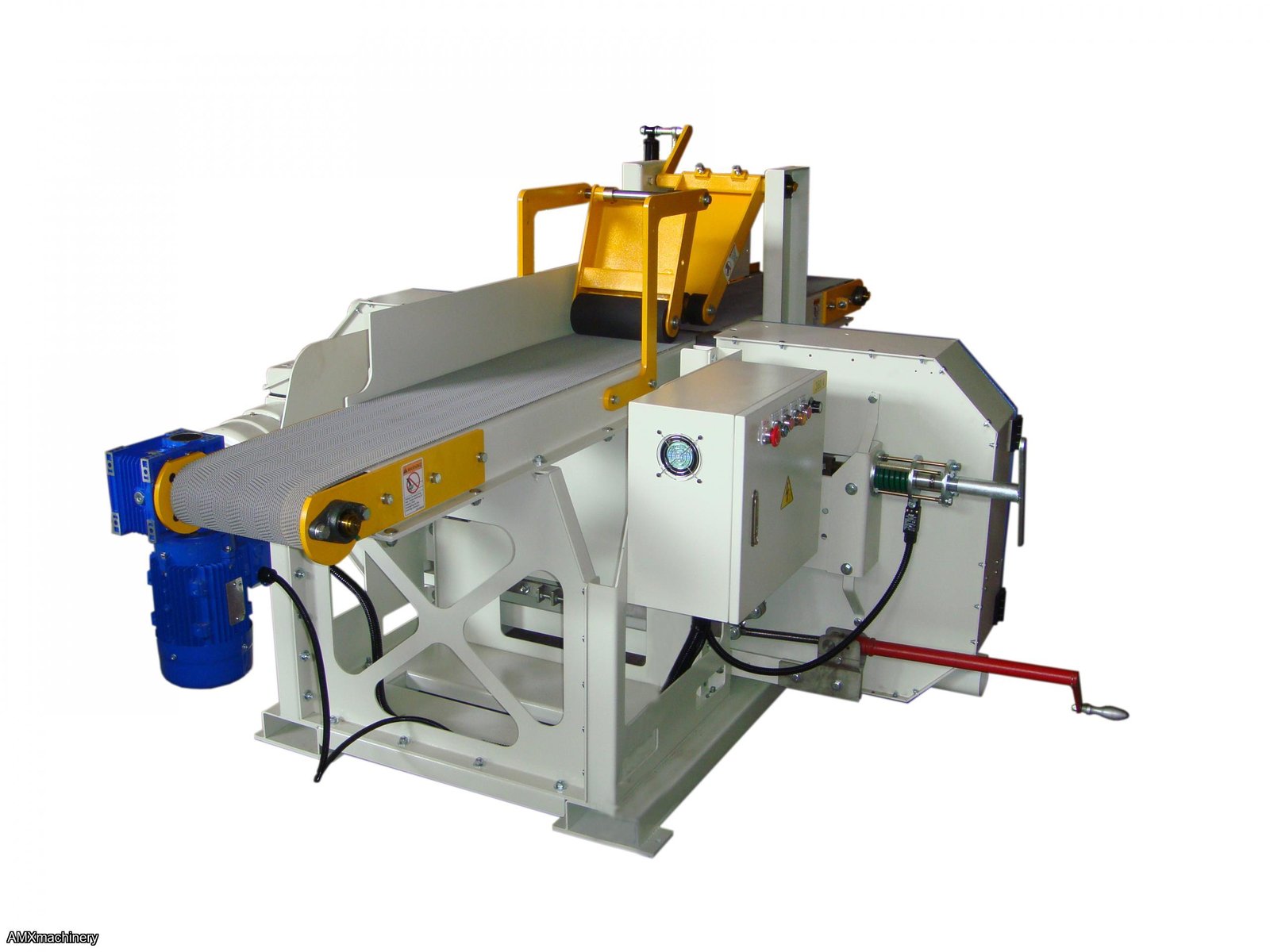

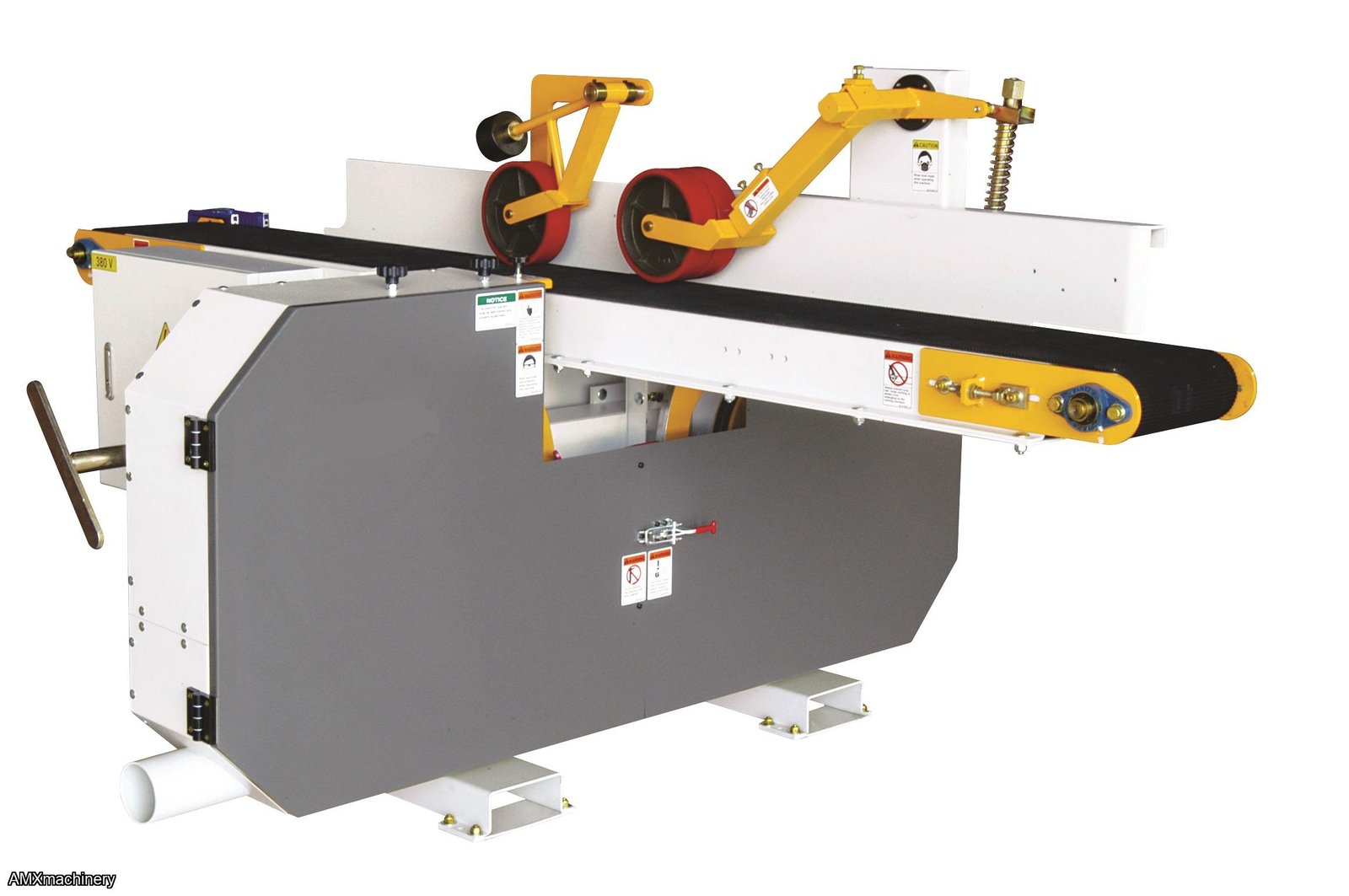

PARTE: 3HP-HP-12E - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM ALTO
Nueva con garantía
Specifications:
1.Max. workpiece size: 300mm(W) x 250mm(H)
2.Distance from blade to conveyor Table: 4-125mm
3.Conveyor belt size: 285mm x 5470mm
4.Saw wheels dimension: Φ28" x 1"(Thickness)
5.Feed speed: 5-25 M/min
6.Saw blade size: 168" x 1"
7.Saw wheel motor: 20HP
8.Conveyor motor: 2HP motor with 30:1 gear box and 2HP inverter
9.Inverter controls conveyor feed speed
10.Dust hood diameter: ψ4" x4
11.Net weight: 901 KG
12.Packing dimensions with pallet:
- Frame: 2170 x 1100 x 1120mm / 901 KGS
- Conveyor: 2870 x 620 x 750mm / 207 KGS
13._______Volt, _______Hertz
