Identificador: 1171
Abierta
Descripción

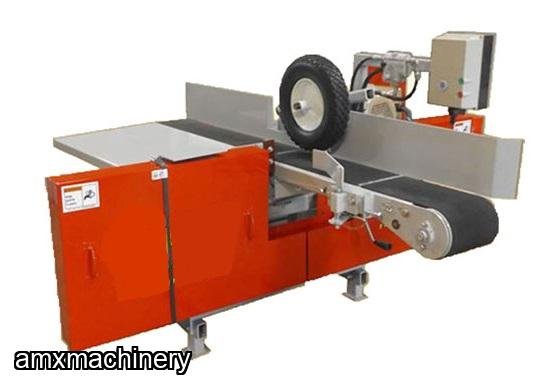

PARTE: 2FA-RE6X12 - REASERRADORA HORIZONTAL – 1 SIERRA – ANCHO 12”
NUEVA CON GARANTIA
The widest cutting resaw available in our line of products.
If your looking for a low cost solution to cutting up to 12" wide material, look no further.
These saws are equipped with 20HP motors and 10" wide conveyor belts.
Standard Features
Air Tensioned Blade System
Enclosed Hydraulic System
Easy Height Adjustment
Machine Specs
Dimensions
Length: 84"
Width: 84"
Height: 48"
Feed Belt Height: 34"
Power
20 HP Electric Motor: 208/230/480/3/60 TEFC
Completely pre-wired motor starter with start/stop buttons and circuit overload protection
Specifications
4" Dust Connection (400 cfin)
Approx. 1500 lbs
Uses 15'1" Bands (3/4" to 1-1/4" Wide)
Top Mounted Roller Hold Down
Heavy Duty 2-7/16" Arbors & Bearings
20" Band Wheels
Self Contained Hydraulic System with Variable 0-120 Feed Per Minute Feed Speed
3" Tall Right Side Fence
Capacities
Board Width: up to 12"
Board Thickness: 1/4" - 6"
Board Length: Unlimited
Options
Power Options
22 HP Honda Gas Motor
30 HP Kubota Diesel Motor
Line Shaft: Available Without Power Set to Run off Line Shaft
Single Phase 10 HP
Machine Options
Taller Fences
Custom Conveyor Length
Powered Hold Down
Roller Guides
Larger Band Wheels
Air Tensioned Hold Over Plate
System Options
Tailing Belt
Guide Surfacing Machine
Cant Sizer
Merry Go Round Return
Green Chain
Shingle Belt
Infeed/Outfeed Powered Roller Case
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
