Identificador: 283
Abierta
Descripción

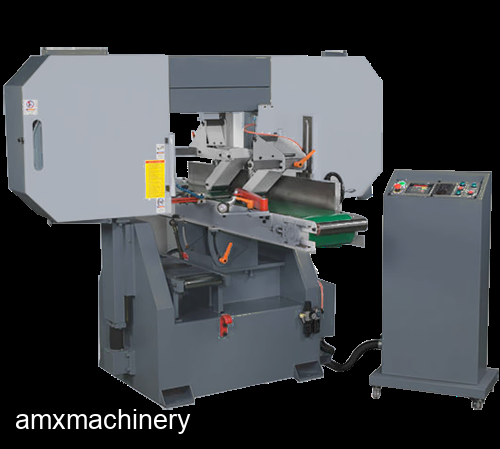

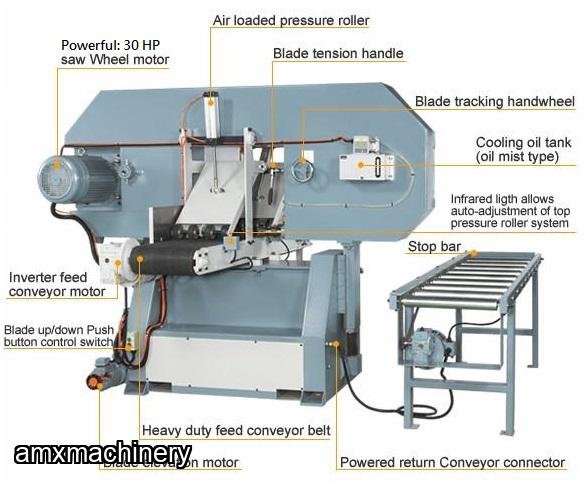

PARTE # 2TA-BS-1212HR - REASERRADORA HORIZONTAL – 1 SIERRA
NUEVA CON GARANTIA
- Machine was built with ruggedly constructed throughout for maximum stability, high precision cutting and minimum trouble.
- It is equipped with a digital controller for convenient and accurate thickness setting.
- The feed conveyor has a tilting design allowing for maximum 30 degree bevel cuts.
- When the feed conveyor is tilted for bevel cutting a side support is applied for safe and stable cutting operations.
- Variable feed speed is controlled by a frequency inverter for best cutting requested.
- The infeed and outfeed pressure rollers are easily raised or lowered by a gear rack.
- The infeed and outfeed pressure rollers are spring loaded and easily adjusted for the horizontal or vertical direction to suit various workpiece thicknesses.
- Blade tension is adjusted by means of a hand wheel.
- A tension scale allows the operator to correctly adjusted the tension for different blade thickness.
- The cast iron saw blade wheel are dynamically balance for smooth running.
- Blade guard is easily lifted up, supported by two nitrogen gas cylinders for convenient blade change.
- The roller type return conveyor equipped at left side of the machine provides easily repetitive cutting.
| Specifications | BS-1212HR |
|---|---|
| Max. Cutting Capacity | 12" x 8" (300 x 200 mm) |
| Minimum Cut Piece | 0.08" (2 mm) |
| Saw Wheel Diameter | 24" (600 mm) x 2 |
| Saw Blade Length | 184" ~ 184¼" (4670 ~ 4680 mm) |
| Saw Blade Width | 1¼" (32 mm) |
| Saw Blade Speed | 6000 FPM |
| Conveyor Belt Sizes (W x L) | 11" x 165" (270 x 4200 mm) |
| Feed Speed (Variable) | 0 ~ 70 m/ min |
| Feed Conveyor Tilt | 0° ~ 30º |
| Conveyor Height From Floor | 40" (1016 mm) |
| Saw Wheel Motor | 20 HP |
| Blade Lift Motor | ½ HP |
| Dust Hood Outlet Diameter | Ø4" |
| Machine Dimension (L x W x H) | 88" x 86" x 74" (2235 x 2180 x 1881 mm) |
| Packing Dimensions (L x W x H) | 91" x 88" x 80" (2300 x 2235 x 2032 mm) |
| N. W. | 2646 LBS (1200 kg) |
| G. W. | 3087 LBS (1400 kg) |
