ID: 284
Open
Description

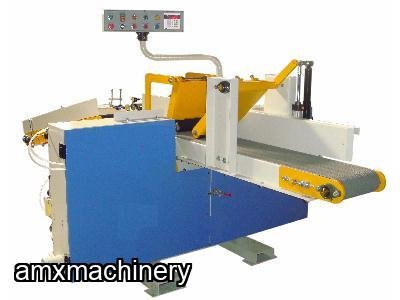

PARTE # 2TA-BS-1212BEE - REASERRADORA HORIZONTAL - 1 SIERRA
NUEVA CON GARANTIA
- Single saw head configuration.
- Manual saw wheel elevation.
- Variable feed speed by electric motor drive.
- Manual blade tension adjustment by a handle.
- Rubber pressure roller.
| SPECIFICATIONS | BS-1212BEE |
| Max. Workpiece Sizes (W x H) | 300 x 300 mm |
| Distance From Blade to Conveyor Table | 5 - 130 mm |
| Conveyor Belt Sizes | 285 x 5470 mm |
| Saw Wheel Diameter | 28" x 1" (W) |
| Feed Speed | 5 - 25 m/min |
| Saw Blade Size | 168" x 1" |
| Saw Wheel Motor | 20 HP |
| Conveyor Motor | 2 HP |
| Dust Hood Diameter | 4 x 3 |
| Conveyor | 2870 x 640 x 700 mm |
| N. W. | 1000 kgs |
| Packing Dimensions-Frame | 2180 x 1140 x 1140 mm |
