Identificador: 1555
Abierta
Descripción

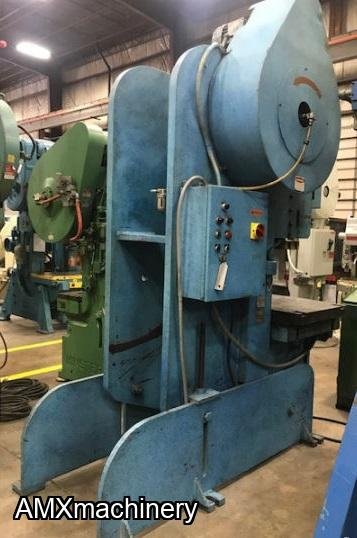

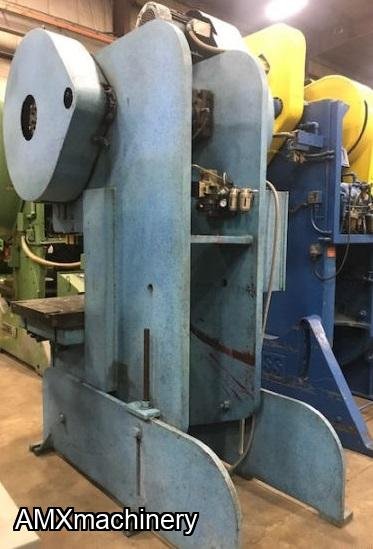

PARTE: 12323 - PUNZONADORA - 120 TON
USADA - BUENAS CONDICIONES
Model: 12-A-OBI-BG
Air clutch & brake
Back geared type
Stroke: 8"
Slide adjustment: 4"
Shut height S.D.A.U.: 15-1/2" to top of bed
Area of bed: 40" L-R x 30" F-B
Bolster thickness: 4"
Area of slide: 19" L-R x 13" F-B
Shank hole diameter: 2-1/2"
Throat depth: 16"
Opening through back: 20"
Floor to top of bed: 38"
S.P.M. approx.: 45
EQUIPPED WITH: Dual sensor buttons for run with
emergency & top stop button
Electric foot switch
Pushbuttons for start - stop
Key selector switch for inch - off -
single stroke - continuous
Selector switch for palm - foot
Brake monitor
Bijur one shot oil lubrication
Knockout shot in slide
Inclining mechanism
Production counter
10 HP 1745 RPM 230/460/3/60 motor
Weight approx. 14,500 lbs.
Overall dimensions approx. 53" L-R x 92" F-B x 120.5" H
