Descripción

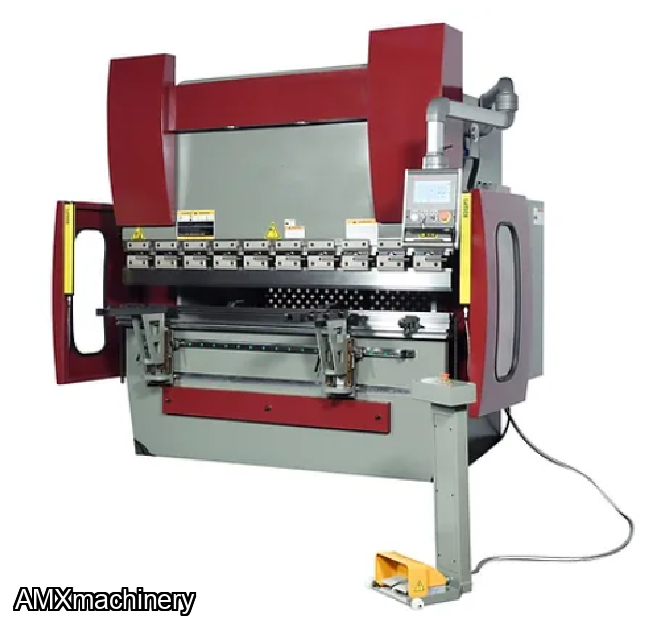

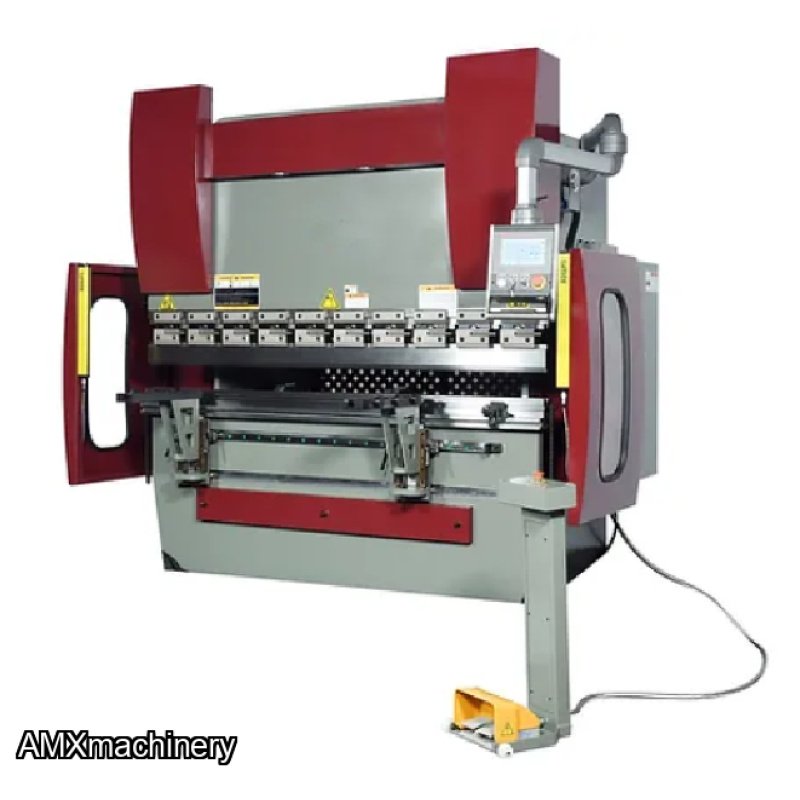

PRENSA CNC 70 TONELADAS 6' PARTE: 2GM-HPB-7006CNC-3R
Our 70 ton press brake are equipped with a three axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard
- ESA (Italy) Model 630, 3 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct
- 10” Touch screen
- 3 Axis CNC Graphic Controller
- Y axis Ram with high precision linear encoder
- X servo Back gauge
- R programmable Back gauge height
- Line by line coding
- 2D Graphic Drawing Mode
- Bend Sequence Optimization for collision detection
- Spread Length Calculation
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
- ESA (Italy) Model 630, 3 Axis CNC Controller
- (2) 24” front support arms, Quick Release for easy positioning
- Quick release segmented (American Style Tooling) punch holder
- Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
| Maximum Pressure | 70 Tons |
| Bending Lenght Capacity | 80" (6'8") |
| Distance Between Uprights (housing) | 63" |
Ram Stroke Travel Cylinder Travel Adjustment (max) | 6" 3 1/8" |
| Table Width | 6" |
Distance Between Table and Ram Max Stacked Tooling Height | 15 1/4" 8-1/2" |
| Throat Depth | 10" |
| Back Gauge Distance | 24" |
| Back Gauge Repeatability | .0039" |
| Y-Axis Repeatability | .0039" |
Approach speed, inch / second Working speed, inch / second Return speed, inch / second | 3.14” 0.35” 2.36” |
Main motor:
Servo motor for back gauge:
Servo motor for bending angle setting
|
