Identificador: 2051
Abierta
.JPG)
.JPG)
.JPG)
Descripción

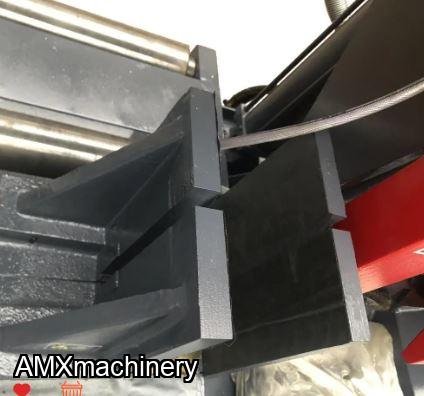

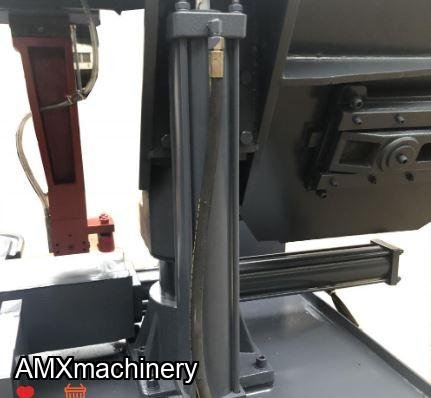

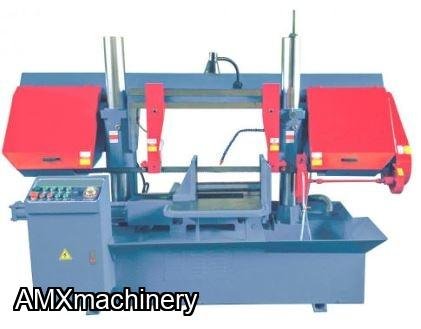

PARTE: 3AM-G-40/70S - SIERRA CINTA PARA METAL - DOBLE COLUMNA
Saw Band Tensioning Method: Manual
Core Components: Gearbox, Gear, Bearing, Engine, Motor
Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works, Energy & Mining, Food & Beverage Shops, Other
Core Selling Point: High-Accuracy
Blade Tension: Manual
Blade Speed(m/min): 27.45.80
Vice Clamping: Hydraulic with Manual
Cutting Feed: Hydraulic stepless
Max. Cutting Capacity(mm): Round:300mm, sqaure:220*350MM
Main Motor(kw): 4
Coolant Motor (kw): 0.75
Blade Size(mm): 1.1*41*4700
Hydraulic Motor(kw): 0.04
