Identificador: 25
Abierta
Descripción
PARTE: 2TA-TG-6000 – AFILADORA DE CUCHILLAS RECTAS
Nueva con garantia
Features:
Heavy-duty straight knife grinder, rapid for grinding processing and saving time.
Economical model and efficiency for processing high powerful of any straight knife grinding such as Planner & Jointer Knife, Peeling Knife, Super Surface Knife, and Veneer Cutting Knife.
Automatic grinding table movement forward and backward, label saver.
Employed with straight linear motion guides bearing to ensure longitudinal feed traverse smoothly and accurately.
The knife can be put through a coarse wheel grinding, then a fine wheel grinding for sharpening the knife edge again to obtain the super sharp edge and extend the cutting life of the knife.
Built in coolant pump for faster grinding.
Heavy sheet metal cabinet stand and cast iron body.
High precision and durability.
SPECIFICATIONS | 2TA-TG-3000 | 2TA-TG-5000 | 2TA-TG-6000 |
Grinding Capacity |
|
|
|
Cutter (Dia. x W) | 9" x 8" | N/A | N/A |
Carbide Saw (Dia. x T) | 20" x 3/8" | N/A | N/A |
Carbide Knife (L x W x T) | 12" x 1½" x ¼" | 25" x 3" x 5/8" | 25" x 3" x 5/8" |
Router Bits (Shank) Max. | ½" | N/A | N/A |
Grinding Wheel Size | 6" x 5/8" | 4" x 2" x 5/8" | 10" x 2/3" x 1" |
Grinding Head Travel | 14" | 26" | 26" |
Grinding Wheel Speed | 5000RPM | 1700 RPM | 1700 RPM |
Fine Grinding Wheel Size | N/A | --- | 4" x 2" x 2" |
Grinding Wheel Motor | 1 HP | ½ HP | 1 HP |
Fine Wheel Motor | N/A | --- | --- |
Table Size | 28' L x 8" W | 26" L | 27" L |
Table Travel | 20" x 7" | (Wheel) | 28" |
Table Travel Motor | --- | ¼ HP | ¼ HP |
Coolant Pump Motor | 1/8 HP | N/A | 1/8 HP |
N.W. (LBS) | 748 LBS | 340 LBS | 660 LBS |
G. W. (LBS) | 924 LBS | 430 LBS | 836 LBS |
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12644 - SISTEMA EXTRACCION - EXTERIOR - 40 HP
PARTE: 12644 - SISTEMA
EXTRACCION - EXTERIOR - 40 HP
USADA - BUENAS
CONDICIONESExtractor 40 HP,
440 voltsIncluye:
Ciclón, tubería,
tolva con puerta corrediza eléctrica
AMXmachinery
PARTE: 12629 - CONTORNEADORA – 2 FRESADORAS - BALESTRINI – MINI C
PARTE: 12629 - CONTORNEADORA – 2 FRESADORAS - BALESTRINI –
MINI C
USADA – BUENAS CONDICIONES
AMXmachinery
PARTE: 12425-2 - COSEDORA DE CHAPA KUPER
PARTE: 12425-2 - COSEDORA DE CHAPA KUPER
USADA – BUENAS CONDICIONES
Modelo FW 1150
Año Fabricación 1995.
Espesor máximo de chapa para coser 2mm.
Uso de hilo de marca kuper con hotmelt para hacer el
pegado de la chapa.
Velocidad de avance variable dependiendo de la tersura
o rugosidad de la chapa, espesores, etc.
AMXmachinery

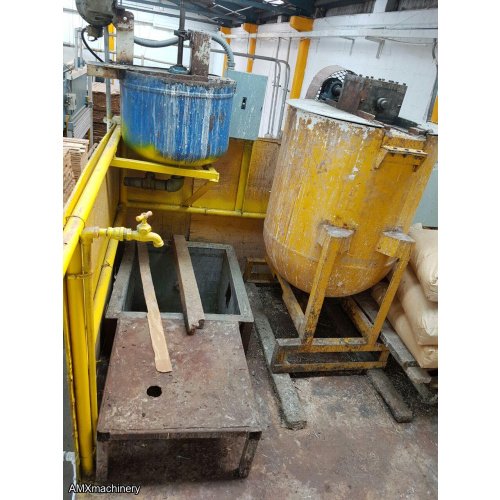

BATIDORA - 240 KG CAPACIDAD
PARTE: 11757 - BATIDORA - 240 KG CAPACIDAD
6 - BATIDORA. BATIDORA MARCA IND. G.H. ACCIONADA POR
UN MOTOR DE 3 HP Y MOTORREDUCTOR DE 15 HP CON CAPACIDAD DE BATIDO DE 240 KG POR
PREPARACION.
