ID: 24
Open
Description
PARTE: 2TA-TG-5000 – AFILADORA DE CUCHILLAS RECTAS
Nueva con garantia
Features:
Heavy-duty straight knife grinder, rapid for grinding processing and saving time.
Economical model and efficiency for processing high powerful of any straight knife grinding such as Planner & Jointer Knife, Peeling Knife, Super Surface Knife, and Veneer Cutting Knife.
Automatic grinding wheel movement forward and backward, label saver.
Heavy cast iron body.
High precision and durability.
SPECIFICATIONS | 2TA-TG-3000 | 2TA-TG-5000 | 2TA-TG-6000 |
Grinding Capacity |
|
|
|
Cutter (Dia. x W) | 9" x 8" | N/A | N/A |
Carbide Saw (Dia. x T) | 20" x 3/8" | N/A | N/A |
Carbide Knife (L x W x T) | 12" x 1½" x ¼" | 25" x 3" x 5/8" | 25" x 3" x 5/8" |
Router Bits (Shank) Max. | ½" | N/A | N/A |
Grinding Wheel Size | 6" x 5/8" | 4" x 2" x 5/8" | 10" x 2/3" x 1" |
Grinding Head Travel | 14" | 26" | 26" |
Grinding Wheel Speed | 5000RPM | 1700 RPM | 1700 RPM |
Fine Grinding Wheel Size | N/A | --- | 4" x 2" x 2" |
Grinding Wheel Motor | 1 HP | ½ HP | 1 HP |
Fine Wheel Motor | N/A | --- | --- |
Table Size | 28' L x 8" W | 26" L | 27" L |
Table Travel | 20" x 7" | (Wheel) | 28" |
Table Travel Motor | --- | ¼ HP | ¼ HP |
Coolant Pump Motor | 1/8 HP | N/A | 1/8 HP |
N.W. (LBS) | 748 LBS | 340 LBS | 660 LBS |
G. W. (LBS) | 924 LBS | 430 LBS | 836 LBS |
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Post Message
Sign in to ask the seller a question.
AMXmachinery
PARTE: 12638 - ROUTER CNC - MESA - 4 X 8 PIES - LAGUNA
PARTE: 12638 - ROUTER
CNC - MESA - 4 X 8 PIES - LAGUNA
USADO - MUY BUENAS CONDICIONESSpecificationsNumber of Axis: 3Table Width: 48"Table Length: 96"Table Hold Down: VacuumVacuum Zones: (4)Spindle Mfg: HITECOSpindle Motor: 5 HPTool Changer: (8) Position Linear Tool RackZ-Axis Travel: 13"Control: Syntec Control SystemSoftware: Rich Auto Features: Hand Held Controller
(1) Becker Vacuum Pump (2022)
AMXmachinery

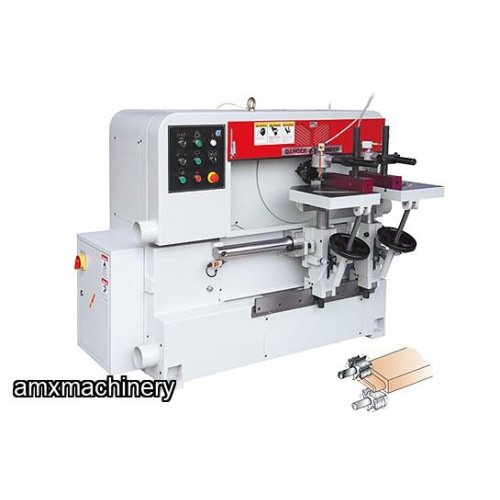

ESPIGADORA 2 MESAS
PARTE: 2TA-SET-100 - 3YC-YRT-115 - ESPIGADORA - 2 MESAS - AMX MACHINERYNueva con garantiaBuilt with two working tables for high efficiency operations.Table longitudinal traverse is pneumatic operated for smooth cutting.Tenon’s width is easily adjustable by hand wheel.Convenient tenon depth adjustment from outside without removing covers.Table can be tilted to 20 degrees at each side for angular tenon.Cutter moving speed is infinitely adjustable to achive the best results.Pneumatic hold down c...
AMXmachinery
COMPRESOR TORNILLO - COMPACTOS
COMPRESORES DE TORNILLO CON TANQUE - 3 HP - 50 HP Nuevo con garantíaPresión de Trabajo Estándar: 8-10 BARArrancador MagnéticoCabina Acústica65 - 70 DecibelesTransmisión por Poleas y BandasPos enfriador Tipo RadiadorMicroprocesadorSecador refrigerativoPre y Pos Filtro CODIGOTANQUEVOLTSHPFASESACFMCABEZALDC-3V180-TSM 180 LTS 2203311SMARTIIKDC-3V180-TSM 180 LTS 2203111S...
AMXmachinery
PARTE: 12598 - UNIDORA SABANAS CHAPA - FISHER+RUCKLE FZL-34 DELTA
PARTE: 12598 - UNIDORA SABANAS CHAPA - FISHER+RUCKLE FZL-34 DELTAUSADA – BUENAS CONDICONESFISHER+RUCKLE FZL-34 DeltaVeneer crossfeed splicing machine with pre-glued veneer sheetsVeneer strip length (in fiber direction) 750 - 3400 mm Veneer strip width (cross to fiber direction) 70 - 600 mmVeneer strip thickness (depending on veneer) 0.3 - 1.5 mmEC standardsYear 1998400V/50HzComplete of:- INTERMEDIATE CONVEYORThe intermediate conveyor serves at the same time as buffer to avoid dead times durin...
