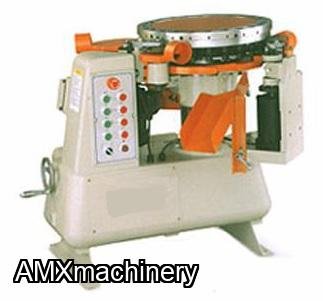

PARTE: 2TA-DC7500 - CORTADORAS DE PERNOS - ¼” - ¾” - PARA HACER TAQUETES RAYADOS - ALTA VELOCIDAD
AMXmachinery
Description
PARTE: 2TA-DC78 - CORTADORAS DE PERNOS - ¼” - ¾” - PARA HACER TAQUETES RAYADOS
NUEVA CON GARANTIA
Features:
High production, high speed.
Can auto sift out dowel which length is insufficient.

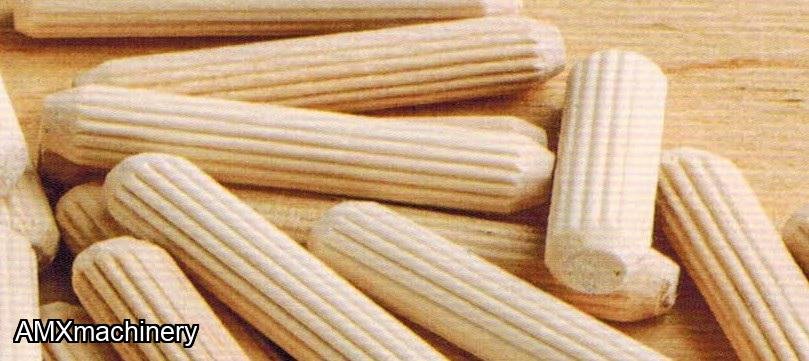

Each spiral fluting, straight fluting, smooth and dowels with dowel cross-cut and chamfering from DC-7500.
Capacity: about 7,500-15,000 dowels/hour with infinitely variable speed change.
Cutting length range: 30-150 mm.
Accuracy turbine and turbine shaft perform feeding transfer, lubrication for transfer parts in oil box to increase prolonged the serving life.
Chamfering cut off and feed drives each with a separate motor.

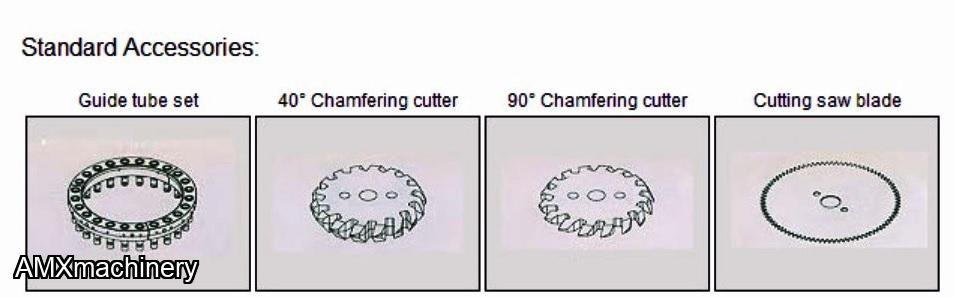

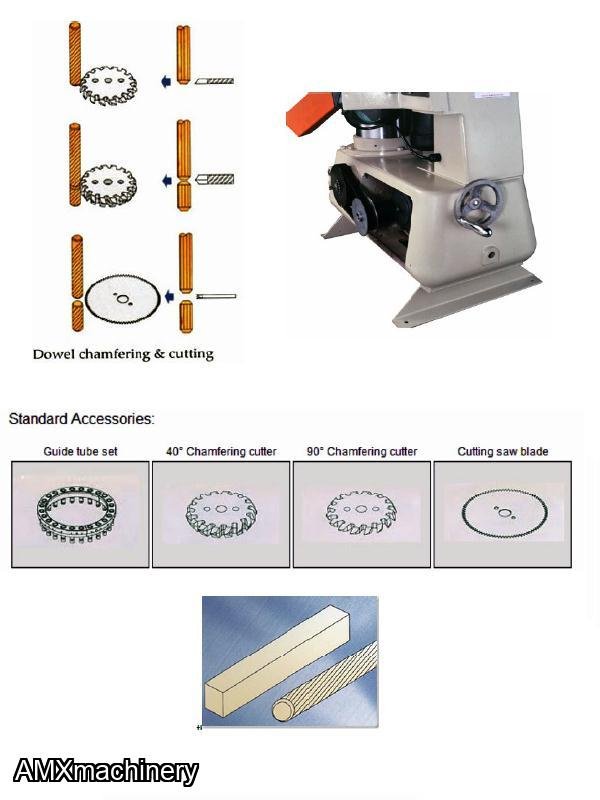

Has 2 sets chamfering cutter perform double end chamfering before dowel cross-cut.
Easy adjustable and saves time.
|
SPECIFICATIONS |
2TA-DC-7500 |
|
Range of Working Diameter |
Ø6 to Ø18 mm |
|
Minimum Cutting Length |
30 mm |
|
Maximum Cutting Length |
150 mm |
|
Capacity |
Around 7500 - 15000 pieces/ hour |
|
(Infinitely Variable) |
|
|
First Chamfering Motor |
1/2 HP |
|
Second Chamfering Motor |
1/2 HP |
|
Cutting Motor |
1/2 HP |
|
Feed Motor |
1/2 HP |
|
Machine Sizes (L x W x H) |
1000 x 700 x 880 mm |
|
Packing Sizes (L x W x H) |
1200 x 930 x 1080 mm |
|
N.W. |
390 kg |
|
G.W. |
420 kg |
