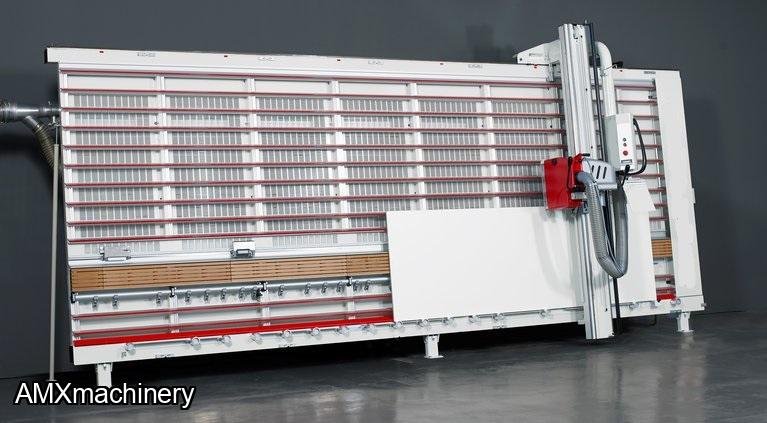

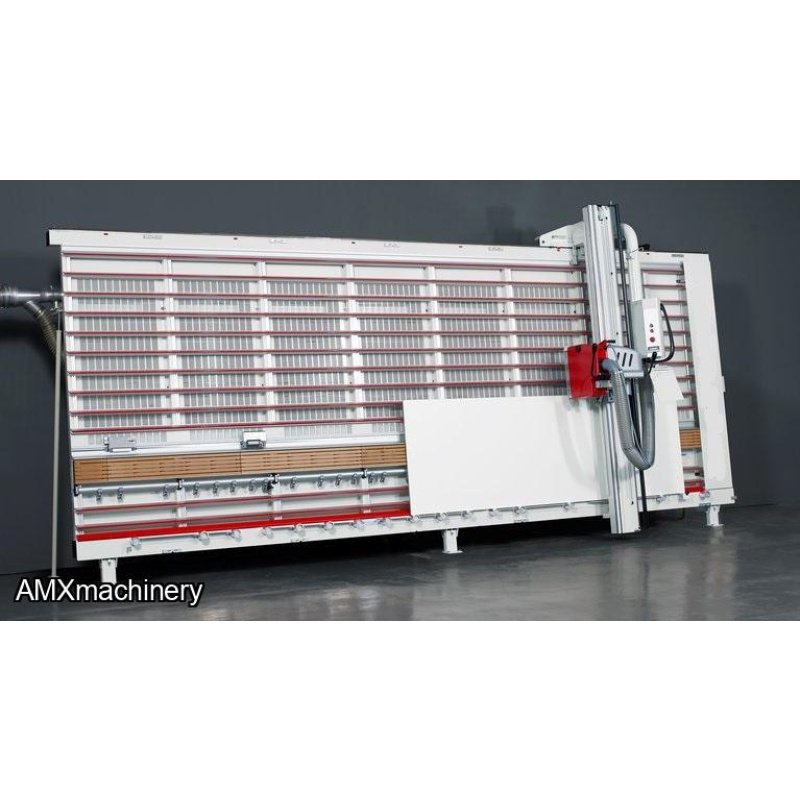

PARTE: 2ST-COMPACT-PLUS-TALL- 5207 - ESCUADRADORA VERTICAL - COMPACTA - CAP. 181” X 81” X 2-3/8”

PARTE: 2ST-COMPACT-PLUS-TALL- 5207 - ESCUADRADORA VERTICAL - COMPACTA - CAP. 181” X 81” X 2-3/8”

NUEVA CON GARANTIA

Motor 5 HP

• Swiss made quality for accuracy and durability!

• Y-axis digital measuring for horizontal cuts with kerf compensation for top down strip cutting

• One-piece fully welded frame, suitable for free-standing or wall-mount installation

• Heavy- duty support rollers with integral panel stop assembly

• Full length heavy-duty center shelf with moveable aluminum fingers

• Built-in wood small parts backing support across full length of center shelf

• Special measuring flip stop with “double-flip action” for use with small parts

• Automatic, mechanical, upward-shifting support grid to keep off-cuts from binding grid

• New, highly efficient dust system with hose enclosed in cable chain and can be run to either end of the frame;

additional port at far right end of frame; note: requires connection to a collector

• Cutting stations 40” apart (1 meter spacing available for purely metric shops-factory ordered)

• 5-1/4 hp, 3-phase motor with electric brake and noise level below 80dB

• 250 mm (9-7/8”) HFG (hollow face), 48T, carbide saw blade

• Template bar including six adjustable stops for setting common rip cuts

• Auto-engaging riving knife for safety

• “Telescoping” handle and tall panel plunge device for ease in cutting tall panels

Optional Accessories:

- VSA Scoring unit with 80mm carbide split scoring saw blades w/shims

- “Quick-set” shimless split-blade, infinitely adjustable scoring saw unit

- X-axis digital measuring stop (R to L) for vertical cuts with fine adjustment and five cut station reference points

- WSG Angle Cutting Device with “unipoint” system and fine adjustment to 1/10° for angle cuts to 46°. Storage box included.

- Locking rollers, foot pedal operation (factory ordered only)

- Snap-in aluminum small parts supports (pair) to support 8-15” tall pieces to keep bottom from kicking Out

- Repeat rip device with roller bearing & 25” capacity for top-down strip cutting

- Template bar stops for quick access to commonly set horizontal cut positions  - (6) included

- New removable clipboard under control panel to hold cutlists, etc.

- Dado/Grooving kit including shroud, depth control

- Dado cutter - adjustable width (8-15mm) (5/16”-9/16”), carbide insert type with side scoring inserts for clean edges. Dado/Grooving Kit required.

- “OptiDivide” self-contained, independent optimization and label printer package including:

- Aluminum casing with integrated 12” touchscreen panel and stylus

- Zebra label printer in integrated and protected pull-out drawer in the casing

- Striebig cut optimization software package with one office network license

- WLAN network connection

- Power supply and cables for 110VAC

- Bracket to attach to specific model

- Operating and installation manual
