PARTE: 2MA-FP-5285 - LIJADORA - CALIBRADORA DE METAL - 52" ANCHO - 1 LIJA

PARTE: 2MA-FP-5285 - LIJADORA - CALIBRADORA DE METAL - 52" ANCHO - 1 LIJA

NUEVA CON GARANTIA

Specifications:                          Model  FP-2560              FP-4075                                      FP-5285

Sanding Capacity                     24” x 6-1/8”                      40” x 6-1/8”                                 51” x 3-1/2”

Abrasive Belt Size                     25” x 60”                         40”  x  75”                                   52” x  86”

Contact Roller Size                    8” Dia.                             8” Dia.                                         10” Dia.

Passline Height                         31” – 37”                         31” – 37”                                      31” – 37”

Max. Thickness Capacity          6-1/8”                               6-1/8”                                          3-1/2”

Conveyor Drive Speeds            8-40 FPM                         8-40 FPM                                   8-40 FPM

Infeed Conveyor Length            20”                                   20”                                              20”

Dust Collector Capacity             1,100 CFM                       1,800 CFM                                 2,800 CFM

Main Motor                                10 HP, 230V , 3-Ph           15 HP, 230V / 460V, 3-Ph         30 HP, 230V / 460V, 3-Ph

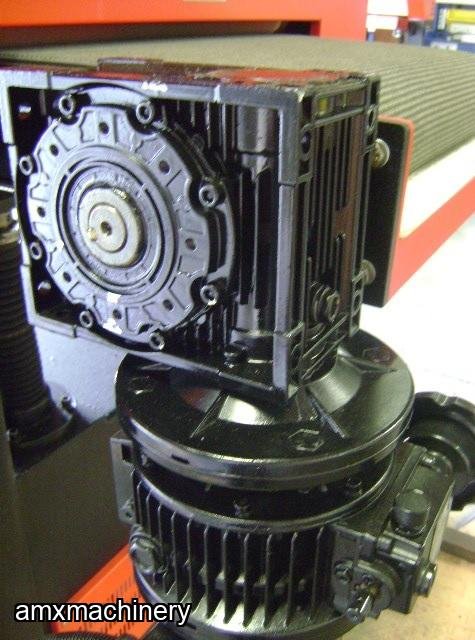

Conveyor Motor                         1 HP, 230V ,  3-Ph           1.5 HP, 230V / 460V,3-Ph           3 HP, 230V / 460V,3-Ph

Table Lifting Motor                     1 HP, 230V,  3-Ph             1 HP, 230V / 460V, 3-Ph             3 HP, 230V / 460V, 3-Ph

Net Weight, approx.                   2,950 LBS                         4,650 LBS                                   6,650 LBS

Machine Dimensions, LxWxH    55” x 63” x 69”                  76” x 88” x 81”                             89” x 98” x 93”

Video de la maquina funcionando: https://vimeo.com/185731014

Standard Features:

• Abrasive belt size: 52” x 86”

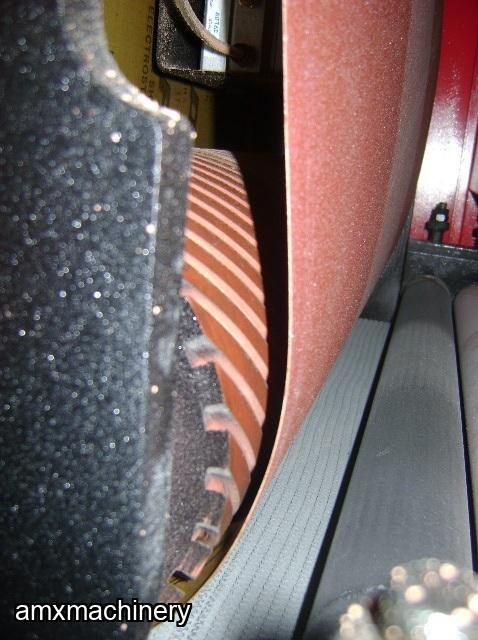

• 10” diameter heavy duty drum for perfect graining

• 3-1/2” wide opening for max. workpiece thickness 6”

• Motorized Table Lift with LED display

• Variable Speed Conveyor

• Conveyor Forward & Reverse

• Belt Safety Over travel Switches

• Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts

• 4-Jackscrew Table Support

• Double In feed & Out feed Pinch Rolls with protective guards

• Conveyor Belt Tracking System

• Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

• Table Height Digital Readout

• Load Meter indicates percentage of full motor loads

• Belt change door electrically interlocked for safety purpose

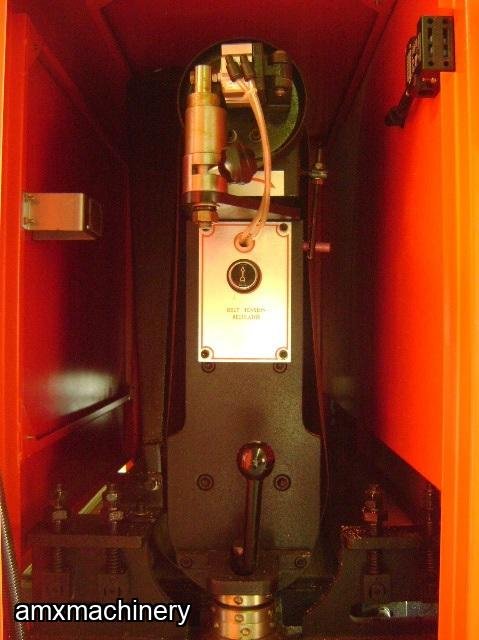

• Air tensioning of belt for accurate tensioning & compensation of belt stretch

• Quick release sanding head support for fast belt change

• Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area

• Emergency stops from almost any point

• Noise level bellows 82 dba

• Operation manual, control tags, danger signs, and warning labels.

• 208/230V, 3-Phase ( 440/460V is available )

• One year Industrial Warranty for parts.

 NOT

• Total amps 120 @ 230/3/60

• COMPRESSED AIR REQUIRED:  2 CFM @ 90 PSI

CAUTION:  If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.

OPTIONAL:  WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan.  Particles sink to the base of the tank where they can easily be removed by raking into a provided container.  Normal tap water is used, there are not filter bags to be changed.   Water level is automatically controlled when unit is connected to a water supply.  All units are equipped with explosion relief door and sound silencer.

^{OPTIONAL ACCESSORIES}

^{Model WDC-FP52 Wet Dust Collector # WDC-FP52, 5HP, 2,500CFM.. ..$ 11,950.00}

^{Heavy Duty Ducting Package # HDDP-5285}
