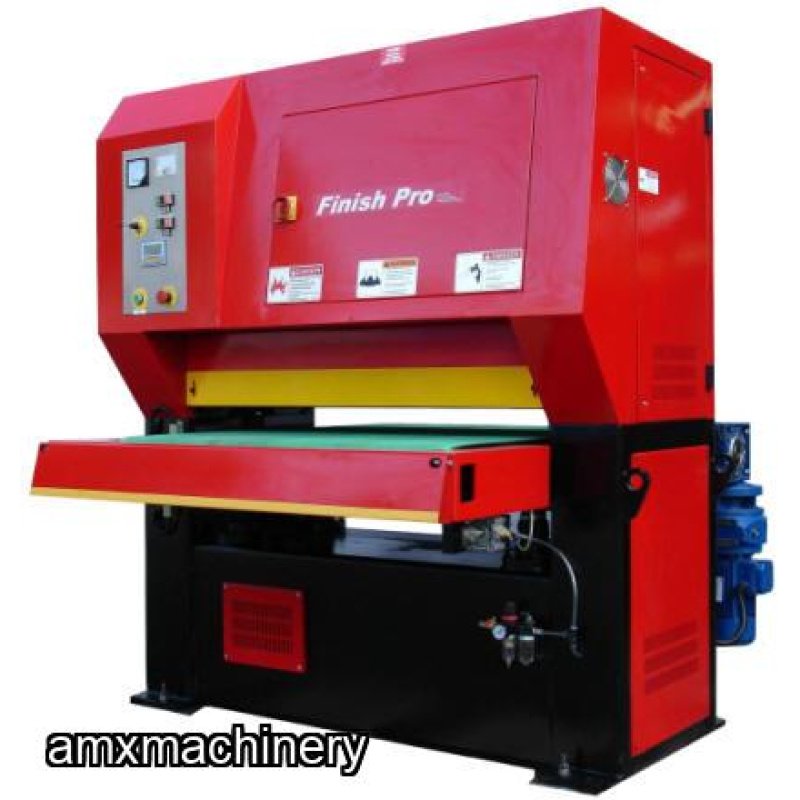

PARTE: 2MA-FP-4075CB – LIJADORA - CALIBRADORA DE METAL – 40” ANCHO - 2 LIJAS

PARTE: 2MA-FP-4075CB – LIJADORA - CALIBRADORA DE METAL – 40” ANCHO - 2 LIJAS

NUEVA CON GARANTIA

Standard Features:

Abrasive belt size: 40” x 75”

Motorized Table Lift

Variable Speed Conveyor, inverter drive

Conveyor Forward & Reverse

Belt Safety Overtravel Switches

Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts

Heavy Duty JackscrewTable Support

Double Infeed & Outfeed Pinch Rolls with protective guards

Conveyor Belt Tracking System

Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

Table Height Digital Readout

Load Meter indicates percentage of full motor loads

Belt change door electrically interlocked for safety purpose

Air tensioning of belt for accurate tensioning & compensation of belt stretch

Quick release sanding head support for fast belt change

Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area

Emergency stops from almost any point

Noise level bellows 82 dba

Operation manual, control tags, danger signs, and warning labels in English on machine

208/230V or 460 Volt, 3-Phase

One year Industrial Warranty for parts

NOTE

Prices are for 208-230 VOLTS

Total amps 130 @ 230/3/60

COMPRESSED AIR REQUIRED:  2 CFM @ 90 PSI

CAUTION:

If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.

OPTIONAL:

WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan.  Particles sink to the base of the tank where they can easily be removed by raking into a provided container.  Normal tap water is used, there are not filter bags to be changed.   Water level is automatically controlled when unit is connected to a water supply.  All units are equipped with explosion relief door and sound silencer.

Specifications:                                                        Model  FP-4075CB

Max. Part Width                                                       40”

Abrasive Belt Size                                                   40” x 75”

Contact Roller Size                                              8” Dia.

Passline Height                                                        34” – 40”

Max. Thickness Capacity                                        6-1/8”

Conveyor Drive Speeds                                        8-40 FPM

Infeed Conveyor Length                                      20”

Dust Collector Capacity                                     3,000 CFM

Motor for first sanding belt head                  15 HP, 230V or 460V, 3-Ph

Motor for second sanding brush head          15 HP, 230V or 460V, 3-Ph

Conveyor Motor                                                     2 HP, 230V or 460V,3-Ph

Table Lifting Motor                                                1 HP, 230V or 460V, 3-Ph

Net Weight, approx.                                                7,650 LBS

Machine Dimensions, LxWxH                                  126” x 98” x 77”

OPTIONAL ACCESSORIES

Model WDC-FP40CC Wet Dust Collector # WDC-FP40CC, 7.5 HP

Heavy Duty Ducting Package # HDDP-4085CC
