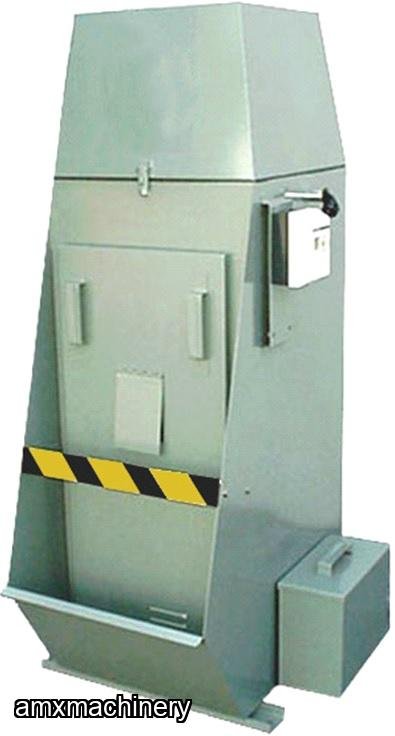

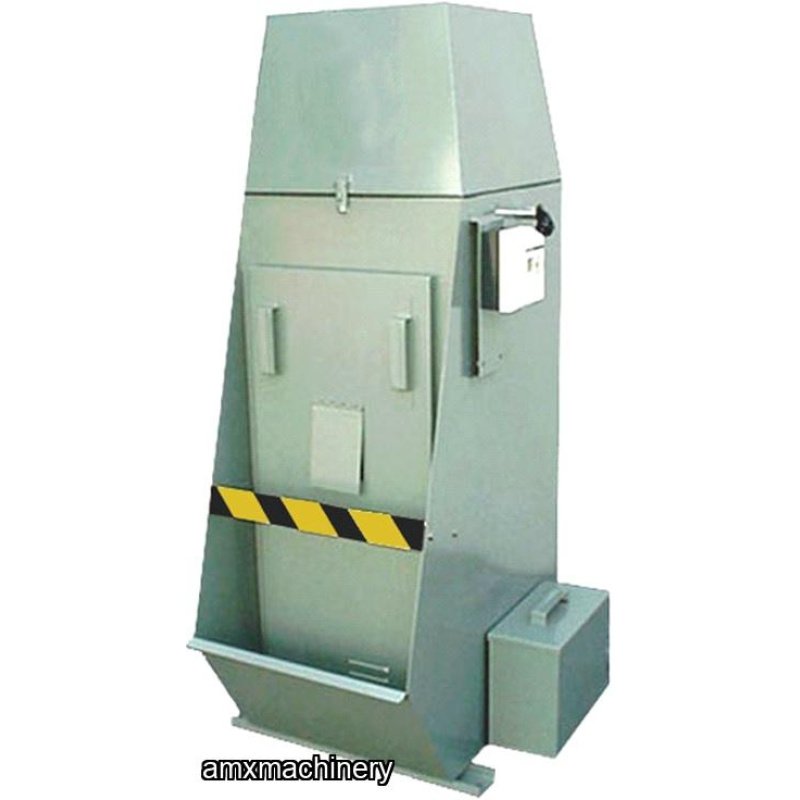

PARTE: 2GM-WDC-FP40 - COLECTOR DE POLVOS PARA METAL - 2,100 CFM - 5 HP

PARTE: 2GM-WDC-FP40 - COLECTOR DE POLVOS PARA METAL - 2,100 CFM - 5 HP

Electrics: 220/440V, 3 PH

2,100 CFM, 5 HP for 2MA-FP-2560 & 2MA-FP-4075 Metal Sanders

Inlet opening: 8"

Wet dust collection systems offer more safe and efficient method for collection of hazardous grinding/sanding/cutting dust generated by a variety of processes.

The CAT wet dust collector offers many superior features.

CABINET - made of welded stainless steel construction

FRONT DOOR - easily removed for maintenance & cleaning and equipped with an explosion relief flap.

MOTOR - T.E.F.C.  208-230/460 volt, 3-phase, 60 Hz.

ELECTRICAL CONTROL - push button motor starter with thermal overloads

IMPELLER - standard, precision balanced, direct coupled to the motor for maximum CFM with minimum vibration (also stainless steel)

INTERNAL INDUCERS - a system of internal spray inducers remove dust particles from air flow and causes them to settle in water tank

SOUND SUPRESSOR - the CAT’s unique motor cover design keeps noise level to a minimum.

AUTOMATIC WATER LEVEL CONTROL - allows for user’s connection to a water supply line for automatic maintenance of proper operating water level.

CLEANING TOOL - made of stainless steel and provided for the easy removal of grinding dust from the water tank.
