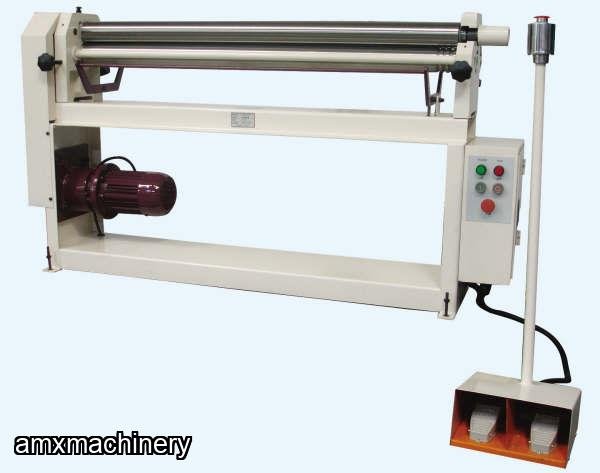

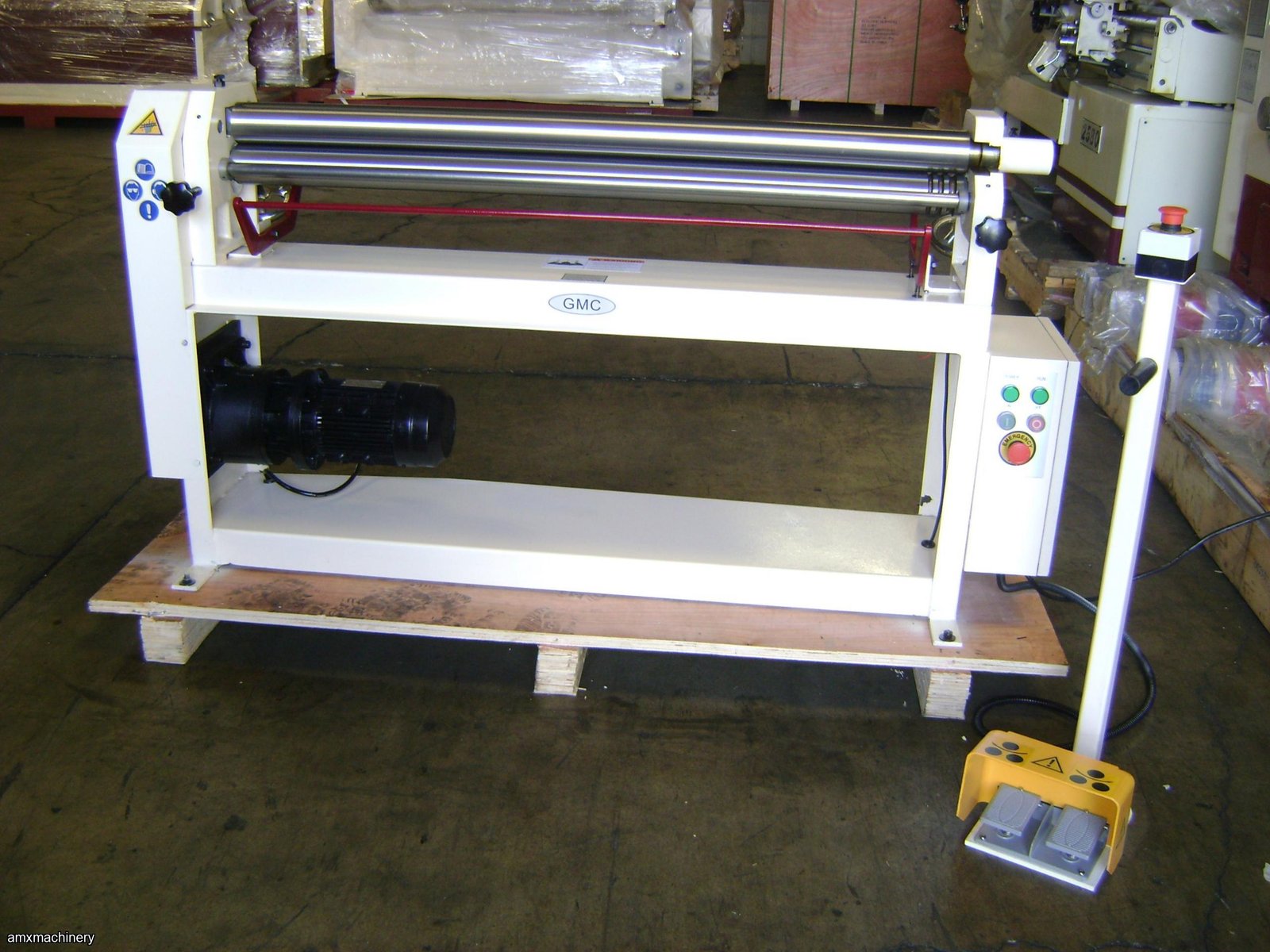

PARTE: 2GM-PSR - ROLADORA ELECTRICA - 50" ANCHO
PARTE: 2GM-PSR-5016 – ROLADORA - 50” x 16GA - 1 HP, 220/440V, 3 PH
PARTE: 2GM-PSR-5016-1PH – ROLADORA - 50” x 16GA - 1.5 HP, 220V, 1 PH
PARTE: 2GM-PSR-5014 – ROLADORA - 50” x 14GA - 1.5 HP, 220/440V, 3 PH
Features:
- ISO 9001 certified
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two Powered driven Rolls
- Precision ground rollers
- 1” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- Top & Bottom rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- One year warranty for parts
Standard Equipment:
- Electrical cabinet
- Removable safety foot pedal
Specifications | PSR-5016 | PSR-5016-1ph | PSR-5014 |
Rolling capacity: mild steel stainless steel min. thickness capacity
| 50” x 16 Ga. 50” x 20 Ga. 50” x 22 Ga | 50” x 16 Ga. 50” x 20 Ga 50” x 22 Ga. | 50” x 14Ga. 50” x 18 Ga. 50” x 22 Ga. |
Rolls size, length x diameter Min. roll bending dia. capacity | 50” x 3” 3-1/2” | 50”x 3” 3-1/2” | 50”x 3” 50”x 3” |
Rolls speed | 201” / min. | 201” / min. | 201” / min. |
Rolls opening | ¼” | ¼” | ¼” |
(3) grooves sizes | 5/16”, 3/8” , ½” | 5/16”, 3/8” , ½” | 5/16”, 3/8” , ½” |
Main motor | 1 HP,220V/440V, 3ph | 1-1/2HP,220V, 1ph | 1-1/2 HP,220V, 3ph |
Net weight | 828 LBS | 828 LBS | 928 LBS |
Machine dimensions, LxWxH | 68”x28”x47” | 68”x28”x47” | 68”x29”x48” |
