Identificador: 97
Abierta
Descripción
PARTE: 2EV-6100 - POSTFORMADORA CONTINUA 2 LADOS - EVANS 6100
220 Volt, 3 Ph., 60 Hz., or 380 Volt, 3 Ph., 50 Hz.
17 kw (no air required) Standard work height 37”.
Standard Features:
90 and 180 degree setup
Quick-change 90 and 180 degree roller assembles each side.
Maximum material width 48"
Heaters: Infrared radiant panel (instant on / off)
Foot print: 107”L X 72”W X 44”H, Work height 37”
Maximum Feed rate 10 feet per minute.
Feed motor: ½ hp variable speed DC drive.
Crated weight 2400 LBS. Shipping dimensions 115” long X 80” wide X 55” high.
Options:
2 High Frequency motors for trimming 90 degree bends
Slitter motor with blade (for counter top operations)
Bevel shape set-up part # 6100-01 (both sides)
40” work height add
--------------------------------------------------------------------------------------------------------------
Proven a perfect fit around the world, in all size operations.
- Quick change 90 & 180 degree forming rollers
- Energy saving instant on-off radiant heater
- Optional high frequency floating trimmers
Double sided, single stage, automatic post former. It gives you the ability to postform a variety of laminate materials around profiled edges.
This machine is ideal for post forming kitchen counter tops, desk tops, cabinet doors and drawer fronts. The Model 6100 Feed Through Post Former gives you precise 90 degree, 180 degree, or a combination of 90 degree/180 degree on both sides of your product at the same time.
The 6100 is a flow through post former with options for trimming and a slitting saw for cutting a backsplash. Compare the price and features of the 6100 Feed Through Post Former with any other automatic post former.
Technical Specifications:
Feed Motor: 1/2 HP, DC
Electrical: 220 VAC 3 Phase 60 HZ
Power Consumption: 13 - 17 KW
90o Laminate: 3/4HP per Station
Floating Trimmers (optional)
Slitter Saw Motor (optional): 2 HP
Material Length: Min. 48”
Material Width: Max. 48.5”
- Without Saw: Min. 8”
- With Saw: Min. 16.5”
Material Thickness Min. 0.63” Max. 1.75”
Heater: Infrared Radiant Panel
Feed Speed: Up to 10 Ft/Min.

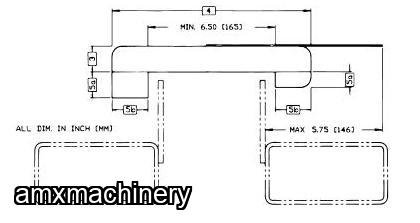

Build-Down: 90 - 180 degres
- Thickness Max. 1.25” Max. 0.75”
- Depth Max 1.75” Max. 1.75”
Machine Length 107”
w/o infeed & outfeed fence
Working Height: 37”
Shipping Weight: 2100 LBS
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12545 - LINEA DE PINTURA UV - SUPERFICI MINI PLUS
PARTE: 12545 - LINEA DE
PINTURA UV - SUPERFICI MINI PLUS
USADA -
MUY BUIENAS CONDICIONESPassline Height: 900 mm
Operating side: RH, as viewed from inlet of line, LH available as a special order.
Workpiece Dimensions (Approx.):
Min. - max. length: 300 mm - 4880 mm (12" - 16')
Min. - max. width: 25 mm - 1300 mm (1" - 51”)
Min. - max. thickness: 3 mm - 90 mm (1/8" - 3-1/2")
Max. weight: 3# per sq. ft
Speeds:
Mechanical speed: 1-3 m/min
Avg. production speed: 2 m/min
Connections:
...
AMXmachinery
PARTE: AMX-10160 - EXTRACTOR DE TUBO - DIAMETRO INTERNO 19-1/2” - MOTOR 3/4 HP
PARTE: AMX-10160 - EXTRACTOR DE TUBO - DIAMETRO
INTERNO 19-1/2” - MOTOR 3/4 HP
USADO - MUY BUENAS CONDICIONES -
TODOS LOS BALEROS NUEVOS
MOTOR 3/4 HP, 220/440V, 3 FASES, 60
HZ, 1500 RPM
DIAMETRO INTERNO: 19-1/2”
DIAMETRO EXTERNO: 22”
MEDIDAS TOTALES: 31” LARGO X 22” ANCHO
X 12” ALTO
CAUDAL: 8,712 M3/HR
HECHO EN MEXICO
AMXmachinery
ASTILLADOR GASOLINA 9 HP
PARTE: 2PT-CSV-3090H – ASTILLADOR A GASOLINA - MOTOR HONDA 9 HPNuevo con garantíaAstilla ramas hasta 3” diámetroRotor Uso Rudo para volumenBueno para limpiar desperdicios de madera, podas, etc.Peso: 79 kgVideo de la maquina funcionando Video 1
AMXmachinery
LIMPIADORA DE TABLAS PARA TARIMAS – FROEDGE 450
PARTE # 11904 – LIMPIADORA DE TABLAS PARA TARIMAS – FROEDGE 450Good conditionElectric 230 volt, 60 cycle, 3 phaseUsed to clean dust of resawn boards prior to pallet assembly.Working dimensions: Up to 8" wide, up to 6" thick and up to 8' in length.Infeed: Infeed belt conveyor 6" wide.Powered brushes to clean the boards top and bottom.Powered by 5 HP motor.Shipping 8 (length) x 5 (width) x 5 (height)Weight 1800 lbs
