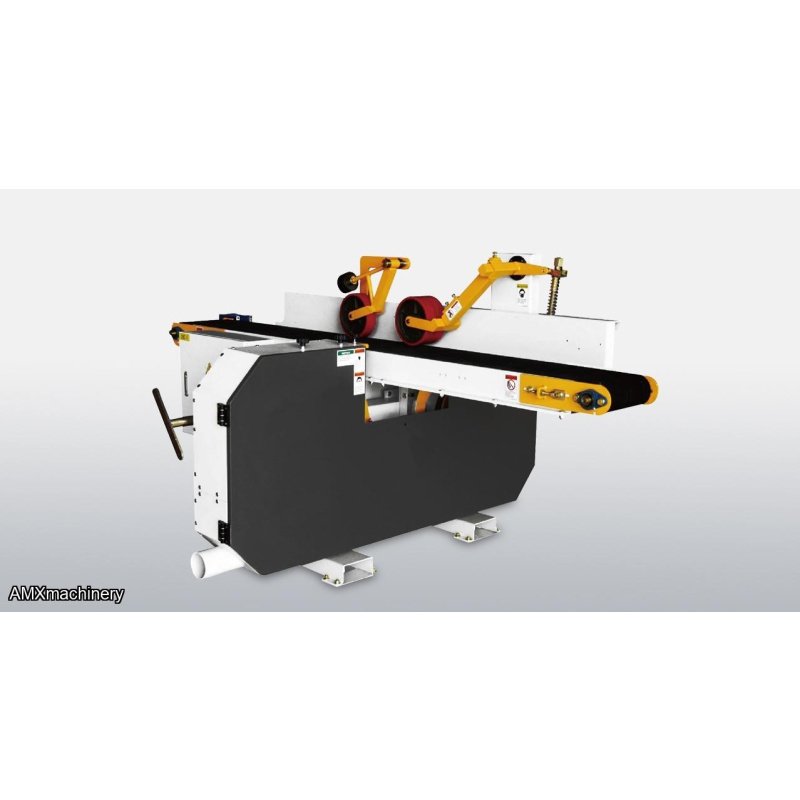

PARTE: 2CK-HR12E - REASERRADORA HORIZONTAL - 1 BANDA - 20 HP – 11.8” ANCHO X 4.92” ESPESOR
AMXmachinery1
Description
PARTE: 2CK-HR12E - REASERRADORA HORIZONTAL - 1 BANDA - 20 HP – 11.8” ANCHO X 4.92” ESPESOR
NUEVA CON GARANTIA
2 OPCIONES: 230/1/60 - 460/3/60
Can produce a cut up to 11.8” wide and 4.92” thick. Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material. The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. The user-friendly controls and operation make will allow your resawing operation to get up to speed quickly. It is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.
- Powerful 20HP saw motor capable of cutting through virtually any wood species with ease
- Solid steel 28” diameter saw wheels capable of running a 1” wide, thin kerf blade for maximum cut accuracy and material yield
- Variable feed speed by inverter to ensure optimum cut accuracy and blade life
- Simple operation and low price point allowing for the maximum return on your investment
- Adjustable sandwich style guide system ensures the blades run true and cut straight
- Blade lubrication system ensure the blade runs cool for an optimum blade life
- Single head horizontal configuration with

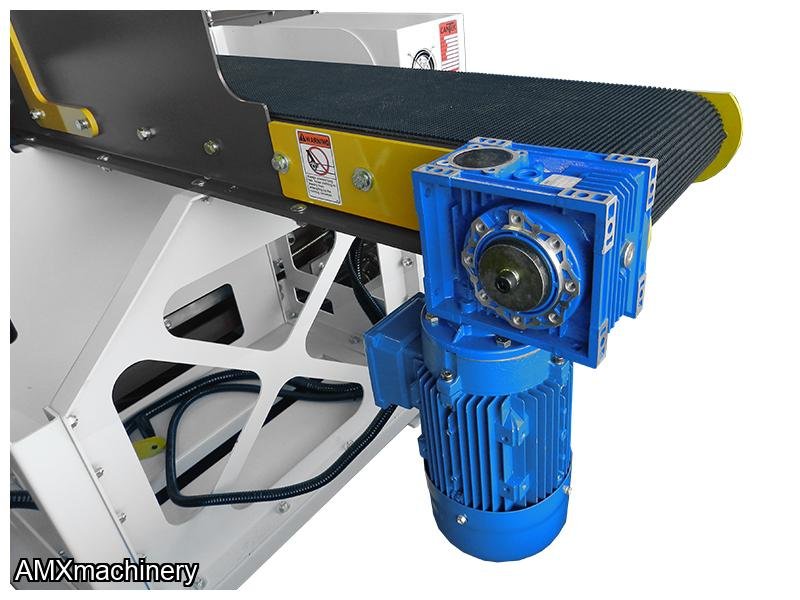

- Variable feed speed by inverter from 16 – 82 FPM
- Heavy duty solid steel saw wheels are precision ground and dynamically balanced

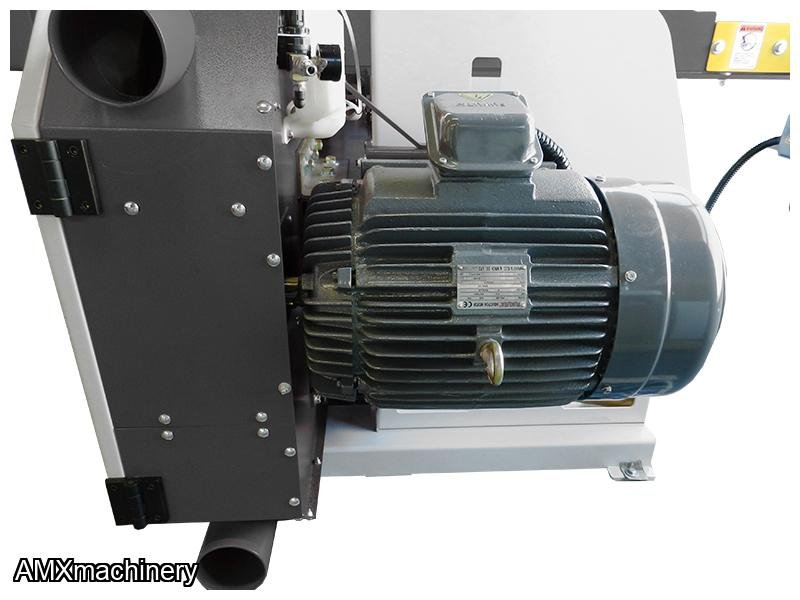

- Powerful 20HP saw wheel motor
- Manual saw wheel elevation
- Both saw blade housing elevation screws are linked by a shaft to ensure synchronized movement and precisely level adjustment
- Adjustable sandwich style guide system
- Manual saw blade tension adjustment by handle
- Auto blade lubrication system
- (2) spring loaded hold down rollers ensure material is held firmly on the conveyor belt during material resawing
- Standard electrics are 230/3/60 to UL/CSA Standards
|
INCH
|
METRIC
|
|
|
Max. Input board size (W x T) |
11.8” x 9.8” |
300 x 250mm |
|
Distance from blade to conveyor table |
0.15” – 4.92” (4 – 125mm) |
4 – 125mm |
|
Conveyor belt size |
11.2” x 215.3” |
285 x 5470mm |
|
Diameter of saw wheel |
28” (dia) x 1” (W) |
711mm (dia) x 24.5mm (W) |
|
Variable feed speed |
16 – 82 FPM |
5 – 25 m/min |
|
Saw blade dimensions |
168” (L) x 1” |
4625 x 24.5mm |
|
Main motor |
20 HP
|
|
|
Tolerance |
+/- 0.0039″ |
+/- 0.1mm |
|
Feed motor |
2 HP
|
|
|
Electrics |
230/3/60 = 60.8 Full Load Amps
|
|
|
Dust Hood |
4” x 4 pcs. |
100mm x 4 pcs |
|
Machine with Conveyor weight |
2464 lbs |
1120 kgs |
|
Machine shipping dimensions |
86” x 45” x 45” |
2180 x 1140 x 1140mm |
|
Machine shipping weight |
1980 lbs |
900 kgs |
|
Conveyor shipping dimensions |
113” x 22” x 28” |
2870 x 560 x 700mm |
|
Conveyor shipping weight |
550 lbs |
250 kgs |
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
