The U-400 has been designed for ease of operation and is particularly well suited for joining large frames up to 5 ½” (140mm) in width.

Supplied with a tilting floor stand, the machine can be operated from the front or back and has a single stage pneumatic foot pedal that activates the Horizontal Clamp, securing moulding during the joining process.

After the framer sets the two position stops for measuring the max distance between strokes, a dual function hand lever is then used to position and actuate both the Vertical Mould Holding Clamp and the V-Nail driver inserting V-Nails anywhere along the pre-set stroke distance.

A key operating feature for the U-400 allows the operator to quickly change V-Nail mm size using an interchangeable metal magazine channel. Operator easily accesses the interchangeable channel from the rear of the machine to load the appropriate V-Nail size. This feature eliminates the added purchased cost of plastic nail cartridges.

Unique Performance Features

Handles up to 5 ½ ” (140mm) wide moulding – Unique competitive advantage over other industry frame joiners

Designed with “interchangeable channel magazines” allowing operator to quickly change V-Nail sizes

Operator controlled arm for left or right operations – allows framer to accurately position the Nail Head for inserting or stacking V-Nails anywhere along the frame joint

Uses both a vertical and horizontal clamping method

Adjustable working table height for operator comfort

Easy table tilt adjustment

Join either from back or front of machine

Frame Joining Capabilities

Moulding Width (min to max):  ¼” up to 5 ½” (6-140 mm)

Moulding Height (min to max): ¼” up to 3 ¼” (6-80 mm)

Max Distance Between V-Nails (stroke): 7 7/8” (200 mm)

Pre-set V-Nail Position Stops: Multiple

V-Nail Sizes: 5, 7,10,12,15 mm (SW-HW-HDF)

V-Nail Channel Capacity: 220 V-Nails/channel

U-400 Purchase Package

(1) “Multi-Sized” Nail Head

(1) 7mm Channel Magazine

(1) 10mm Channel Magazine

(1) 12mm Channel Magazine

(1) Single Vertical Positive Placement Clamp

(1) Single Metal Pressure Plate

(1) Magnetic Base for Clamping System

(1) Blue Rubber Pad (SW)

(1) Yellow Rubber Pad (SW)

(1) Black Rubber Pad (SW)

(1) Round Pressure Plate - Felt

(1) Adjustable Fence - 2 Knobs

(1) Front Horizontal Clamp

(1) 4mm Allen Wrench

(1) 5mm Allen wrench

(1) 6mm Allen wrench

(4) Machine base levelers

(1) Floor Stand

(1) Machine Manual

Machine Dimensions & Weight

Length: 600mm (23 3/4")

Width: 640mm (25 ¼”)

Height: 1350mm (53")

Weight: 90 kg (198lbs.)

Power Requirements

Compressed Air 4NI at 5 Bar

Options

Floor Stand for U‐400 (VN144)

Multi‐Sized Nail Head

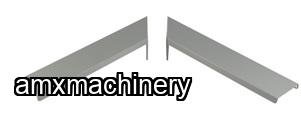

Metal Extension Wings for U‐400 (VN144/VN144S)

15mm Channel Magazine
