PARTE: 12508 - CENTRO DE MAQUINADO VERTICAL – CNC – HAAS EC-550

PARTE: 12508 - CENTRO DE MAQUINADO VERTICAL – CNC – HAAS EC-550

USADO – BUENAS CONDICIONES

2008 HAAS EC-550

FULL 4TH AXIS, 10,000 RPM SPINDLE

THRU SPINDLE COOLANT, RENISHAW PROBING

CAT 50, 72 TOOL POSITIONS

IN PLANT, UNDER POWER, AVAILABLE IMMEDIATELY

Specifications:

PALLET WIDTH            21.6"

PALLET LENGTH         21.6"

PALLET INDEXING      FULL 4TH

X-AXIS TRAVEL           30"

Y-AXIS TRAVEL           34"

Z-AXIS TRAVEL           32"

SPINDLE SPEED          10,000 RPM

SPINDLE MOTOR         45 hp

SPINDLE TAPER          CAT 50

TOOL POSITIONS (ATC) 72

Equipped With:

FULL 4TH AXIS

HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

72-POSITION TOOL CHANGER

10,000 RPM SPINDLE (CAT50)

CHIP CONVEYOR

REMOTE JOG HANDLE

PROGRAMMABLE COOLANT

SECOND HOME POSITION

COORDINATE ROTATION & SCALING

SPINDLE ORIENTATION

RIGID TAPPING

QUICK CODE

MACROS

USB PORT

EARLY POWER-FAILURE DETECTION MODULE

** MACHINE RUNS (1) SHIFT A DAY

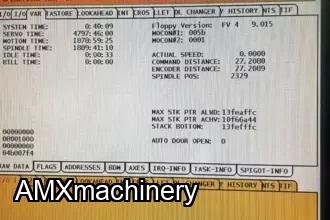

** HOURS SCREEN IN THE CONTROL HAS BEEN RESET (SEE PHOTO)

** FULL REPLACEMENT COST, AS EQUIPPED - $350,000

** MACHINE CUT PRIMARILY BRASS & SOME ALUMINUM AND STEEL

** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

** MACHINE AVAILABLE TO BE REMOVED IN EARLY DECEMBER
