ID: 967
Open

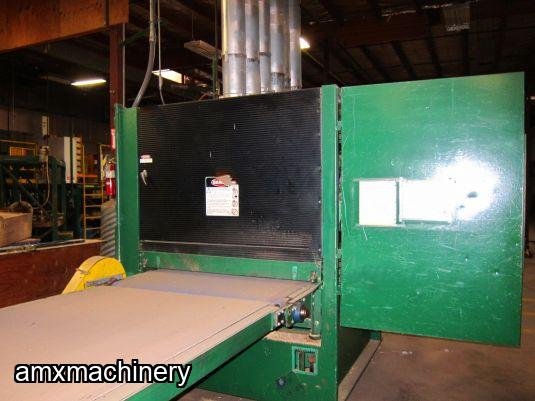

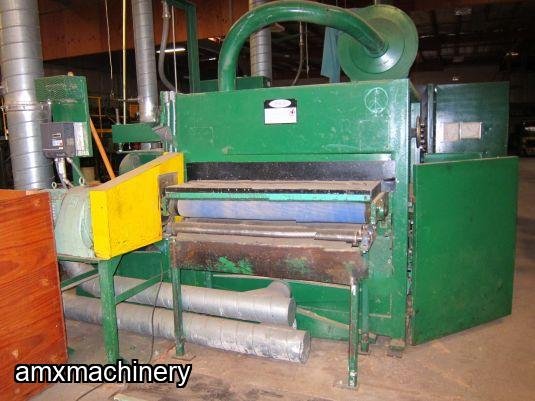

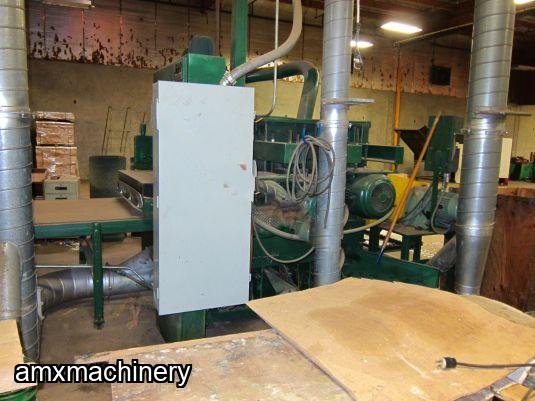

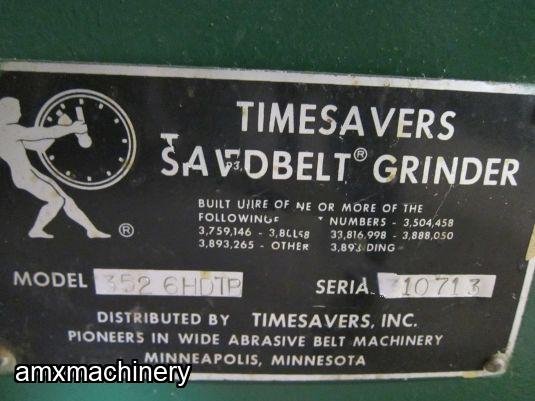

PARTE: 12131 – LIJADORA BANDA ANCHA – SUPERIOR E INFERIOR – 52” ANCHO - TIMESAVERS
AMXmachinery
Description
PARTE: 12131 – LIJADORA BANDA ANCHA – SUPERIOR E INFERIOR – 52” ANCHO - TIMESAVERS
USADA – EN BUENAS CONDICIONES
3 lijas superiores y 3 lijas inferiores
Constant passline (38” height).
This unit is ideal for sanding heavy panels
Bottom Head first:
1st Head 60 HP 80/70 durometer Contact Drum,
2nd head 50 HP 80/70 durometer contact drum,
3rd head 40 HP Platen
96” long Conveyor between machines driven by the top head machine
Top Head
1st Head 60 HP 80/70 durometer Contact Drum,
2nd head 50 HP 80/70 durometer contact drum,
3rd head 40 HP Platen
7-1/2 HP feed belt drives
Motors are TEFC 230/460 volt motors, piping to main line, spare contact rolls, sand paper, and hydraulic power unit.
Appears in excellent condition. Machine was running when it was removed from service and has been in dry storage.
