Identificador: 249
Abierta
Descripción

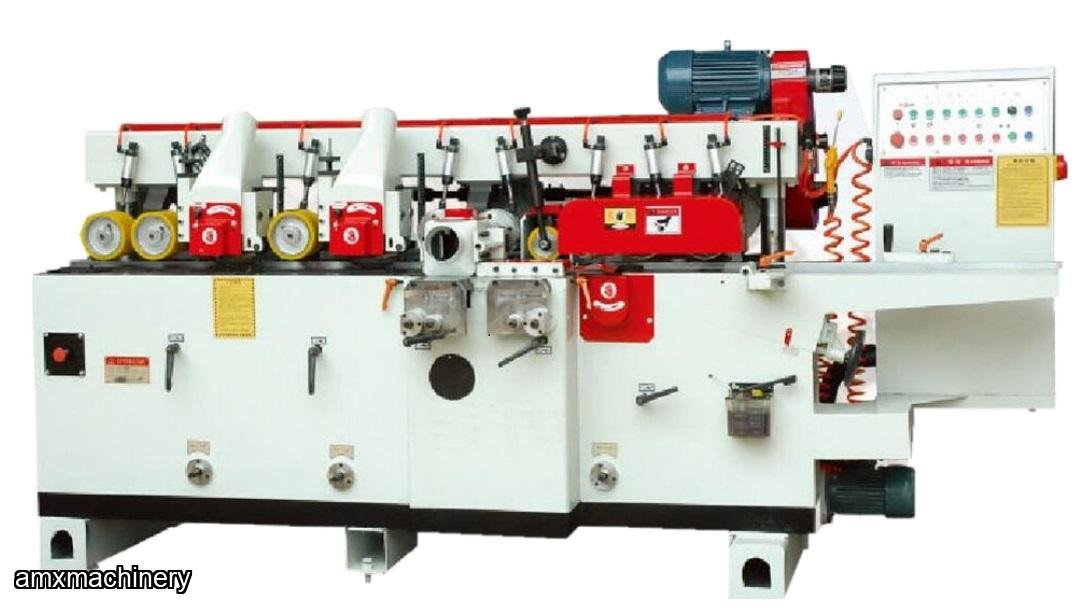

PARTE # 3QD-MB5013DS - MOLDURADORA 5 CABEZALES - 20-130 MM ANCHO
PARTE # 3QDMB5016DS - MOLDURADORA 5 CABEZALES - 20-160 MM ANCHO
PARTE # 3QD-MB5018DS - MOLDURADORA 5 CABEZALES - 20-180 MM ANCHO
PARTE # 3QD-MB5023DS - MOLDURADORA 5 CABEZALES - 20-230 MM ANCHO
FEATURES
Model | 3QD-MB5013DS | 3QD-MB5016DS | 3QD-MB5018DS | 3QD-MB5023DS |
Planing width | 20-130mm | 20-160mm | 20-180mm | 20-230mm |
Planing thickness | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
Feeding speed | 10-30m/min | 10-30m/min | 10-30m/min | 10-30m/min |
Spindle speed | 6000rpm | 6000rpm | 6000rpm | 6000rpm |
Spindle diameter | Φ40mm | Φ40mm | Φ40mm | Φ40mm |
Air Pressure | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa |
Up feed WheelΦ | Φ140mm | Φ140mm | Φ140mm | Φ140mm |
Down feed WheelΦ | Φ100mm | Φ100mm | Φ100mm | Φ100mm |
First up cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Second up cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Down cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Left cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
Right cutter Φ | Φ80mm-Φ110mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm | Φ80mm-Φ140mm |
First Up cutter motor | 4KW | 5.5KW | 7.5KW | 7.5KW |
Second Up cutter motor | 4KW | 5.5KW | 7.5KW | 7.5KW |
Down cutter motor | 3KW | 4KW | 4KW | 4KW |
Left cutter motor | 3KW | 4KW | 4KW | 4KW |
Right cutter motor | 3KW | 4KW | 4KW | 4KW |
Beam Lifting motor | 0.75 KW | 0.75 KW | 0.75 KW | 0.75 KW |
Feeding motor | 2.2 KW | 2.2KW | 2.2KW | 2.2KW |
Total power | 19.95KW | 25.95KW | 29.95KW | 29.95KW |
Overall dimension | 2950*1300*1600mm | 3600*1400*1650mm | 3600*1550*1650mm | 3600*1700*1600mm |
Weight | 1500kg | 1600kg | 1900kg | 2000kg |
